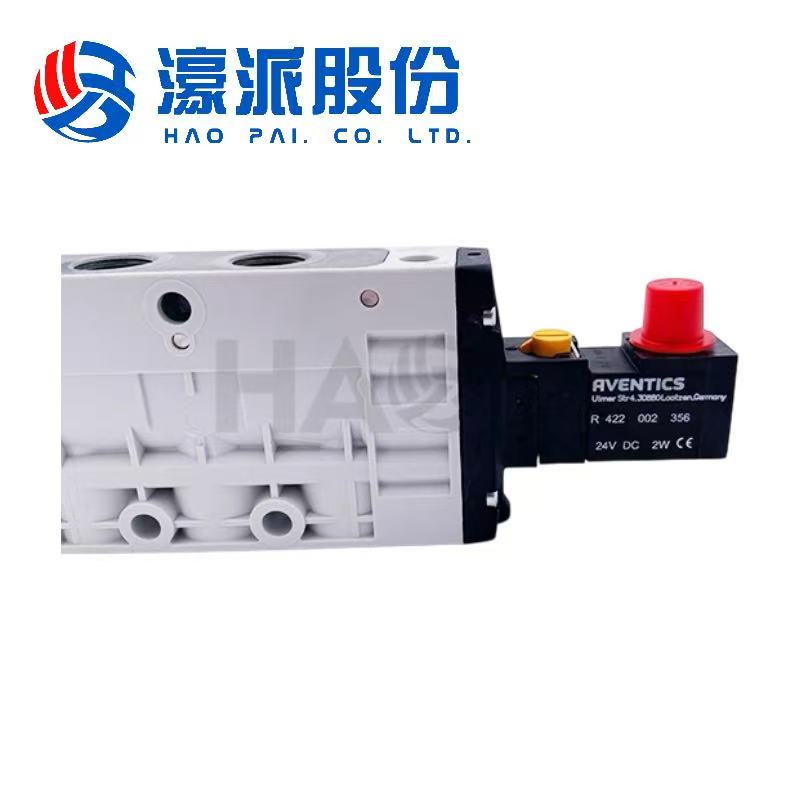

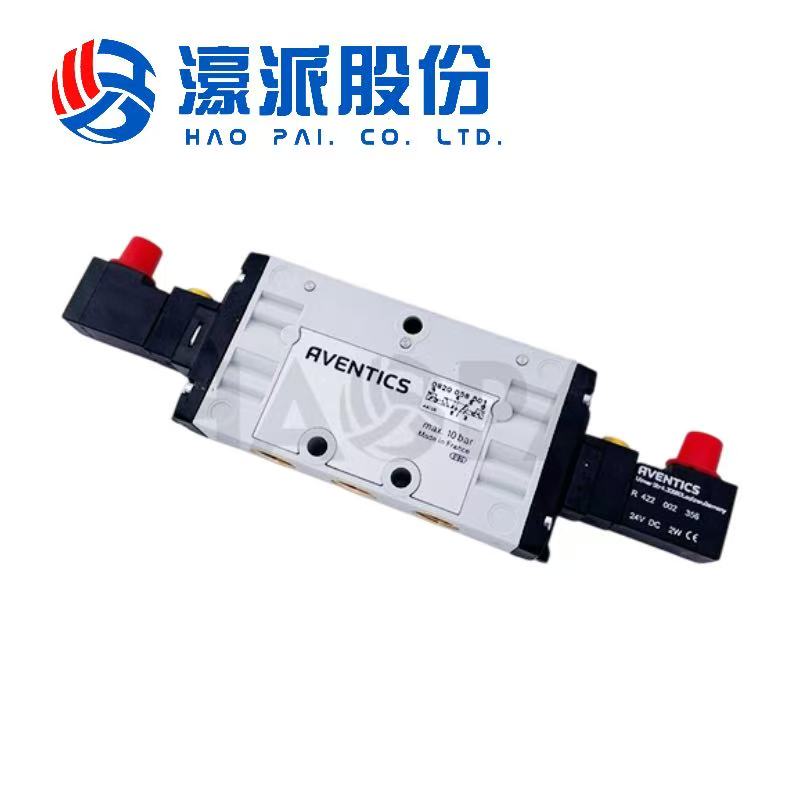

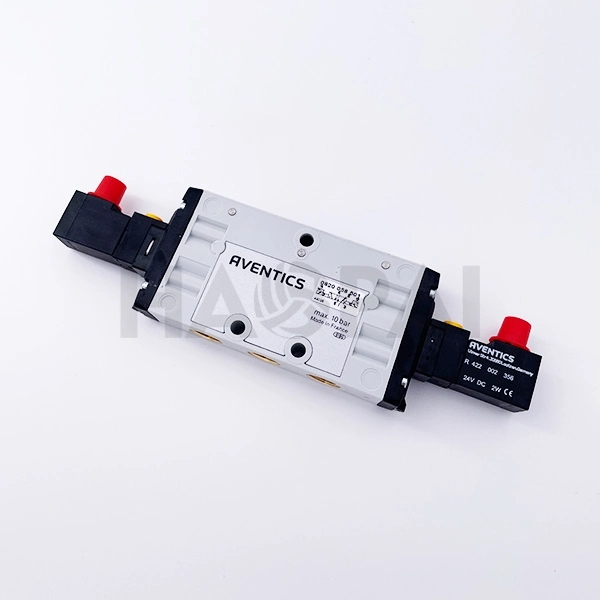

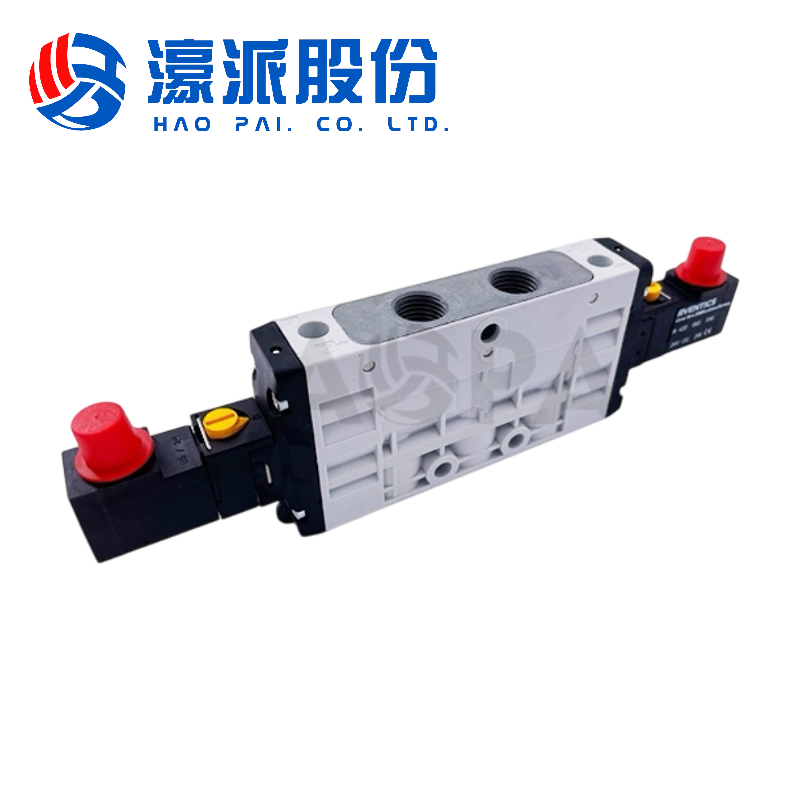

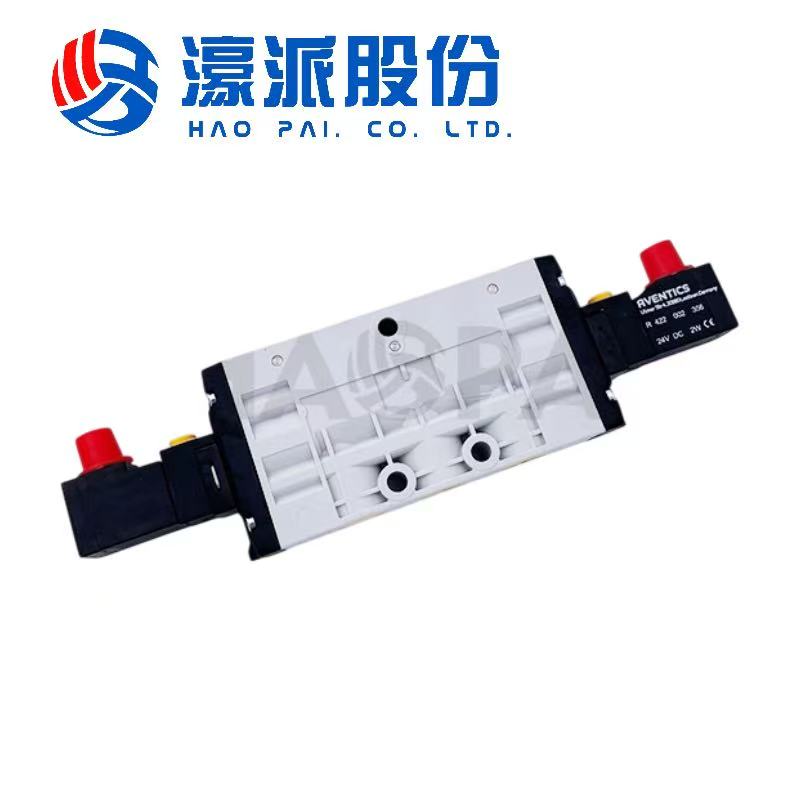

4011041628 Homag Solenoid Operated Air Control Valve

• 1.xceptional Response Speed & Control Precision

• Highlight: Utilizes an electromagnetic pilot control principle. A small current drives the solenoid, which pilots a small air circuit. This pilot air then actuates the main spool valve to open or close the large main air flow.

• Key Benefits:

• Rapid Response: Electromagnetic actuation is extremely fast, far surpassing purely pneumatic mechanical valves, enabling millisecond-level response for timely brake system action.

• Precise Modulation: By modulating the input current signal (e.g., via PWM - Pulse Width Modulation), it allows for linear, progressive, and highly precise control of the output air pressure. This enables everything from gentle to full emergency braking.

•


• 2.Low Power Consumption & High Reliability

• Highlight: As a pilot valve, its solenoid coil requires only a very small operating current (typically <1A).

• Key Benefits:

• Energy Efficient: Reduces load on the vehicle's electrical system, which is crucial for electric and hybrid commercial vehicles.

• Low Heat Generation: Low power consumption minimizes coil heating, extending the life of the coil insulation and the overall valve.

• High Reliability: The simple electromagnetic actuation mechanism has few moving parts, resulting in low failure rates and high resilience in high-vibration vehicle environments.

•


• 3.Integrated & Modular Design

• Highlight: The valve is designed as a compact, self-contained module, integrating the solenoid coil, pilot air passages, and often filtration and protection features.

• Key Benefits:

• Space-Saving: Easy to install and package within the space-constrained under-chassis area of a vehicle.

• Ease of Maintenance: Typically allows for quick and easy replacement as a unit, minimizing downtime and service costs.

• Enhanced Sealing: The integrated design reduces the number of external connections, lowering the potential points for air leaks.

•


• 4.Robust Environmental Durability

• Highlight: Engineered to meet stringent automotive standards, offering excellent resistance to harsh operating conditions.

• Key Benefits:

• Wide Operating Temperature Range: Capable of stable performance across extreme temperatures (e.g., -40°C to +85°C or higher).

• High IP Rating: Typically features a high Ingress Protection rating (e.g., IP6K9K), protecting against high-pressure water jets and dust ingress.

• High Vibration & Shock Resistance: Designed specifically to withstand the harsh vibrations and shocks of commercial vehicle operation.

• Corrosion Resistance: Valve body and critical components are made with corrosion-resistant materials or treatments, suitable for exposure to rain, snow, and road salts.

With its core features including precise flow control (±1% adjustment accuracy), millisecond-level response speed, wide operating pressure range of 2-10 bar, and long service life of ≥1,000,000 cycles, this electromagnetically operated air control valve is widely suitable for the needs of pneumatic systems in various fields such as automated industry and mechanical manufacturing. The specific application scenarios are as follows:

Pneumatic Auxiliary System of Machine Tools

In the pneumatic fixtures and chip cleaning systems of CNC lathes and machining centers, this valve can control the clamping/releasing of fixtures (adapting to the operating pressure of 2-10 bar to meet the clamping force requirements of different workpieces) and the start-stop of pneumatic chip blowing devices. The rapid response feature can synchronize with the machine tool processing rhythm, avoiding the impact on processing efficiency due to fixture action delays. The stainless steel valve core is oil-resistant and wear-resistant, which can adapt to the oil-polluted environment of machine tool workshops.

The core performance of the solenoid valve is "precise and stable", meeting the needs of industrial-level control, the practical functions are "complete but not mixed", reducing application and maintenance costs, and the scene coverage is "wide and accurate", adapting to the core needs of multiple industries.
