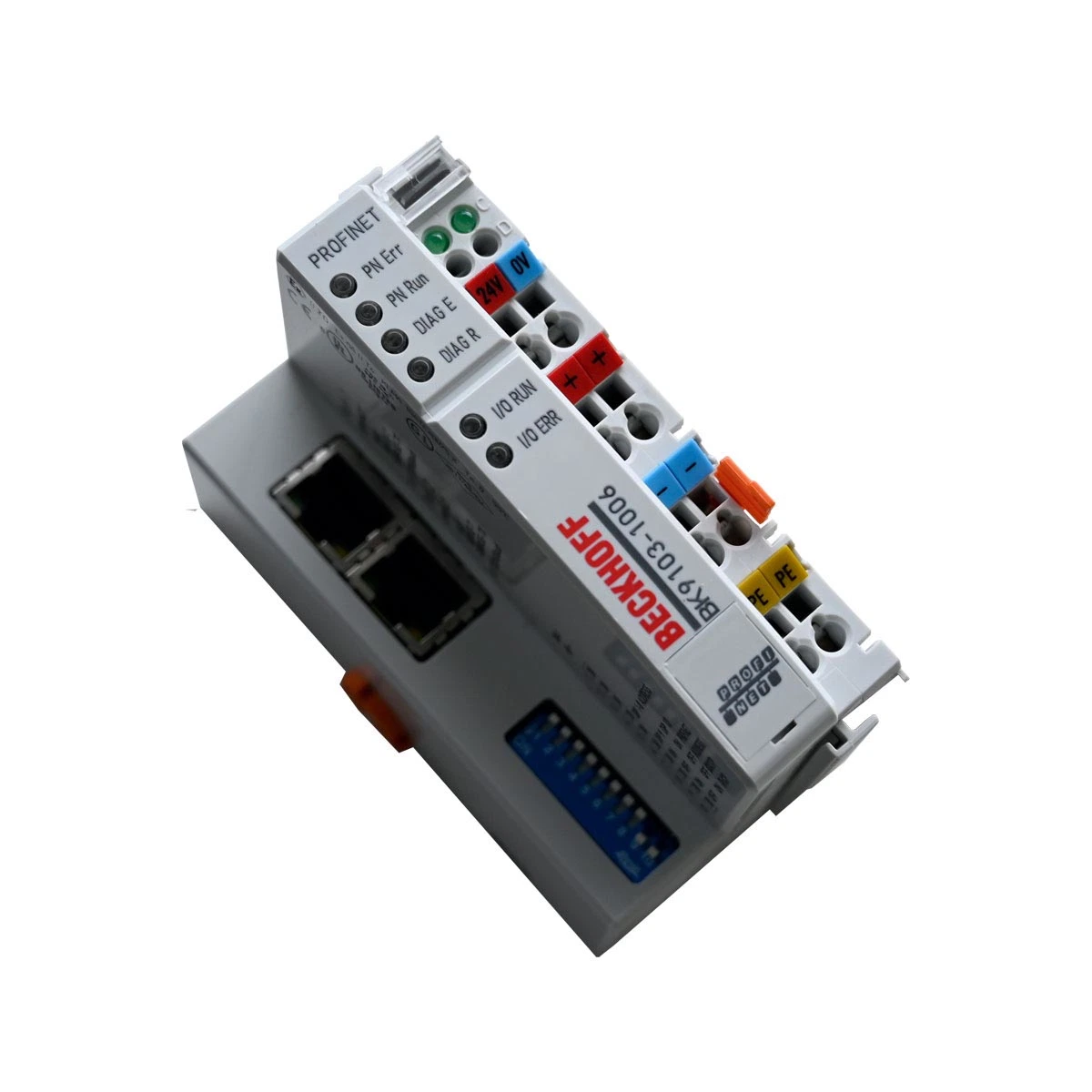

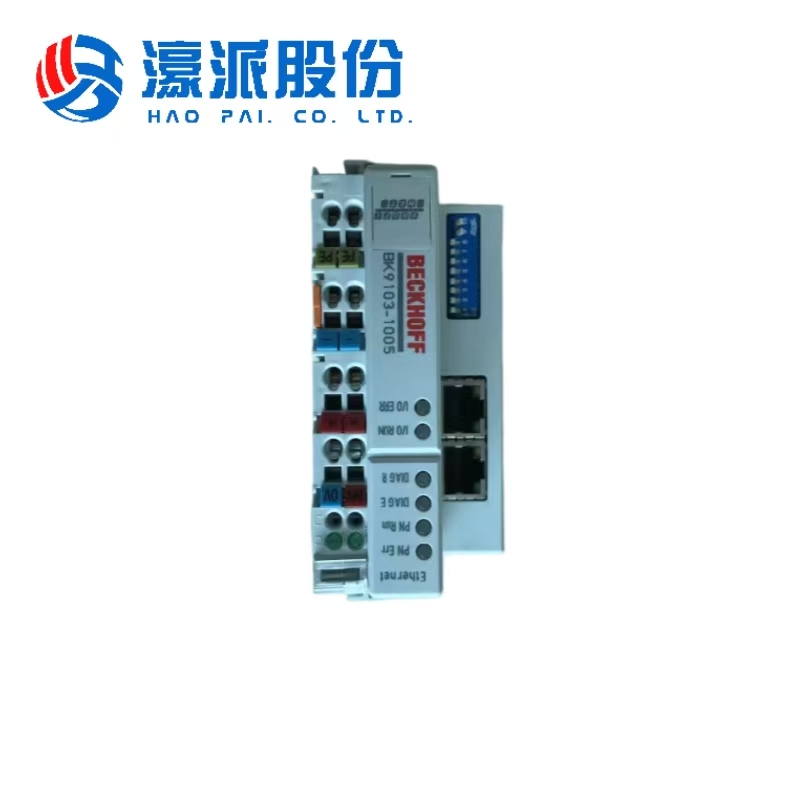

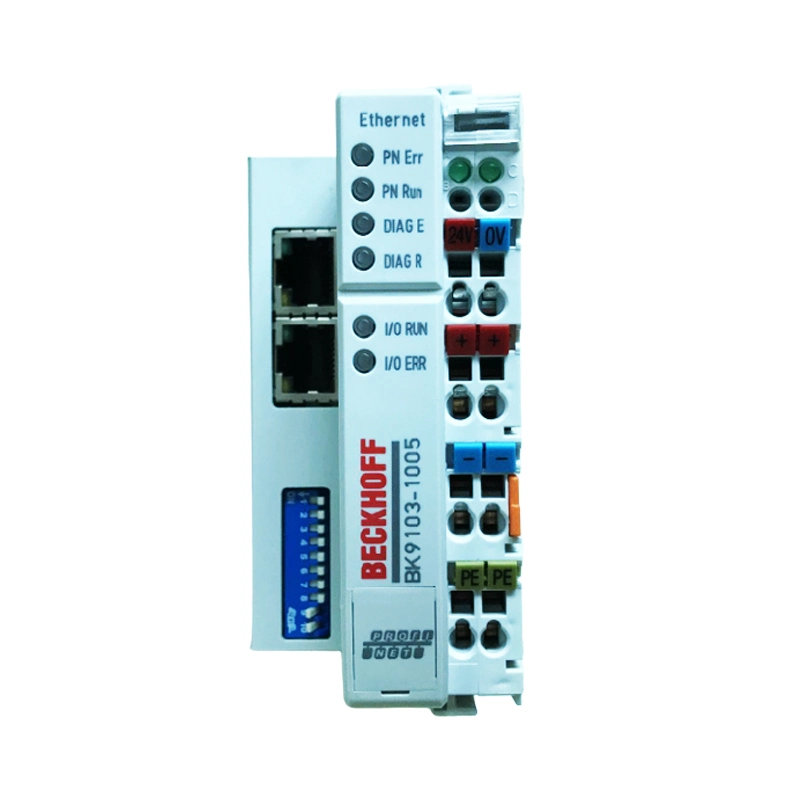

4086050725 Homag Bk9103-1006 Beckhoff Ethercat Bus Coupling Coupler

1.Flexible and efficient network communication capabilities

The BK9103-1006 supports 10 Mbit/s and 100 Mbit/s dual-rate Ethernet, adapting to industrial scenarios with different bandwidth requirements. It has a built-in 3-port switch, which can directly construct a line topology. Compared with the traditional star topology, it significantly reduces the number of wires and construction costs. At the same time, the maximum distance between two couplers is up to 100 m, and it supports cascading of 20 units, easily meeting the equipment connection needs of long-distance and large-range applications. In addition, the IP address configuration method is flexible: it not only supports manual setting via DIP switches (with adjustable offset to a freely selected starting address) but also can automatically obtain an address in a DHCP network environment, simplifying the network deployment process.

2.Intelligent and convenient system integration features

This product is equipped with an intelligent terminal module identification function, which can automatically identify the model and parameters of the connected terminal modules without manual intervention. At the same time, it can automatically assign the input and output signals of the terminals to the corresponding words in the process image, eliminating the tedious operation of manually mapping I/O points, greatly shortening the system commissioning time and improving integration efficiency. Whether building a system for the first time or expanding terminal modules in the later stage, there is no need to reconfigure complex settings, reducing the operation threshold for technical personnel.

3.Stable and reliable industrial-grade performance

The BK9103-1006 is designed in strict accordance with industrial-grade standards. It has an electrical isolation of 500 V rms (between power contacts/power voltage/fieldbus), which effectively resists electrical interference and ensures stable signal transmission. The operating temperature range covers 0…+55 °C, and the storage temperature range reaches -25…+85 °C. At the same time, it can withstand a certain degree of vibration and shock (complying with EN 60068-2-6/EN 60068-2-27/29 standards), adapting to complex and harsh industrial environments such as factory workshops and outdoor control cabinets. In addition, the product has a protection class of IP 20, which can prevent the intrusion of solid foreign objects with a diameter greater than 12.5 mm and protect the safety of internal components.

4.Highly adaptable power supply and expansion design

The product adopts a 24 V DC wide-voltage power supply design, allowing a voltage fluctuation range of -15%/+20%, which adapts to the common power voltage fluctuations in industrial sites and avoids equipment failures caused by unstable voltage. The K-Bus supply current reaches 1750 mA, which can provide stable power for multiple terminal modules at the same time, supporting up to 255 K-Bus expansion terminals to meet the I/O expansion needs of automated systems of different scales. The power contacts can withstand a maximum voltage of 24 V DC and a current of 10 A. With the recommended 10 A fuse, the power supply safety and equipment durability are further improved.

Industrial Automation Production Lines

Within industrial automation production lines (e.g., automotive manufacturing, electronic component assembly lines), the BK9103-1006 plays a critical role in equipment connection and data transmission. It connects terminals of industrial sensors (such as proximity sensors for part position detection and pressure sensors for assembly force monitoring) and actuators (like robotic arm control modules and conveyor belt drive units). By enabling real-time data exchange between these devices and the central control system, it ensures precise control of production processes—such as accurate positioning of robotic arms during part assembly and synchronized operation of conveyor belts. This helps improve production efficiency, reduce product defect rates, and support stable, continuous operation of the production line.

Transportation Infrastructure

In transportation infrastructure, the BK9103-1006 is widely used in smart transportation hubs, parking lot management systems, and road traffic control systems. In smart parking lots, it connects terminals of vehicle detection sensors (to identify vehicle entry/exit and parking space occupancy) and barrier gate control units, enabling automated barrier lifting/lowering and real-time update of parking space information. At transportation hubs (e.g., railway stations, airports), it links terminals of passenger flow counting sensors and public area lighting equipment, supporting dynamic adjustment of lighting brightness based on passenger flow and facilitating monitoring of passenger movement. On road traffic facilities, it connects terminals of traffic signal controllers and traffic flow detectors, assisting in optimizing traffic signal timing and improving road traffic efficiency.
