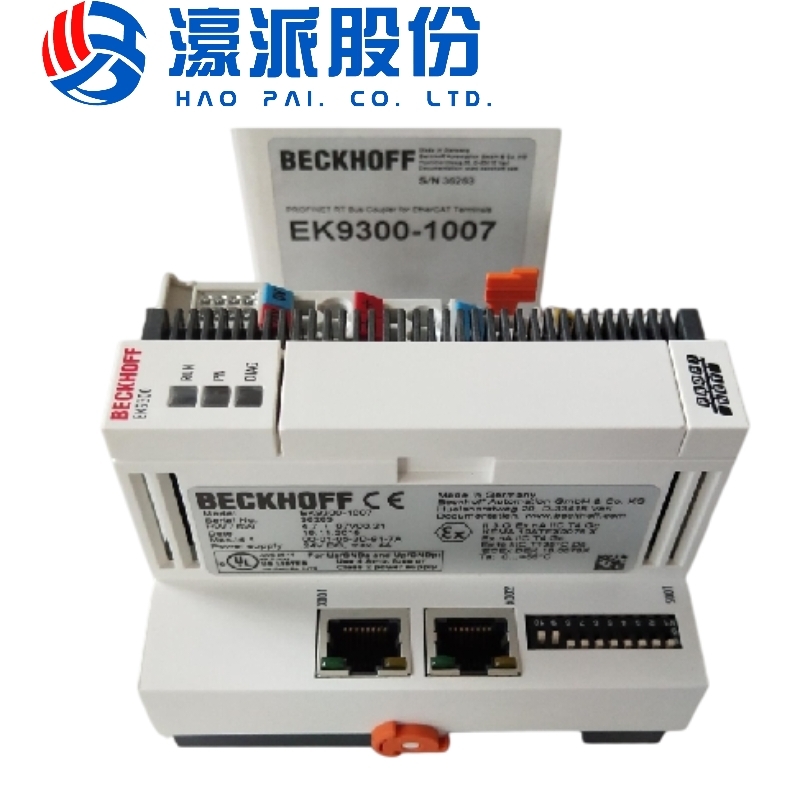

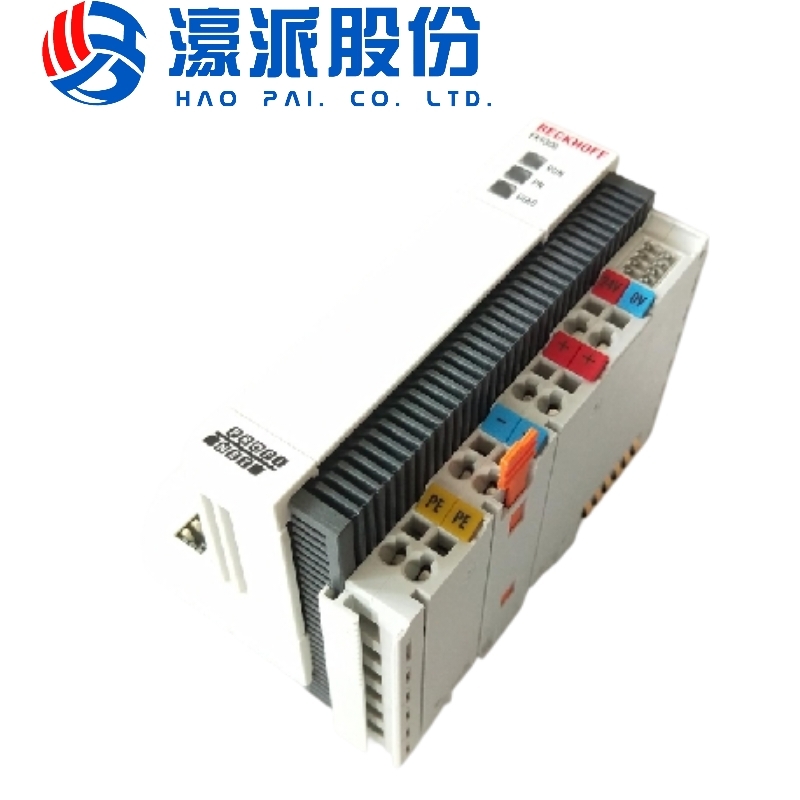

4086050735 Homag Ek9300-1007 Beckhoff Ethercat Bus Coupling Coupler

1、Flexible network connection

It can connect EtherCAT terminal modules and terminal boxes to the PROFINET RT network, supports the PROFINET RT protocol, and can be seamlessly integrated into the PROFINET RT network to achieve data exchange between different networks.

2、Efficient data transmission

The data transmission rate is 100 Mbit/s, which can quickly transmit data. It adopts a switched dual - RJ45 bus interface, facilitating network connection and expansion.

3、Simple configuration

 It can be used without complex configuration, reducing the difficulty of use and the workload of debugging.

4、Strong power supply adaptability

 It is powered by 24 V DC, and the allowable voltage fluctuation range is - 15% / + 20%, which can adapt to a certain degree of power voltage change.

5、Compact structural design

The working temperature range is from - 25℃ to + 60℃, and the storage temperature range is from - 40℃ to + 85℃. The anti - electromagnetic interference / anti - electromagnetic radiation performance complies with the EN 61000 - 6 - 2/EN 61000 - 6 - 4 standard, the relative humidity is 95% without condensation, the vibration / shock resistance complies with the EN 60068 - 2 - 6/EN 60068 - 2 - 27 standard, and the protection level is IP20, which can work stably in a variety of harsh industrial environments.

6、Reliable electrical performance

The electrical isolation reaches 500 V (power contact / power supply voltage / Ethernet). The power contact can support a maximum of 24 V DC/10 A, the input current is usually 120 mA+(E - bus total current)/4, and the E - bus current consumption is up to 2 A, ensuring the stability and safety of electrical connections.

1、Industrial Automation Production Line Scenarios

It is suitable for automated production lines such as automobile manufacturing, 3C electronic assembly, and mechanical processing. In such scenarios, the production line needs to connect both digital/analog EtherCAT terminals (e.g., sensor and actuator control terminals) based on the EtherCAT protocol and upper-level control systems (e.g., PLCs, industrial computers) based on the PROFINET RT protocol. The module enables seamless data interaction between these two types of equipment, ensuring the real-time performance and stability of production line functions such as start-stop control, parameter adjustment, and status monitoring.

2、Process Control Scenarios

It is applicable to process control fields like chemical engineering, petroleum, and water treatment. These scenarios have strict requirements for equipment’s environmental adaptability (e.g., temperature and humidity resistance, electromagnetic interference resistance) and electrical safety. With an operating temperature range of -25℃ to +60℃, an IP20 protection rating, and 500V electrical isolation capability, the module can operate stably in industrial environments with electromagnetic interference and temperature fluctuations. Meanwhile, it supports the efficient transmission of analog signals (e.g., pressure and flow signals) and digital signals (e.g., valve switch signals) required in process control.

3、Smart Warehousing and Logistics Automation Scenarios

It is suitable for scenarios such as stacker control in smart warehouses, conveyor systems, and AGV (Automated Guided Vehicle) scheduling. The module’s 100 Mbit/s data transmission rate can meet the low-latency requirements of warehousing equipment for real-time position feedback and task instruction issuance. Additionally, its compact structural design (64 mm × 100 mm × 73 mm) facilitates integration into the control cabinets of warehousing equipment with limited space, saving installation space.

4、New Energy Equipment Scenarios

It can be applied to photovoltaic inverter control, lithium battery production equipment, and local control units of wind power equipment. In new energy scenarios, equipment needs to operate in outdoor or semi-outdoor environments (e.g., photovoltaic power plants, wind farms) for a long time. The module’s vibration/shock resistance (complying with EN 60068-2-6/EN 60068-2-27 standards) and wide voltage adaptation range (24 V DC, with -15%/+20% fluctuation) can cope with issues such as vibration and unstable power supply voltage during equipment operation, ensuring reliable control in the process of energy production and transmission.
