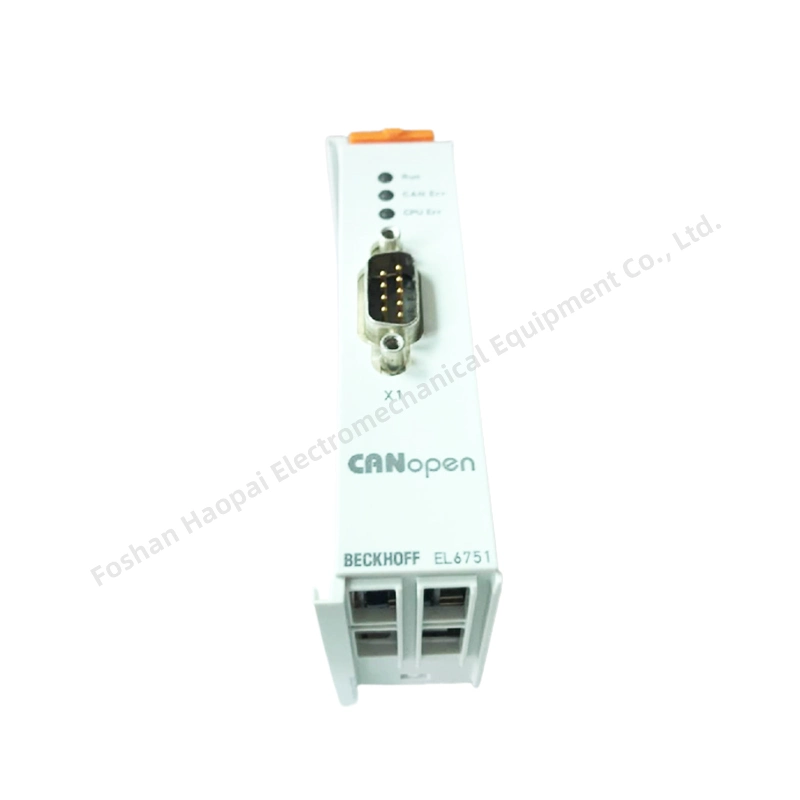

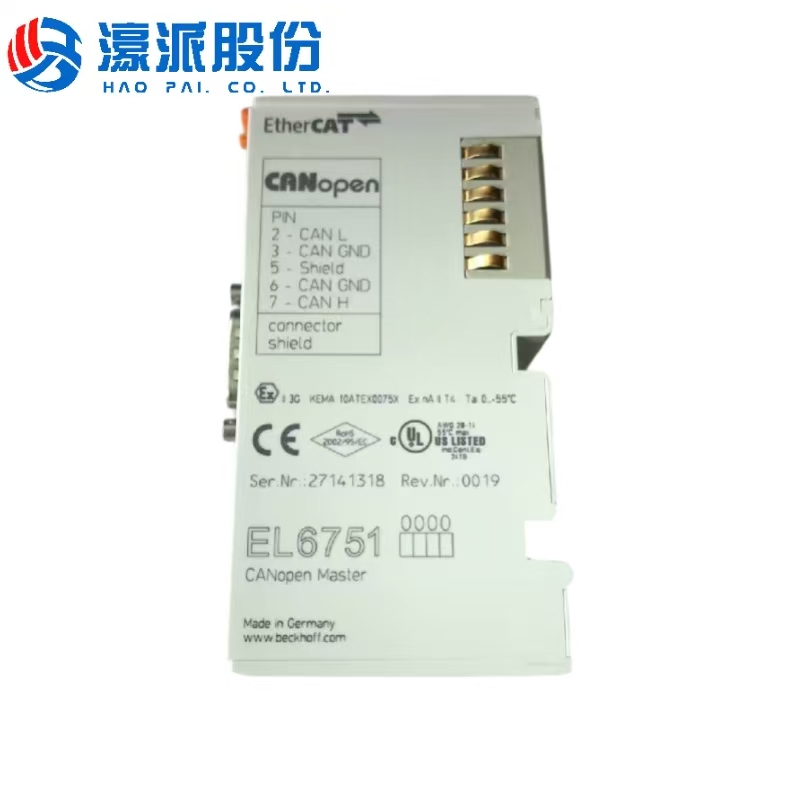

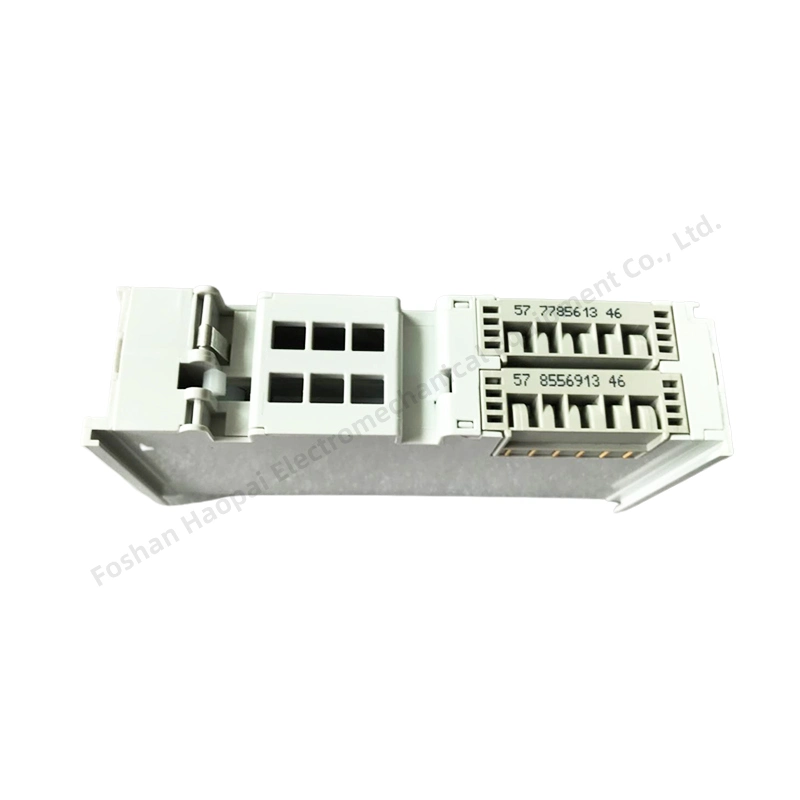

Beckhoff Ethercat Terminal EL6751 with Master Slave Terminal

1.Seamless cross-protocol interconnection capability

As a professional Profinet and EtherCAT protocol conversion gateway, it enables bidirectional transparent data transmission between different bus systems without secondary development, solving the interconnection problems of multi-brand and multi-protocol devices in industrial automation and significantly reducing system integration complexity.

2.High real-time performance and transmission efficiency

Supporting Profinet IRT mode, with data transmission rate up to 100Mbps and single-frame processing delay as low as 10μs, it meets scenarios with extremely high real-time requirements such as motion control and precision machining, ensuring the accuracy of equipment collaborative response.

3.Industrial-grade high reliability

Adopting wide temperature design  with vibration resistance and electromagnetic interference resistance; integrating overvoltage and overcurrent protection functions, automatically cutting off the circuit in case of abnormalities, with mean time between failures (MTBF) exceeding 100,000 hours, ensuring continuous and stable operation in industrial sites.

4.Real-time data transmission

Based on hardware-accelerated protocol processing mechanism, it ensures low latency and high bandwidth for real-time data transmission, meeting the efficient transmission needs of real-time data such as motion control commands and sensor data.

Multi-bus Industrial Automation Production Line Transformation

 During the upgrading of traditional factories, when the production line has both Siemens Profinet equipment and Beckhoff EtherCAT equipment at the same time, the EL6751 can serve as the core of protocol conversion to realize bidirectional transparent data transmission between the two types of bus systems. It can complete the integration of the automation system without replacing the original equipment, reducing transformation costs and downtime.

Multi-axis Collaborative Control of Precision Machine Tools

In equipment such as five-axis machining centers and CNC milling machines, if the machine tool spindle drive adopts a Profinet servo system and the auxiliary axes use EtherCAT stepper control modules, the EL6751 can ensure that the synchronous control error between the spindle and auxiliary axes is <1ms through low-latency (≤10μs) protocol conversion, meeting the strict requirements for motion coordination in precision part machining.

The EL6751 is a bidirectional Profinet/EtherCAT protocol conversion gateway module under Beckhoff. Its core function is to realize transparent data transmission between the two bus systems. It supports 100Mbps full-duplex communication, with a data delay of ≤10μs, and can connect up to 65,535 EtherCAT slaves. It features a wide operating temperature range of -25℃~+60℃, IP20 protection, and overvoltage/overcurrent protection. Configurable via TwinCAT 3, it can adapt to multi-brand industrial equipment without secondary development, significantly reducing the integration cost of multi-bus systems. It is suitable for industrial scenarios such as production line transformation and precision control.
