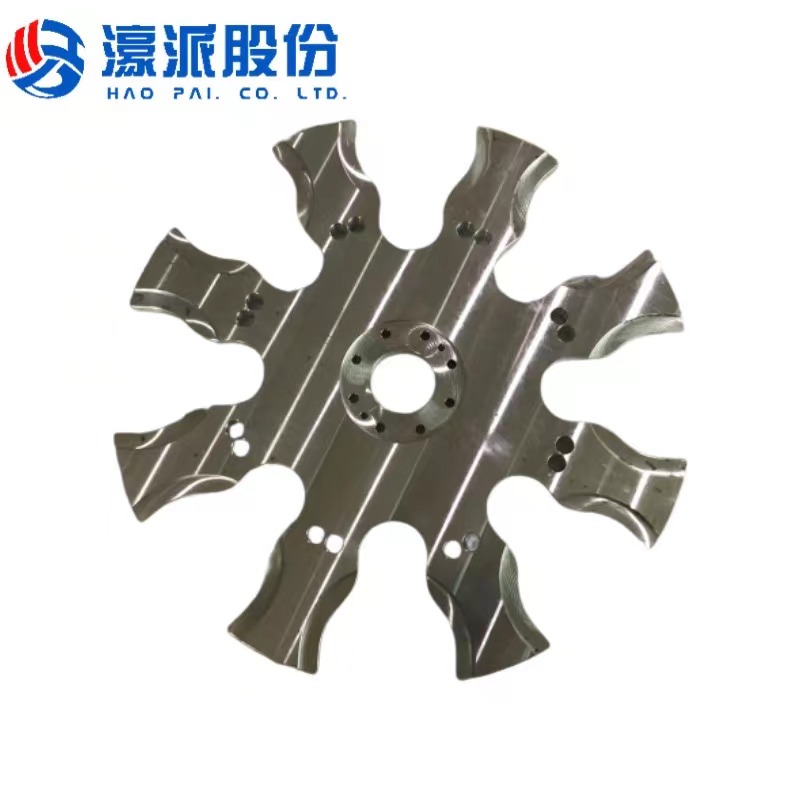

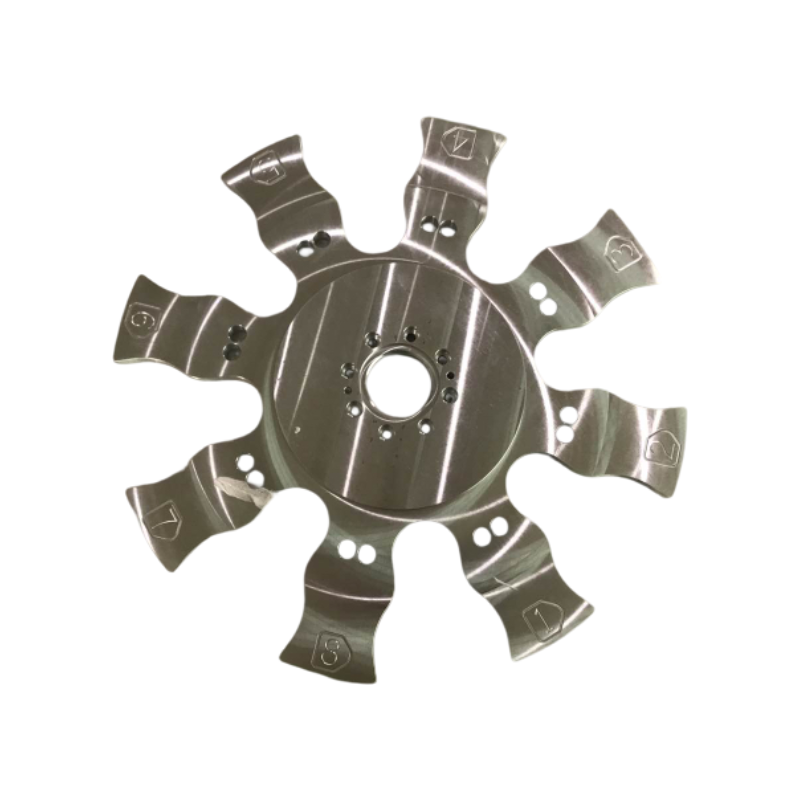

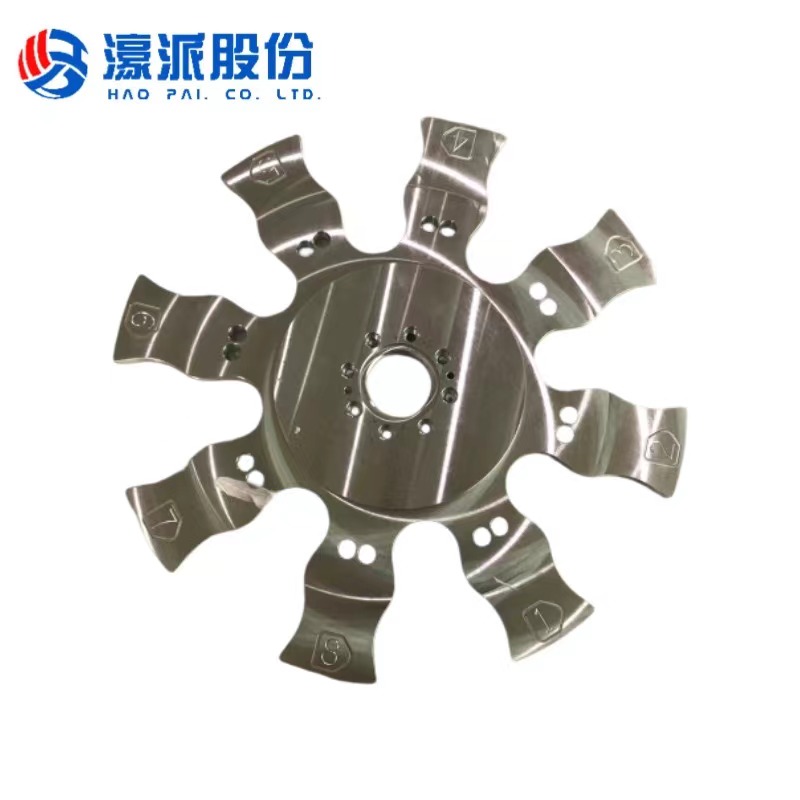

CNC Tool Turret for Machining Center

1. Advantage of High Rigidity Structure and Precision Positioning

The 3802200351 machining center tool turret adopts an integrated cast steel shell design. Compared with traditional cast iron tool turrets, its overall rigidity is increased by 30%, which can withstand the cutting load of large-diameter tools above φ50mm (maximum tool weight adaptation of 8kg) and avoid tool turret deformation during heavy-load processing. At the same time, the tool turret is equipped with a high-precision ball screw and servo drive system, with a repeat positioning accuracy of ±0.003mm. Combined with dual photoelectric sensor positioning calibration, it can effectively offset the inertia error during high-speed tool change, making it suitable for scenarios requiring strict tool position accuracy such as metal precision milling and wood curved surface carving (e.g., 3C electronic accessory processing, mold cavity rough milling).

2. Advantage of Efficient Tool Change and Large-Capacity Tool Storage

This tool turret has a tool storage capacity of 24 positions (compatible with mainstream tool holders such as ER32 and HSK-A63). Compared with the 16-position tool turret of the same specification, the tool storage capacity is increased by 50%, which can meet the needs of multi-process continuous processing (e.g., one-stop operation from drilling → slot milling → chamfering) and reduce the frequency of manual tool replenishment midway. The tool change mechanism adopts a cam linkage design, with a tool change time of ≤1.5 seconds (adjacent tool position switching), which is 40% more efficient than traditional gear-driven tool turrets. It is especially suitable for batch production scenarios (e.g., aluminum alloy part assembly line processing) and can significantly reduce equipment standby time.

3. Advantage of Wide-Scenario Adaptation and Strong Environmental Resistance

In terms of adaptability, the 3802200351 tool turret supports dual installation modes of vertical and horizontal machining centers, and is compatible with mainstream CNC systems such as Fanuc 0i-MF and Siemens 828D. No additional customized adapter modules are required, and it can be easily integrated into existing production lines (e.g., woodworking machining centers, metal precision processing equipment). In terms of protection performance, the tool turret has an IP65 sealing class, and the interface is equipped with a double dust-proof sealing ring, which can isolate cutting fluid splashes, metal chips (e.g., aluminum chips, iron chips) and dust in woodworking processing. It adapts to a wide temperature working environment of -10℃~55℃ and can still operate stably in humid and dusty workshops (e.g., furniture processing plants, 3C accessory plants).

1. Metal Precision Processing Industry (Core Application Scenario)

It is compatible with vertical/horizontal metal machining centers, focusing on multi-process continuous processing of light to medium-load metal parts such as aluminum alloy, stainless steel, and brass. For example, in the production of auto parts, it can complete integrated operations of drilling (φ5-15mm), slot milling (slot width ≤8mm), and chamfering of gearbox housings—the 24-position tool storage capacity can hold drills, end mills, and chamfering tools at the same time, eliminating the need for manual tool change midway;

2. Woodworking Machinery and Furniture Manufacturing Field

It is compatible with CNC woodworking machining centers, targeting complex processing scenarios of wood materials such as solid wood, MDF, and multi-layer boards—such as relief carving of custom furniture door panels, hole processing (hole diameter φ3-10mm) of cabinet side panels, and profile milling of wooden decorative lines.

3. 3C Electronic Component Processing Field

It is compatible with small high-precision machining centers, used for precision processing of consumer electronic accessories such as mobile phones and tablets—such as cooling hole drilling (hole diameter φ1-3mm) of aluminum alloy charger housings, curved surface milling of stainless steel headphone brackets, and thread bottom hole processing of brass connectors. Its ±0.003mm repeat positioning accuracy can meet the "micron-level" dimensional tolerance requirements of 3C products (e.g., hole position tolerance ±0.005mm);

4. Small and Medium-Sized Mold Manufacturing Field

It is compatible with mold-specific machining centers, used for rough milling and semi-finish milling of plastic molds and rubber molds—such as cavity slotting (depth ≤15mm) of home appliance button molds, curved surface forming of toy molds, and template hole processing of small stamping molds.

The 3802200351 Machining Center Tool Turret is a multi-functional tool storage and changing component positioned for mid-to-high-end processing scenarios. Specifically designed for vertical/horizontal machining centers, its core advantages lie in the three key features of "high rigidity, high precision, and high efficiency". It can adapt to the needs of multiple industries such as metal precision processing, woodworking manufacturing, 3C electronics, and mold production, providing a stable tool storage and switching solution for multi-process continuous processing.
