Compact Cylinder for Homag Tool
- Haopai
- Guangdong, China
- 5-10days
- 1000
- 4035012812
- Adn D=32 Hub= 30 G1/8

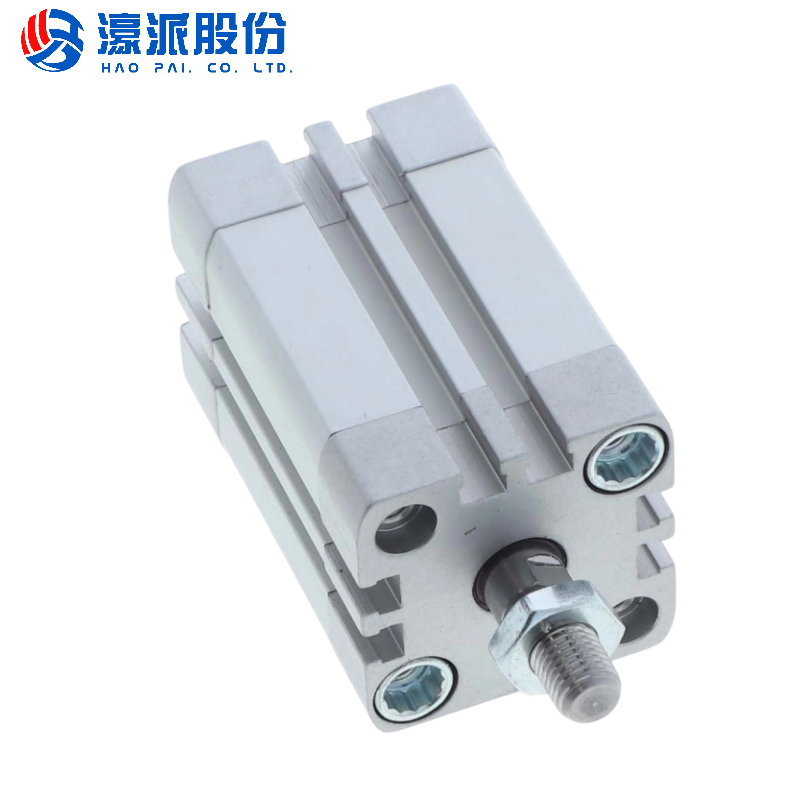

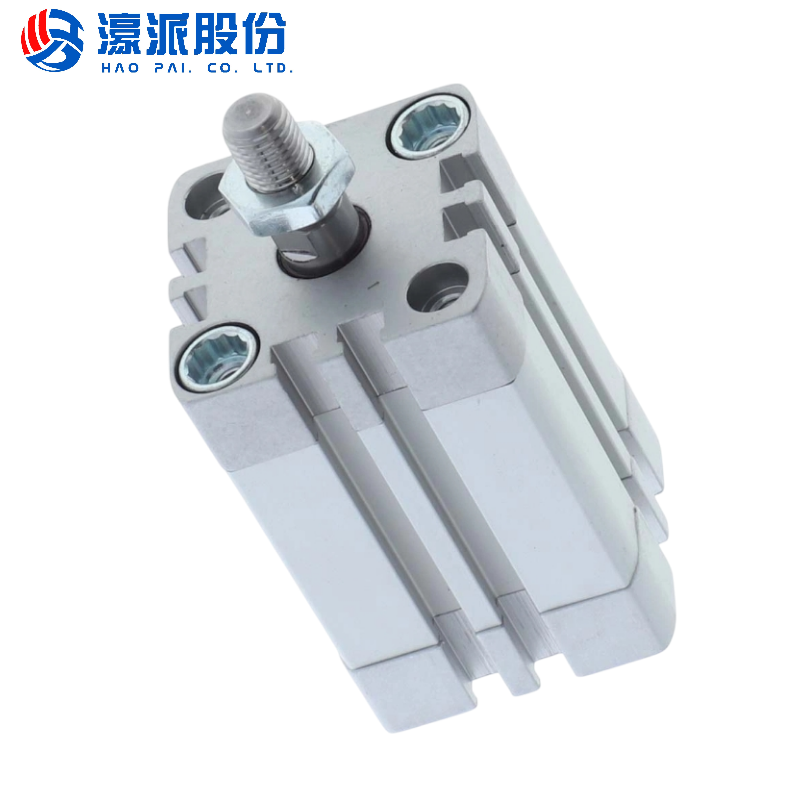

Both ends are equipped with elastic buffers, which can absorb residual energy, have a low coefficient of friction and a long service life. Supports diverse installation methods and location detection, and is compatible with automation scenarios in multiple fields such as electronics and packaging.
Product advantages and features
1. Core features
Precise specification matching: The parameter combination of a piston diameter of 32mm and a stroke of 30mm, paired with the G1/8 standard pneumatic interface, can precisely meet the driving requirements of small and medium-sized automated equipment. The interface has strong universality and is convenient for system integration.
Standardized structural design: Complies with the ISO 21287 international standard, featuring an integrated compact shell. Compared with traditional standard cylinders, it can save over 50% of installation space. The cylinder length tolerance is stricter, making it suitable for compact equipment layouts with high-density installation.
Reliable operation configuration: Integrated elastic buffer device, which can effectively absorb the residual energy of piston movement, reduce operating noise and component wear; The piston rod features a threaded design, supporting both internal and external thread connections, and is compatible with a variety of actuating components.
2. Product advantages
Space and efficiency optimization: The ultra-compact structure and lightweight shell design offer significant advantages in narrow working Spaces such as electronic assembly and precision packaging. Moreover, it is equipped with complete installation accessories and supports multiple installation methods including through-hole screws and direct installation, ensuring high assembly efficiency.
Durability and compatibility: Relying on Haomai's precise manufacturing process, the cylinder body is specially treated to reduce the friction coefficient, and combined with a reasonable sealing design, it has a longer service life. It can adapt to working environments ranging from -20 ℃ to 80℃ and meet the conventional working conditions of multiple industries.
Strong functional scalability: Supports the installation of proximity switches and other position detection components, enabling precise monitoring of the piston position. Compatible with conventional working media such as compressed air, the working pressure range covers 1-10bar, and it can meet the requirements of various light-load operations such as clamping and pushing.
Product Technical Parameters
Model NO.
4035012812
Material
Metal
Application Machine
Homag
Selling Units
Single Item
Condition
New
Application
Woodworking Industry
Transport Package
Carton
Specification
piece
Trademark
Haopai
Origin
Guangdong, China
Product application scope
1. Electronic equipment manufacturing: In equipment such as chip grinding and spot welding machines, with their characteristics of rapid response and high precision, precise position control and rapid action execution can be achieved, meeting the high-speed and high-precision requirements in the production process of electronic components.
2. Automated production lines: Such as those in the automotive manufacturing and food packaging industries, which are used to perform operations like workpiece handling, assembly, positioning, and clamping, thereby enhancing production efficiency and the degree of automation.
3. Robotics Technology: It can be used as a joint or actuating element of robots to achieve precise motion control and position adjustment of robots, enabling them to perform various complex actions and tasks.
product description
This ADN series compact cylinder is a pneumatic actuator specially designed for small and medium-sized automation scenarios. With a piston diameter of 32mm and a stroke of 30mm, it is equipped with a G1/8 standard pneumatic interface and is compatible with conventional compressed air systems, precisely meeting the driving requirements of light loads.
The product adopts a compact structure design that complies with the ISO 21287 standard. The cylinder body is lightweight as a whole and compact in size. Compared with traditional cylinders of the same specification, it can save more than 50% of installation space and is suitable for high-density installation layouts in narrow working environments such as electronic equipment and precision packaging. The cylinder block is treated with a special process and equipped with high-quality sealing components, featuring a low coefficient of friction. Combined with the elastic buffer devices integrated at both ends, it can effectively absorb the residual energy of the piston movement, reduce operating noise and component wear, and extend the service life.
The piston rod comes with standard threads and supports both internal and external thread connection methods, which can be flexibly adapted to various actuating components such as clamping, pushing, and positioning. It is compatible with various installation methods such as through-hole screws and direct installation, and supports the addition of proximity switches to achieve precise monitoring of piston position. It can be widely integrated into pneumatic systems in fields such as electronic manufacturing, automated production lines, and small mechanical equipment.
