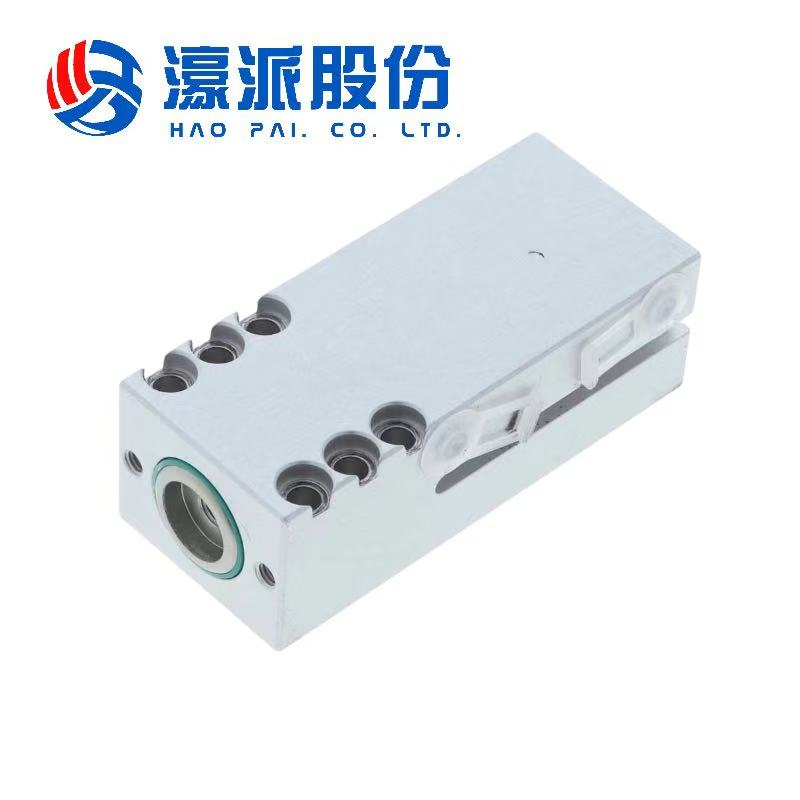

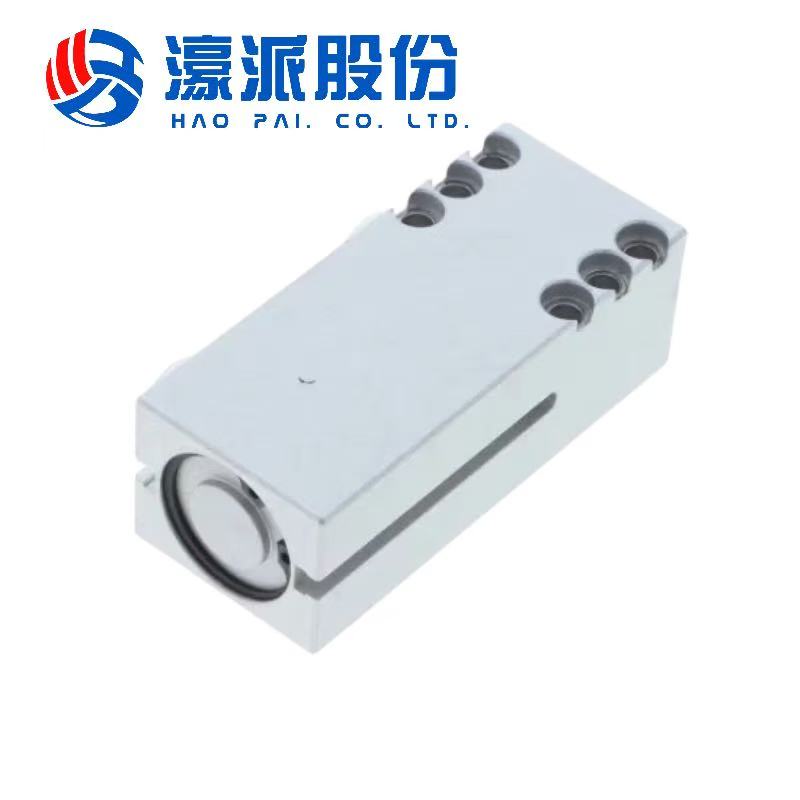

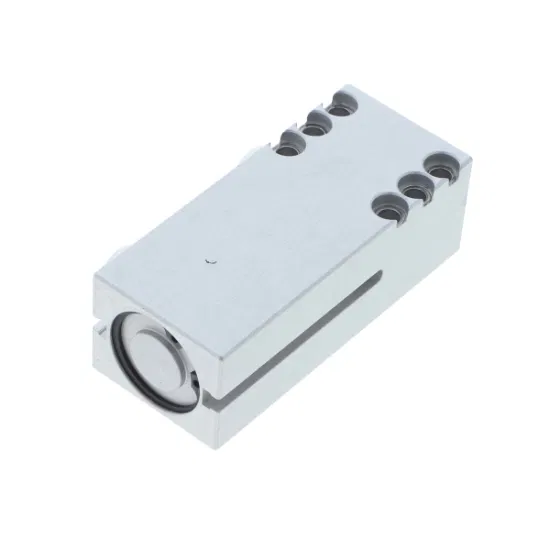

Cylinder Double for Homag Woodworking Machinery

1. High-Precision Machining Assurance

Homag’s dual-cylinder systems deliver uniform pressure distribution, ensuring stable workpiece positioning throughout the machining process and thus guaranteeing high-precision results. For instance, the DRILLTEQ H-330 dual-channel six-sided machining center is equipped with four sets of upper and lower spindle heads that can process a single panel simultaneously. Combined with Homag’s patented spindle locking technology, it ensures consistent drilling depth across different materials—unaffected by fluctuations in air pressure or other external factors. This precision is critical for avoiding edge chipping, dimensional deviations, and other defects in high-end woodworking.

2. Powerful Force Output

The dual-cylinder design enables superimposed thrust output, meeting the high-power demands of Homag machinery when processing difficult-to-machine materials such as thick wood panels or hardwoods (e.g., oak, walnut). In applications like Homag’s woodworking cold presses, the dual-cylinder system generates sufficient and uniform pressure (up to 20MPa for medium-sized models), ensuring tight bonding between stacked panels (e.g., veneers and substrates) without gaps. This eliminates issues like uneven lamination caused by insufficient single-cylinder force, directly improving the qualification rate of finished products.

3. Stable Operational Performance

Engineered with symmetrical cylinder layout and precision manufacturing processes (e.g., high-hardness cylinder barrels and wear-resistant seals), Homag’s dual-cylinder systems minimize vibration and deviation during operation, enhancing overall equipment reliability. A typical example is the dual-cylinder pressure roller unit in Homag edge banding machines: during edge banding, the system maintains constant pressure on both the upper and lower sides of the panel, ensuring tight adhesion between the edge band (e.g., PVC or solid wood strips) and the panel edge. This avoids common defects like edge band warping or peeling, even when processing panels with complex profiles.

4. Flexible Motion Coordination

Controlled by Homag’s proprietary CNC systems, the dual-cylinder systems support multiple motion modes (synchronous operation, sequential actuation, or differential movement) to adapt to diverse machining procedures. For example, in multi-station woodworking drilling machines, the dual cylinders coordinate clamping and feeding actions: first, they synchronously clamp the workpiece to prevent displacement; then, they adjust the feeding speed in tandem with the drill spindle, ensuring efficient and precise hole drilling. This flexibility enables seamless integration with automated production lines, reducing manual intervention.

Dual cylinder products, with their excellent performance, are widely used in various woodworking machinery and equipment, effectively promoting the process of high efficiency and refinement in woodworking production.

Equipment case: edge banding machine

Compared to single cylinder drive, the Homag dual cylinder system directly solves the core defect of single cylinder in woodworking processing through "symmetrical layout+collaborative control", which is also the basic reason for choosing dual cylinder.
