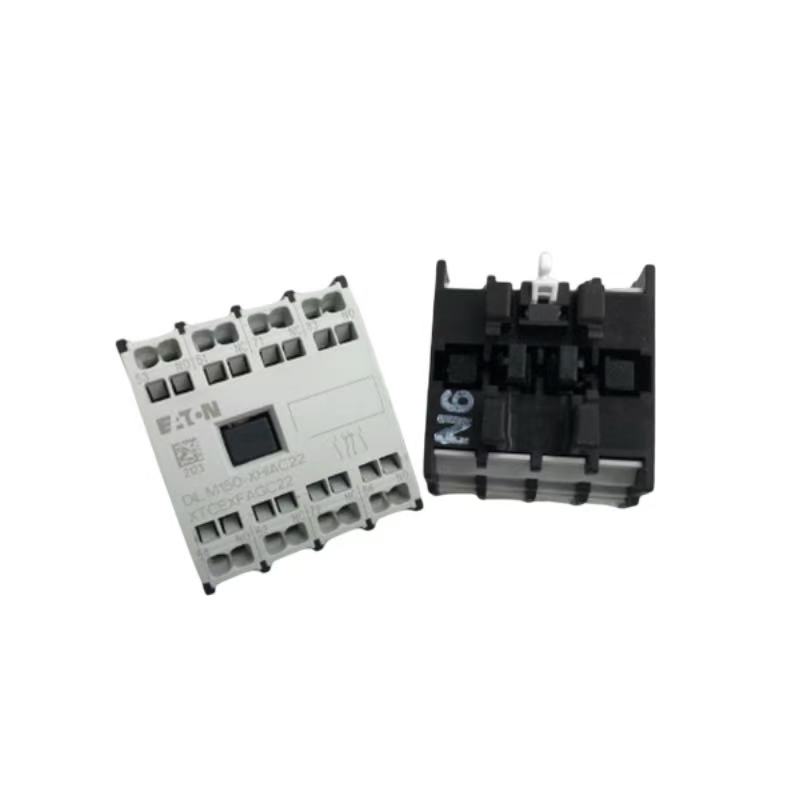

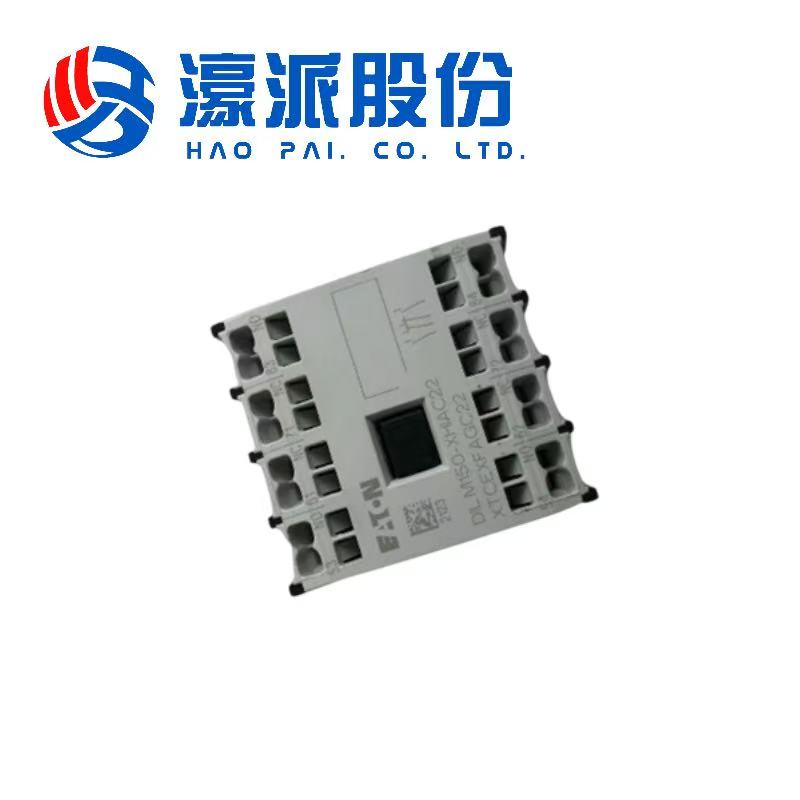

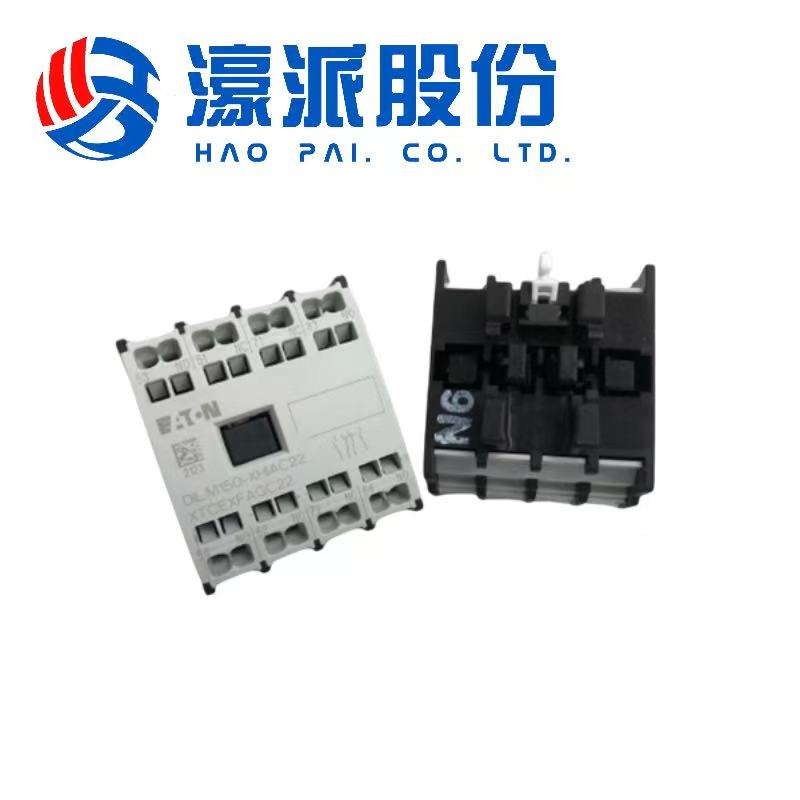

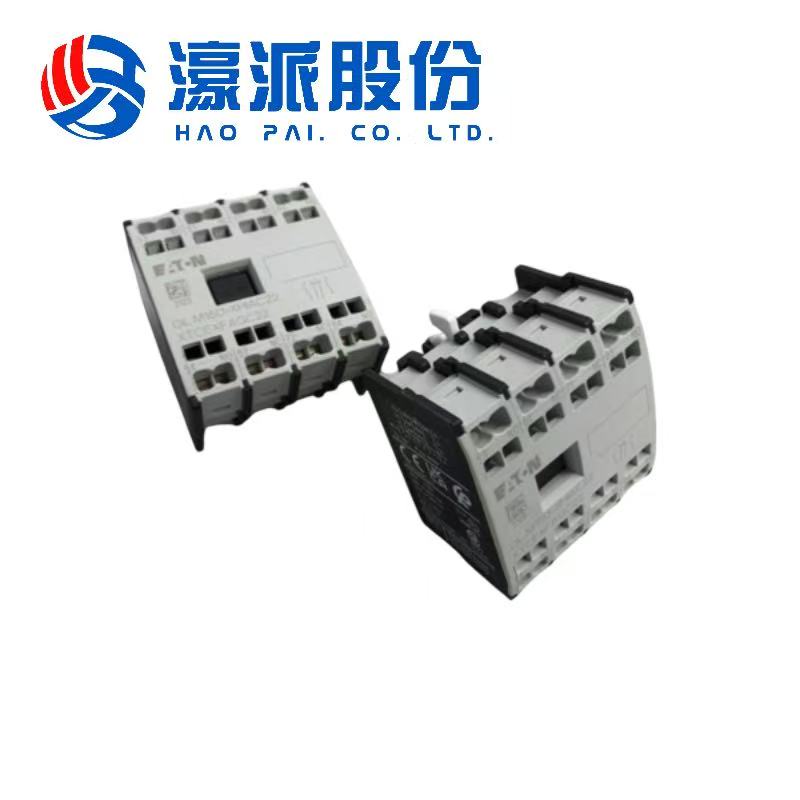

Dilm150-Xhiac22 Eaton Moeller Series Dilm Auxiliary Contact Module

1.High Reliability

 Boasts an electrical service life of up to 1.3 million operations (under conditions of 230V, AC-15, 3A). It can operate stably for an extended period, reducing the frequency of maintenance and replacement, making it suitable for industrial control scenarios with high reliability requirements.

2.Flexible Installation

Can be directly mounted on the front of IEC-rated contactors from DILM 40 to DILM 150. It adopts screw terminal connections and can be installed without tools, enabling convenient installation and saving time and labor costs.

3.Excellent Electrical Performance

Features a rated AC voltage of 500V, a rated DC voltage of 220V, a rated AC current of 4A, and a rated DC current of 10A. It can meet the needs of various electrical control circuits.

4.Safety Design

Equipped with an IP20 protection rating, which prevents fingers from touching live parts and also resists the intrusion of dust and objects larger than 12mm, ensuring safety during use.

5.Compact Structure

 With a small size and a weight of only 0.055 kg, it does not occupy excessive installation space and does not add excessive load to the system.

6.Compliance with Multiple Standards

Complies with certifications such as CE and relevant standards, ensuring product quality and compatibility for use in electrical systems of different types and in different regions.

7.Interlocked Opposed Contacts Design

The auxiliary contact module is equipped with interlocked opposed contacts (in accordance with IEC 60947-5-1 Annex L). This design helps maintain a neat layout, prevents wire crossing during operation, and improves the stability and reliability of circuit connections.

The auxiliary contact DILM150-XHAIC22 has good electrical performance, high reliability, and flexible installation characteristics, and can be applied to various equipment, such as industrial motor control equipment, electrical control cabinets, automated production line equipment, power transmission and distribution equipment

Automated production line equipment: Automated production lines involve a large number of devices working together, with extremely high requirements for control accuracy and stability. Auxiliary contacts can be installed on contactors at various stages of the production line to provide equipment status feedback for the automation control system. In the automation production line of automobile manufacturing, the motor control of parts handling and assembly equipment, auxiliary contacts can transmit the operating status of the motor and equipment to control systems such as PLC (Programmable Logic Controller), so that the entire production line can operate in coordination. Once a fault occurs in a certain link, the control system can quickly respond based on the feedback of auxiliary contacts, stop the operation of related equipment, and prevent the fault from expanding.

This auxiliary contact has a longer electrical lifespan (up to 1.3 million operations), easier installation (tool free front installation), better electrical parameters (high voltage and current adaptation), higher protection level (IP20), more compact structure (lightweight and space saving) compared to conventional products. It also meets international standards and has a unique interlocking contact design, which can improve equipment stability, reduce costs, and adapt to more scenarios.
