Enterprise USB-Wired Handheld Code Reader
- Haopai
- Guangdong, China
- 5-10days
Customization: Available
Network Scanning: Support Network
Type: Handheld
Basic Info.
Model NO.
MV-IDH2003-03S-W2U
Color
Black
Characteristics
Long Working Time
Applicable Industries
Industry
Transport Package
Package
Specification
piece
Trademark
other
Origin
China
Product Description

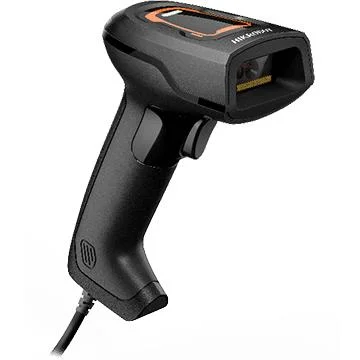

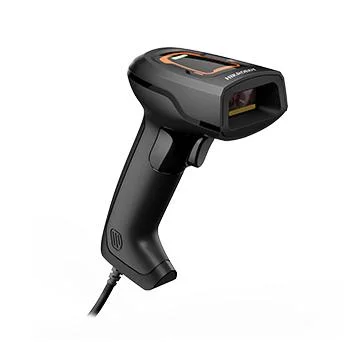

Product Name: Enterprise USB-Wired Handheld Code Reader
Keywords: Barcode Scanner, Code Reader, USB-Wired, Handheld, One-dimensional, Two-dimensional, Robustness, USB-HID, USB-CDC, RS232, Buzzer, Indicator
Key Feature:
| Model | Product Model | MV-IDH2003-03S-W2U |
| Type | Enterprise USB-Wired Handheld Code Reader | |
| Performance | Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, and UPCE 2-dimensional codes: QR Code, Data Matrix, Micro QR Code, and Aztec Stacked codes: PDF417 |
| Min. accuracy | 4 mil | |
| Max. frame rate | 50 fps | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 3.74 µm × 3.74 µm | |
| Sensor size | 1/6" | |
| Resolution | 640 × 480 | |
| Depth of field | EAN 13 (13 mil) 65 mm to 250 mm* Code 39 (5 mil): 40 mm to 140 mm* Data Matrix (10 mil): 40 mm to 140 mm* QR Code (15 mil): 35 mil to 200 mm* | |
| Field of view | Horizontal 42°, vertical 32° | |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° | |
| Symbol contrast | 20% | |
| Communication protocol | SmartSDK, USB (HID/CDC) | |
| Electrical feature | Data interface | USB2.0 |
| Power supply | 5 VDC | |
| Max. power consumption | 2.5 W@5 VDC | |
| Mechanical | Focal length | 3.1 mm |
| Lens mount | M5.0-mount | |
| Ambient illumination | 0 lux to 100000 lux | |
| Light source | Green LED | |
| Aiming system | Orange LED | |
| Prompt | LED indicator, buzzer | |

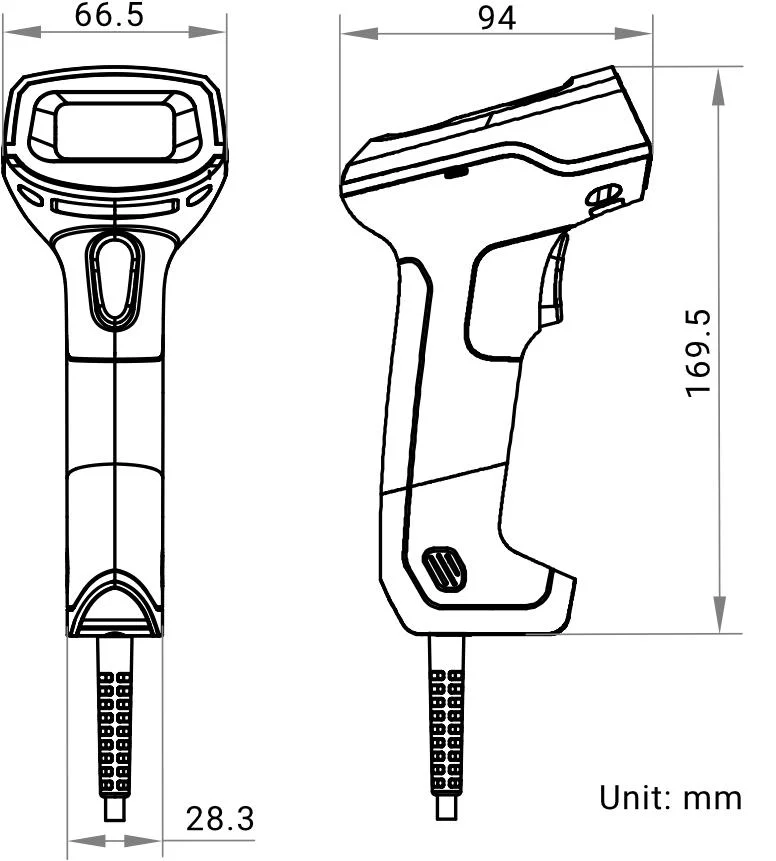

| Dimension | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") | |
| Weight | Approx. 160 g (0.4 lb.) | |
| Temperature | Working temperature: -20 °C to 55 °C (-4 °F to 131 °F) storage temperature: -30 °C to 70 °C (-22°F to 158 °F) | |
| Ingress protection | IP42 | |
| Humidity | 5% to 95% RH, non-condensing | |
| General | Client software | IDMVS |
| Certification | CE, KC, RoHS |
