Ethercat EL9011 Beckhoff Bus End Cover for E-Bus Contacts

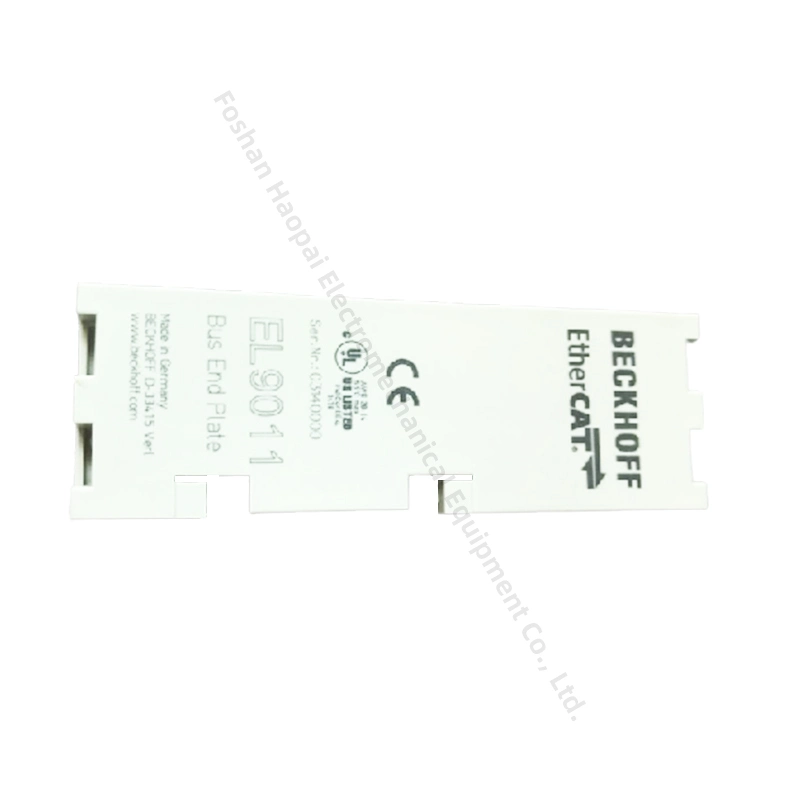

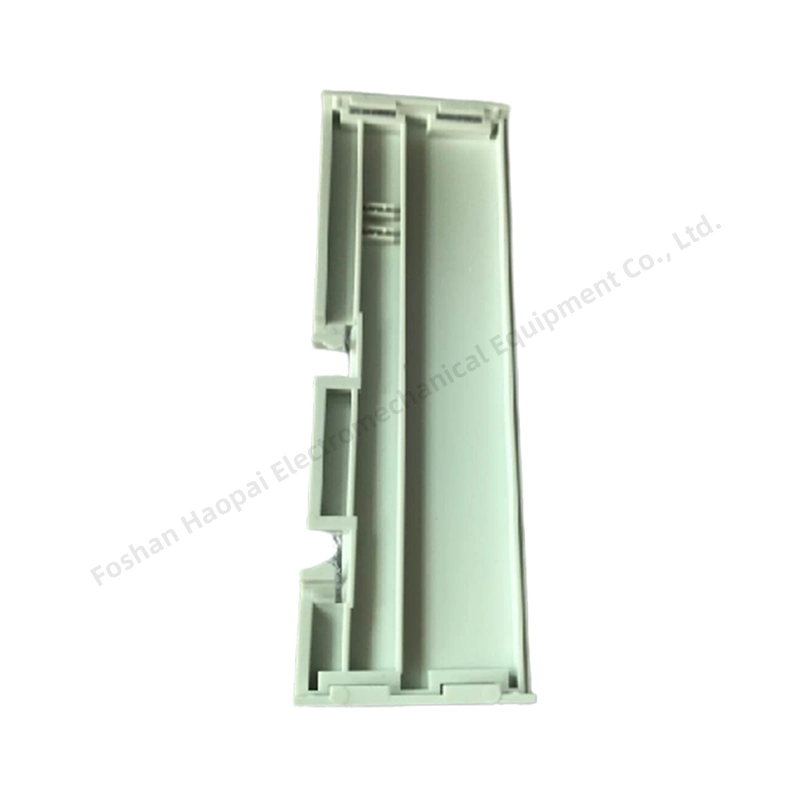

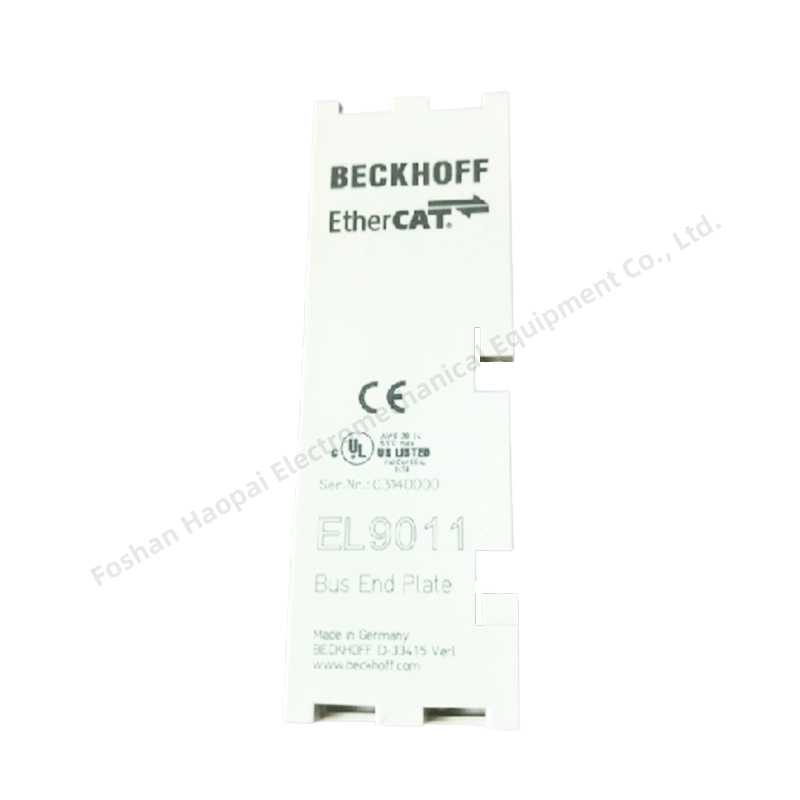

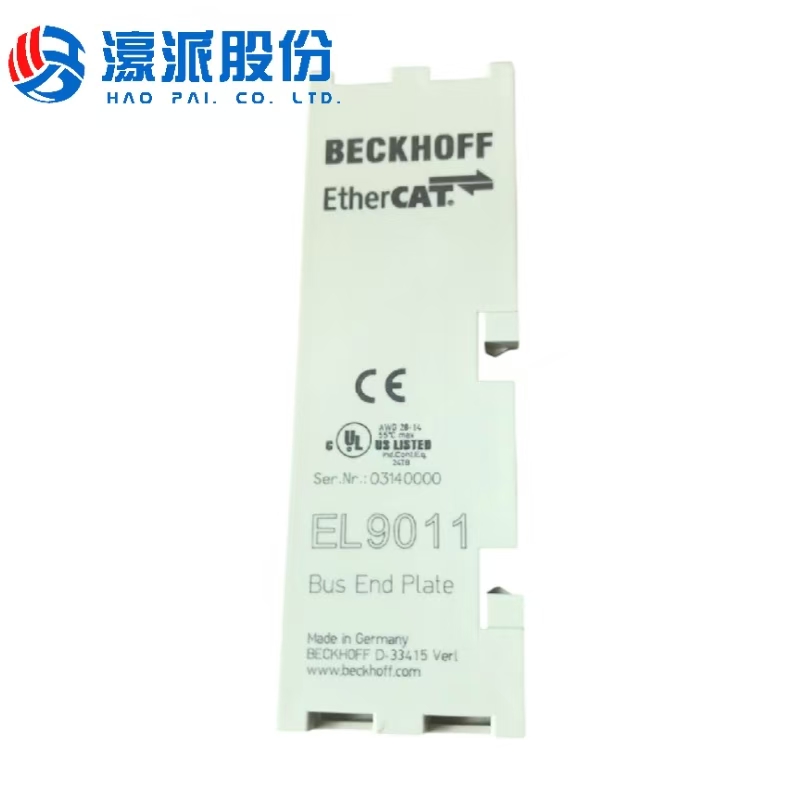

1.EL9011 is precisely compatible with the EtherCAT bus system

As a dedicated bus termination module for Beckhoff's EtherCAT I/O product family, it can be seamlessly connected to the right side of the EtherCAT I/O module station. It effectively terminates the bus signal, avoids signal reflection caused by incomplete bus links, and ensures stable data transmission of the entire I/O module chain.

2.Features a convenient plug-in installation design

The module adopts a standardized plug-in structure that matches Beckhoff's standard I/O module mounting rails. During installation, there is no need for complex wiring operations; it only needs to be inserted into the designated position of the bus station, which greatly simplifies the on-site installation process and shortens the construction period.

3.Boasts reliable physical protection performance

With an IP20 protection rating, it can effectively prevent the intrusion of solid objects larger than 12mm (such as fingers or similar-sized objects) and avoid damage to internal components caused by external foreign objects. This makes it suitable for use in general industrial control environments and ensures the long-term stable operation of the module.

4.Optimizes the integrity of the bus link

By acting as a terminal for the E-bus contacts, it closes the E-bus loop of the I/O module group. This not only maintains the electrical continuity of the bus but also reduces signal interference between modules. It provides a solid guarantee for the normal operation of high-speed and high-precision EtherCAT control systems.

5.Offers high product compatibility

It is fully compatible with various series of Beckhoff EtherCAT I/O modules. Whether it is digital input/output modules, analog modules, or special function modules, EL9011 can be matched for use. This eliminates compatibility issues during system configuration and enhances the flexibility of the industrial control system's expansion and transformation.

EtherCAT I/O Module Group Termination Scenario

This is the core application scenario of EL9011. In industrial control systems built with Beckhoff EtherCAT I/O modules, when multiple I/O modules (such as digital input module EL1004, analog output module EL4002, etc.) are spliced in sequence through a bus rail to form a module group, EL9011 must be installed on the far right side of the module group. It terminates the E-bus contacts, closes the bus loop, and prevents issues such as signal reflection and data transmission interruption caused by incomplete bus links, ensuring stable communication between the entire I/O module group and the controller. It is suitable for control scenarios requiring multi-module collaboration, such as automated production lines and intelligent warehousing equipment.

Bus System Protection Scenario in General Industrial Environments

With an IP20 protection rating, EL9011 can be used in general industrial environments (such as machinery manufacturing workshops and electronic component assembly workshops). In these environments, dust, debris may be generated during equipment operation, or there may be a risk of accidental contact by personnel. EL9011 can block the intrusion of solid foreign objects larger than 12mm into the module interior. At the same time, through its standardized plug-in design, it closely cooperates with other I/O modules to form a relatively neat bus module layout, reducing damage to bus contacts from the external environment and extending the service life of the entire EtherCAT bus system.

Translation: EL9011 is a dedicated bus end cover/termination module for the Beckhoff EtherCAT I/O product family. Its core role is to provide bus link termination processing for EtherCAT I/O module groups, close the E-bus loop, avoid signal reflection, and ensure the stability and integrity of data transmission in the entire bus system. It is an indispensable terminal accessory for EtherCAT I/O module groups in industrial control systems.
