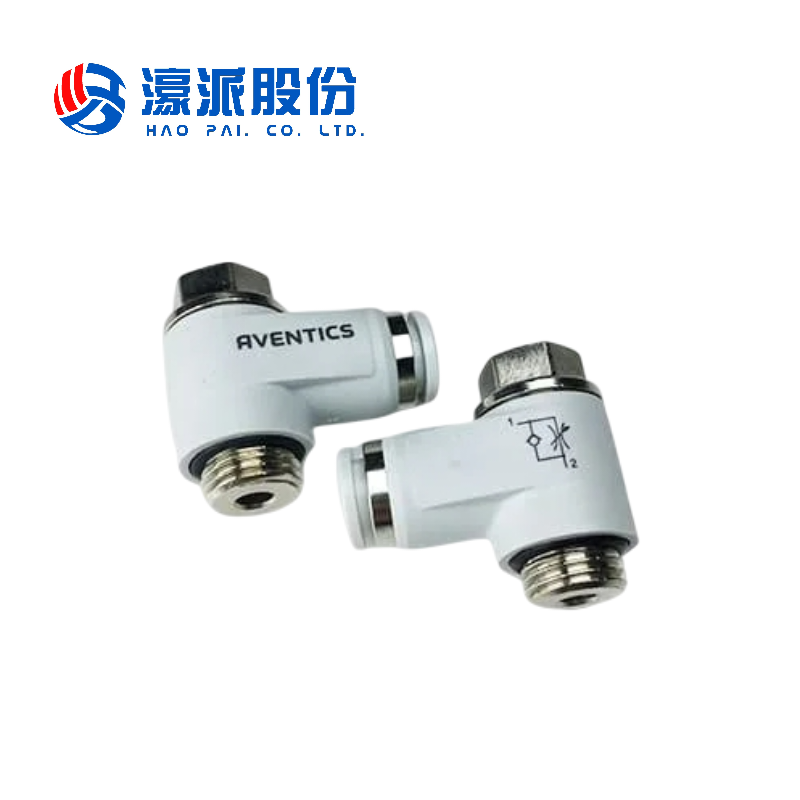

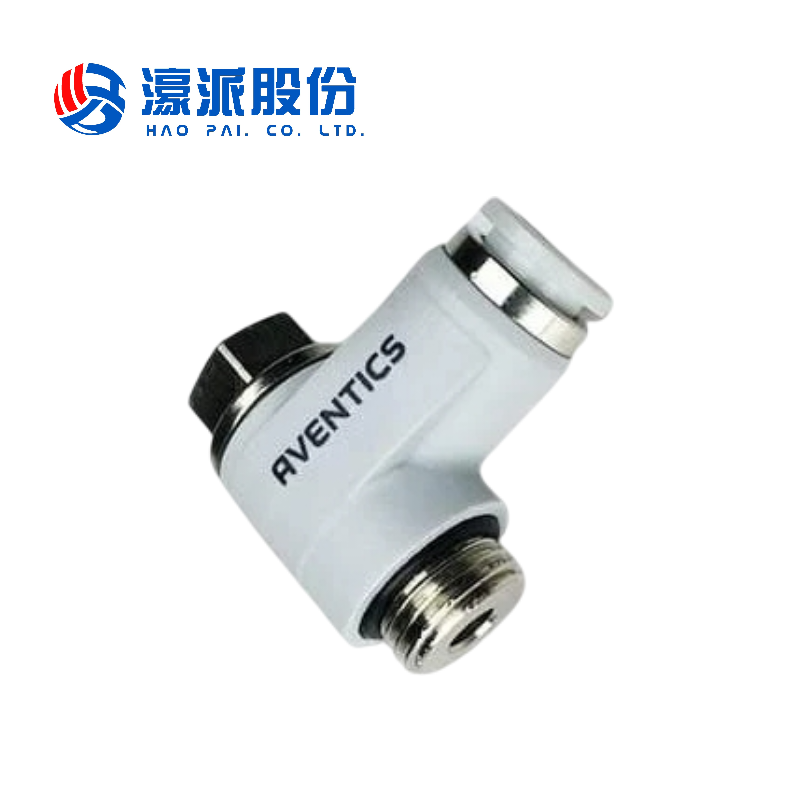

Homag 4-011-04-1619 Aventics R412010572 Air Throttle Valve
- Aventics
- Hannover, Germany
- 8-10 weeks
- 500 Per month
- 4011041619 / R412010572
- 2 points 8 cents
Model 4011041619 The highlights of Rexroth one-way throttle valve can be summarized as:
1. Functional: It integrates precise throttling and unidirectional free flow, efficient and practical.
2. Structural: The superimposed design brings unparalleled compactness, convenience and reliability.
3. Performance: high pressure bearing, small leakage, accurate adjustment, and stable work.
4. Brand: From a famous family, guaranteed quality and widely used.
Product advantages and features
Model 4011041619 The highlights of Rexroth one-way throttle valve can be summarized as:
1. Functional: It integrates precise throttling and unidirectional free flow, efficient and practical.
2. Structural: The superimposed design brings unparalleled compactness, convenience and reliability.
3. Performance: high pressure bearing, small leakage, accurate adjustment, and stable work.
4. Brand: From a famous family, guaranteed quality and widely used.
Product Technical Parameters
Part number | R412010572 |
Port 1 | Ø 8 |
Port 2 | G 1/4 |
Throttle bore Ø | 4.5 mm |
Weight | 380g |
Compressed air connection type 1 | push-in fitting |
Compressed air connection type 2 | External thread |
Throttle | Exhaust Air Throttling |
Medium | Compressed air |
Working pressure min. | 0.5 bar |
Working pressure max | 10 bar |
Min. ambient temperature | -10 °C |
Max. ambient temperature | 60 °C |
Min. medium temperature | -10 °C |
Max. medium temperature | 60 °C |
Housing material | Polyamide |
direction of throttle | 2 > 1 |
Nominal flow Qn 2 to 1 | 490 l/min |
Seal material | Acrylonitrile butadiene rubber |
Material compressed air connection | Brass |
Product application scope
4011041619 One-way throttle valve is a basic component widely used in the field of industrial pneumatic automation.
Main uses: precisely control the movement speed of the cylinder to achieve stable, efficient and impact-free operation of the equipment.
Core features: One direction is conducting in one direction, and the other direction is adjustable in flow.
Application industry: covers almost all manufacturing fields such as automobiles, electronics, packaging, food, machine tools, etc.
Suggestion: To obtain the most accurate technical parameters, installation sizes and instructions for use of this model, it is best to go to the official website (such as Festo, SMC, etc.) to search for the detailed sample manual (Datasheet) of the "4011041619" model according to its brand (such as the LOGO printed on the valve body).
product description
Unidirectional function: allows airflow to pass freely from one direction (A→B) and completely close from the opposite direction (B→A) and the airflow cannot pass.
Throttle function: In the direction where air flow is allowed (usually A→B), the opening of the valve port can be adjusted by a knob or screw, thereby limiting and precisely controlling the flow of air.
Working pressure: Usually suitable for standard pneumatic pressure ranges, such as 0.2 ~ 1.0 MPa (approximately 2 ~ 10 bar).
Operating temperature: Standard models are typically between -5°C and +80°C and are adapted to higher or lower temperatures using special sealing materials such as fluoroelastomer.
Interface size: This model "4011041619" is likely to be a common interface size such as M5x0.8, G1/8, or 1/4" NPT. This determines how large the trachea it can connect to.
Flow rate (Cv value or KV value): determines how large the cylinder diameter it can control. The larger the cylinder bore, the greater the flow rate required.
Media requirements: Must be filtered, lubricated or unlubricated compressed air. The air cannot contain too much moisture and impurities, otherwise it will damage the valve or block the throttle.
A range of Homag machine spare parts and industrial components are available here.
If you are looking for Homag spare parts, welcome to contact us!
