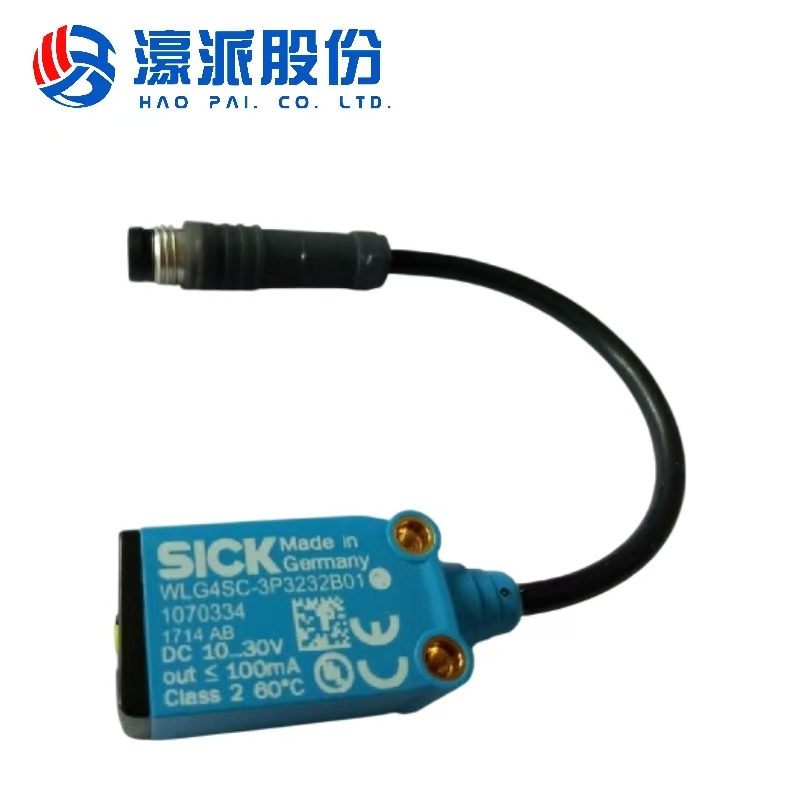

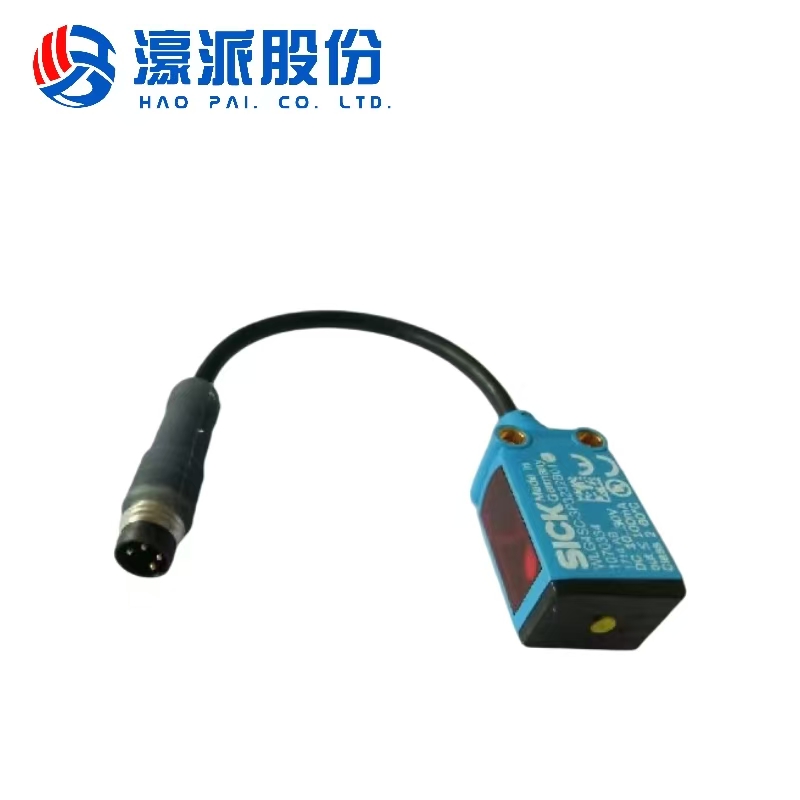

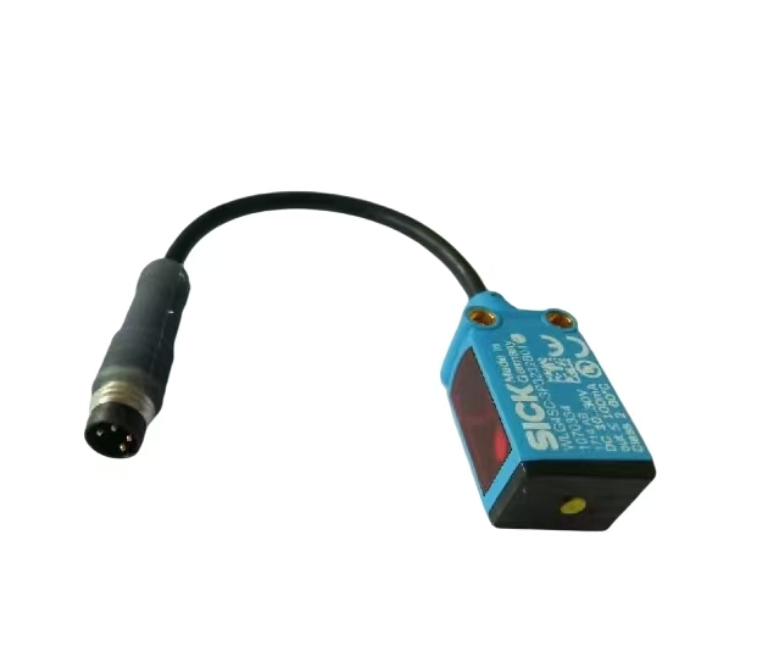

Homag Woodworking Machinery Sensor Reflecting Light Barrier

1.High Detection Precision

Adopts the principle of mirror-reflective photoelectric sensing with automatic alignment. Equipped with a PinPoint-LED light source that ensures stable light spot size—measuring Ø45mm at a distance of 1.5 meters (wavelength: 650nm)—enabling accurate detection.

2.Long Sensing Distance

Boasts a maximum switching distance of up to 5 meters and a sensing distance of 3 meters, meeting the requirements for detecting large-sized workpieces in woodworking machinery.

3.Easy Setup & Diagnosis

Supports IO-Link and is equipped with a single teach-in button for convenient parameter setting and debugging. It also features device contamination level monitoring and teach-in quality diagnosis functions, allowing timely detection of the sensor’s operating status.

4.Rich Output Functions

Pin 2 is configured with multiple interfaces, including an external input terminal, teach-in input terminal, transmitter shutdown input terminal, detection output terminal, logic output terminal, and device contamination alarm output terminal, satisfying diverse control and monitoring needs. The switching output is PNP, with switch type switchable between light-on/dark-on modes. The maximum output current (Imax.) is ≤100mA, the response time of Q ranges from 300µs to 450µs, and the switching frequency can reach 1000Hz.

5.Wide Adaptability

Operates within a wide supply voltage range of 10V DC to 30V DC (with residual ripple <5Vss) and has a current consumption of 20mA, ensuring stable performance under varying voltage conditions. With an protection rating of IP67/IP66, the sensor features an ABS plastic housing and PMMA optical components. It can operate in an ambient temperature range of -40°C to +60°C and be stored at -40°C to +75°C, delivering excellent dustproof, waterproof, and environmental adaptability.

6.Special Functions

Equipped with a polarizing filter, it has the special function of detecting transparent objects. By activating the continuous threshold adaptation function (presettable by time), it is suitable for transparent object detection (e.g., 50% closing: 2-5s teach-in). This model is compatible with the WLG4SC-3P2232A91.

With its unique performance, the Woodworking Machinery Sensor - Reflective Grating (Model: 4008611536) plays a crucial role in various woodworking and related equipment. The specific applications are as follows:

Sawmill Equipment: In the production process of sawmills, the sensor is involved in the integrated speed and length measurement system. After the wood is cut, it can accurately measure the dimensions of the cut wood for quality inspection. Once there is a tolerance deviation in the dimensions, the sensor will feed back information to adjust the sawing equipment in a timely manner, thereby ensuring the stability of wood processing quality and meeting production standards.

In the production operation of woodworking machinery, sensors serve as the core detection components, and their performance directly affects production accuracy, efficiency, and stability. Woodworking machinery sensor reflection grating 4008611536 has become the preferred choice for many enterprises due to its unique advantage of adapting to woodworking scenes.
