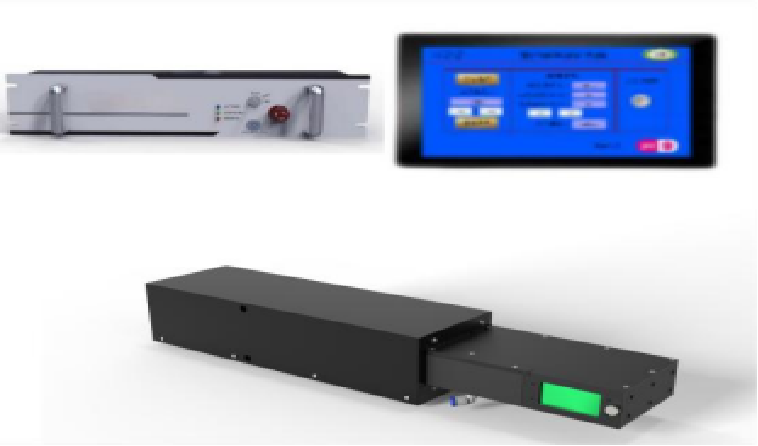

Viv laser-3KW C240-Laser-Head

Rectangular light spot, adjustable from 4.5mm * 15mm~* 52mm

● Uniform spot, uniformity>90%

● Small size and light weight, easy to integrate

High end adjustable rectangular edge sealing software control system

Model: Viv laser-3KW C240 laser head		unit	Numerical value (Spec)
Optical parameter 1	Edge sealing head output power 2	W	3000
	Power regulation range	%	10%~100%
	spot size	mm	4.5*15~52 adjustable
	working distance	mm	240     （customizable）
	Cable length	m	8       （customizable）
	Indicating optical power	mW	≥1
Electrical parameter 1	input voltage Vop	V	220V/50Hz
	Rated power consumption	W	6000
thermal parameters	Operating Temperature	℃	10-40
	Storage temperature	℃	0-60
	Nominal Refrigerating Capacity	W	4000（Recommended ≥ 1.5 horsepower chiller）
	Cooling water flow rate	L/min	≥20
mechanical parameters	Integrated machine weight	Kg	≤10
Software display screen	Screen and PLC	/	According to the customer's specified brand and size
	control software	/	Vitality high-end rectangular adjustable edge sealing software control system

All parameters were tested at 25 ℃. 2. This power refers to the output power value after passing through the edge sealing head.

Definition diagram of control line wiring for edge sealing head:
serial number	function		description
1	24+		24+, ≥4A
2	Spot size pulse 1		Spot size modulation
3	Spot size direction 1		Spot size modulation
4	Spot size limit 1		Maximum limit of light spot
5	Spot size limit 2		Minimum limit of light spot
6	Spot position pulse 2		Spot position modulation
7	Spot position direction 2		Spot position modulation
8	Spot position limit 1		Maximum limit of spot position
9	Spot position limit 2		Minimum limit of spot position
10	Spot size motor enable		Spot size motor enable
11	Enable the spot position motor		Enable the spot position motor
12	24V-		24V-(Yellow green line)

Product Application Scope

Laser furniture edge banding

● Laser quenching

● Laser drying

● Other surface treatment applications

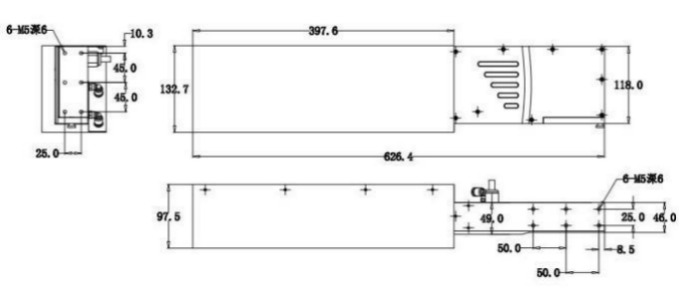

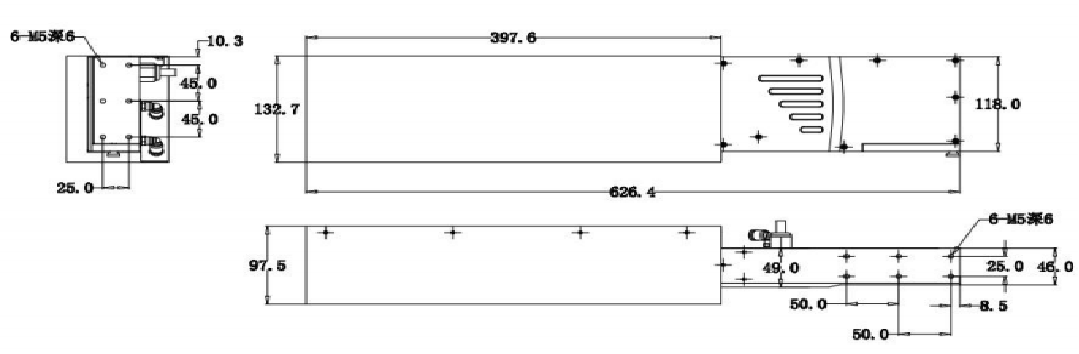

Overall dimensions of all-in-one machine：503*118*95

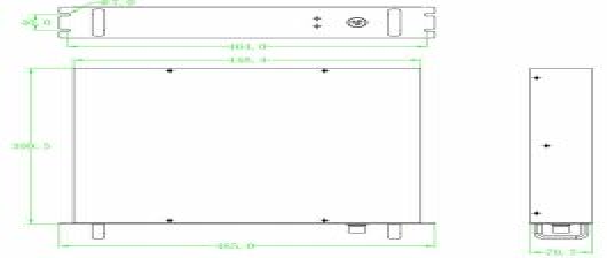

Power supply dimensions：399*448*80
