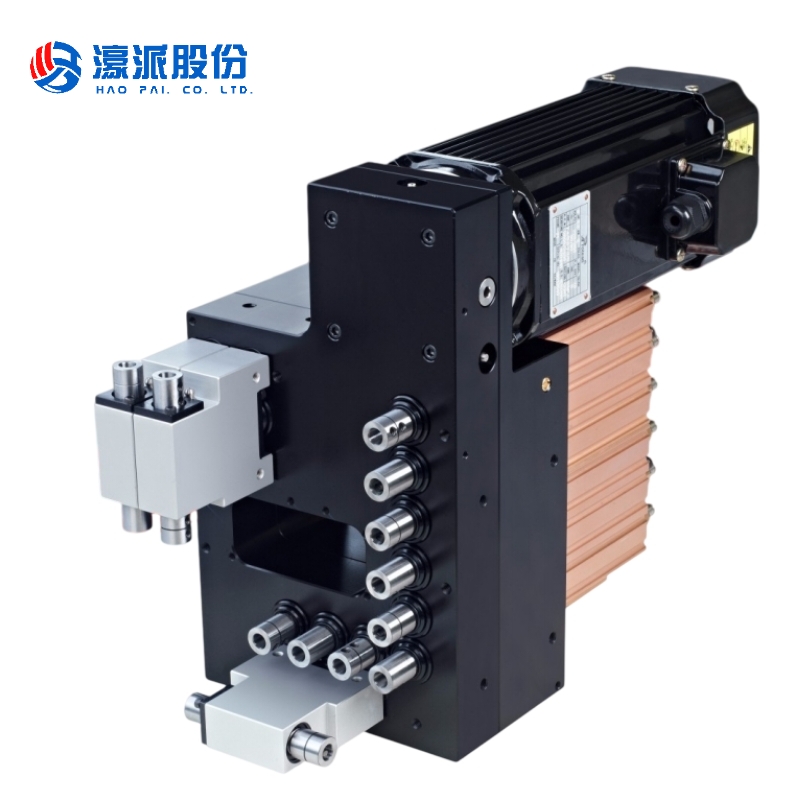

Protean Brand Numerical Control Drilling Grinding Motor 6+3 Spindles
- Protean
- Made in foshan China
- 2-3days
- 2 pcs month
- PD-CNC-A9B3
1.Application Scenarios: Optimized for high-speed, high-finish drilling of difficult-to-machine materials like carbon fiber composites (CFRP), fiberglass (GFRP), and precision ceramics. It is the ideal choice for aerospace, racing car manufacturing, and high-end electronic components.
2.R&D Technology: Utilizing Nanocrystalline Diamond Coating (NCDC) technology and a unique flute design, it delivers exceptional wear resistance, lower cutting forces, and smooth chip evacuation. Tool life is increased by over 50% compared to standard diamond drills.
3.Collaborative Cases: Designated as a long-term drilling solution by several aerospace and automotive technology leaders. It guarantees exceptional hole accuracy and consistency in the mass production of their core components, eliminating delamination or burrs.
4.Production Capability: Supported by German-imported 5-axis CNC grinding machines and a fully automated coating line, every drill bit achieves micron-level geometric accuracy and uniform coating, ensuring stable and reliable performance.
5.Sales & Inventory: As a bestselling star model highly praised in European and American markets, its annual sales lead the category. Our bonded warehouses in key global markets maintain ample stock for core models, ensuring rapid dispatch within 72 hours to keep your projects on schedule.
Product Advantages and Features
1.Exceptional Wear Resistance：
Superhard diamond coating significantly extends tool life, ideal for high-intensity continuous machining.
2.High-Precision Machining：
Unique cutting edge design and rigid structure ensure accurate hole dimensions and excellent wall surface finish.
3.Efficient Chip Evacuation：
Optimized flute structure enables smooth chip removal, reducing interruptions and heat buildup.
4.Broad Applicability：
Designed for challenging materials (e.g., CFRP, ceramics, hardened plastics), while maintaining compatibility with common metals.
5.Enhanced Stability：
Strict production controls guarantee consistent performance across all tools, minimizing processing failures.
Product Technical Parameters
Model Number | PD-CNC-A9B3 |
Spindle Type | Built-in Motor Spindle |
Rated Power | 9 kW |
Maximum Torque | 32 Nm |
Speed Range | 200-10,000 rpm |
Tool Magazine Capacity | 8 tools (12 tools optional) |
Tool Change Time | ≤3 sec (tool-to-tool) |
Tool Interface | HSK-A40 |
Repeat Positioning Accuracy | ±0.005 mm |
Cooling Method | Internal oil cooling + External water cooling |
Air Pressure Requirement | 0.6-0.8 MPa |
Protection Rating | IP54 |
Mounting Orientation | Vertical/Horizontal |
Product Application Scope
1.Advanced Composite Materials:
Optimized for precision drilling in Carbon Fiber Reinforced Polymer (CFRP) and Glass Fiber Reinforced Polymer (GFRP), effectively preventing delamination, fuzzing, and tearing.
2.High-Hardness Non-Metallic Materials:
Excels in machining various engineering ceramics, quartz glass, semiconductor wafers, and ultra-hard carbides.
3.Reinforced Plastics:
Ideal for processing glass-filled or carbon-filled rigid plastics, PEEK, and similar materials, delivering burr-free holes with high-quality wall finishes.
4.Non-Ferrous Metals:
While specifically designed for non-ferrous metals, it also offers significantly longer tool life and stability than conventional carbide drills when machining high-silicon aluminum alloys and hard copper alloys.
5.Key Industrial Sectors:
Widely used in high-value manufacturing industries such as aerospace, automotive lightweight components, precision electronics, wind turbine blades, and sports equipment.
Product Description
Product Type | Solid Carbide CNC Diamond Drill Bit |
Coating | Advanced diamond-coated surface |
Shank Type | Straight shank with a flat end |
Primary Application | Precision drilling of ultra-hard, non-ferrous materials |
Key Materials | Engineered for carbon fiber composites, fiberglass, ceramics, and hardened plastics |
Performance Advantage | Exceptional wear resistance and extended tool life |
Operational Benefit | Superior heat dissipation and reduced cutting force |
Ideal For | High-speed, high-precision machining in demanding CNC applications |
The PD-CNC-A9B3 CNC drilling power unit employs a modular architecture, incorporating a 9kW built-in motor spindle and an intelligent servo drive system. . Utilizing an HSK-A40 tool holder interface, it is compatible with an 8-station automatic tool changer, achieving tool change times of ≤3 seconds. The housing is constructed from high-strength alloy steel with an IP54 protection rating and features a multi-sensor intelligent monitoring system for real-time tracking of operational parameters. Well-suited for high-efficiency drilling applications in precision component and mold manufacturing, it supports seamless integration into automated production lines.This model offers a broad speed range of 200-10,000 rpm with a peak output torque of 32 Nm
