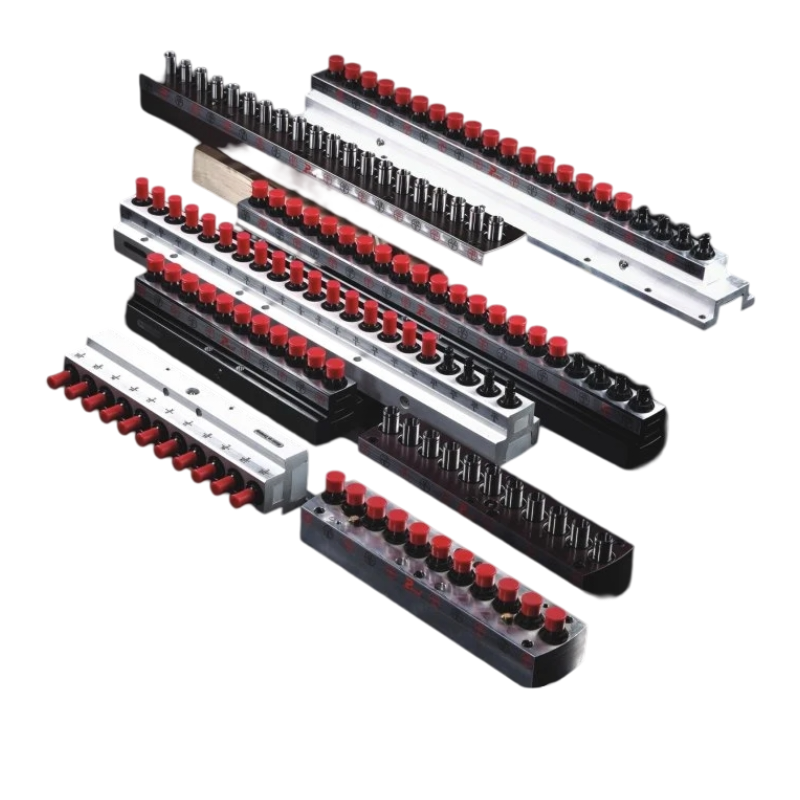

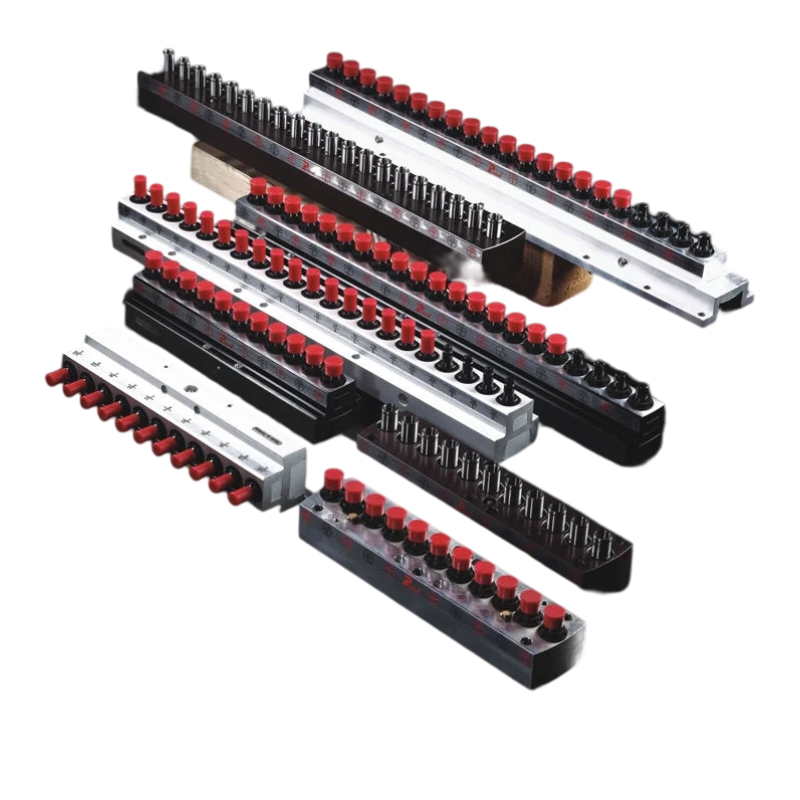

Protean Pl Line Boring Head Woodworking Machinery Accessories

1.Modular and Integrated Design

• The drilling head is a complete power unit (drilling package) with a modular design, facilitating installation and maintenance.

• It can be easily integrated as a standard module into automated production lines, such as connecting with electronic saws, edge banding machines, CNC machining centers, etc., enabling automatic loading/unloading and processing.

2.High-Density, Flexibly Configurable Spindle Layout

• Up to 32 independent spindles can be configured, typically mounted on one or two parallel guide rails.

• Each spindle position can be individually adjusted manually according to the hole pattern layout of the board, offering extreme flexibility. Operators simply loosen the locking mechanism, move the spindle along the scale to the predetermined position, and relock it to complete the setup.

3.High-Rigidity Structure and Precision Guarantee

• Constructed with high-strength cast iron or steel to ensure overall structural stability and vibration-free operation even when all 32 spindles work simultaneously.

• Precision guide rails and reliable locking mechanisms guarantee repeatable positioning accuracy after spindle adjustments, ensuring consistent hole positioning.

4.Highly Efficient Synchronized Drilling

• All spindles are synchronously driven by a powerful main motor via transmission systems such as gears, toothed belts, or universal joint shafts, ensuring consistent rotational speed for all drill bits.

• A single feed action can simultaneously process up to 32 holes in the board, delivering unparalleled efficiency.

5.Multiple Configuration Options

• Typically available in two basic forms: horizontal row drilling and vertical row drilling.

• May support different sizes of drill chucks (e.g., JT2, JT3) and offer advanced optional features such as internal cooling functionality and servo motor-driven automatic shifting.
