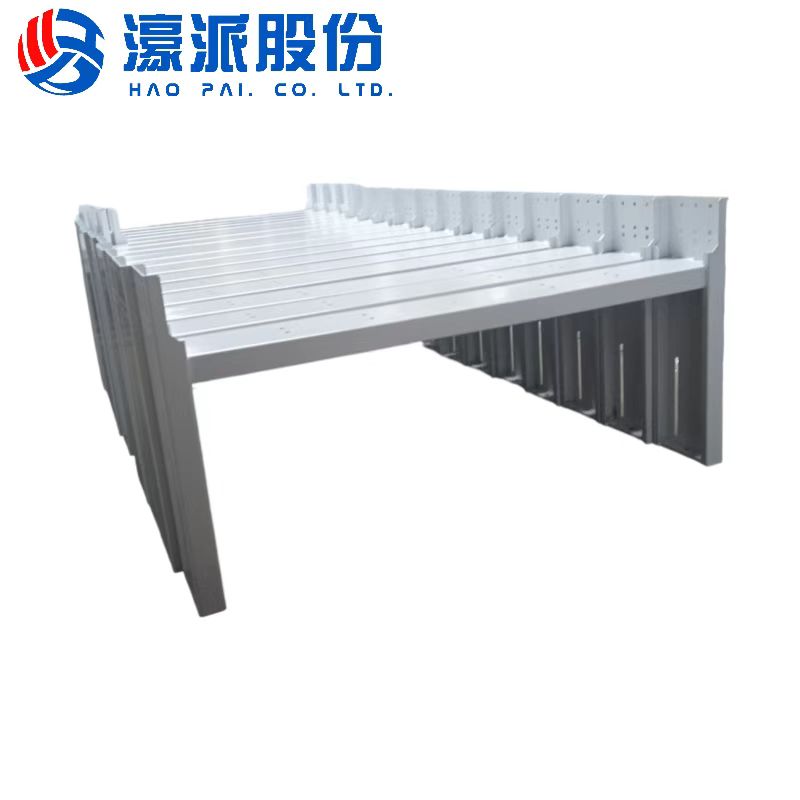

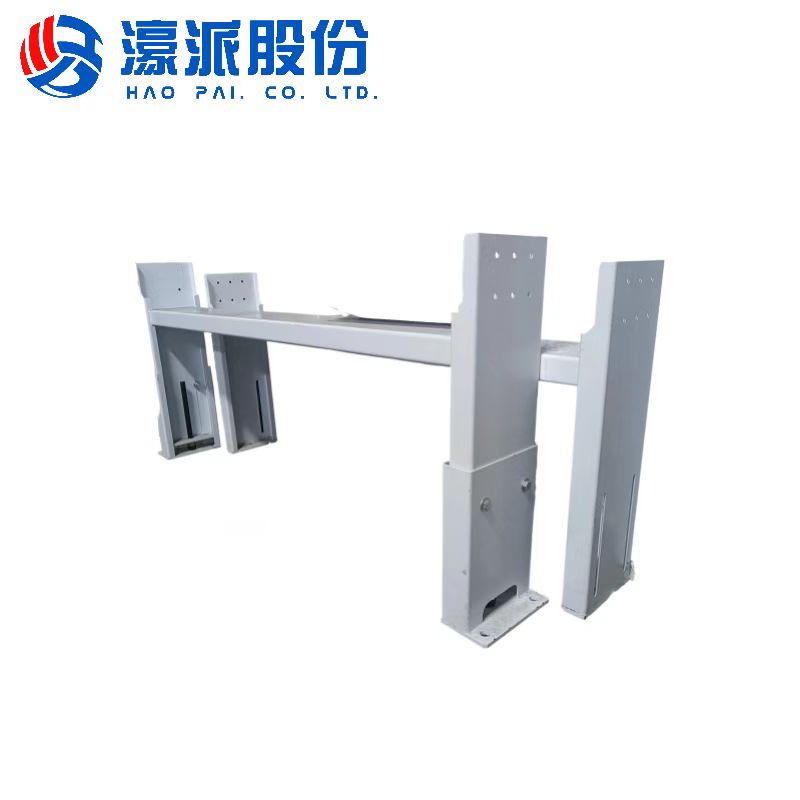

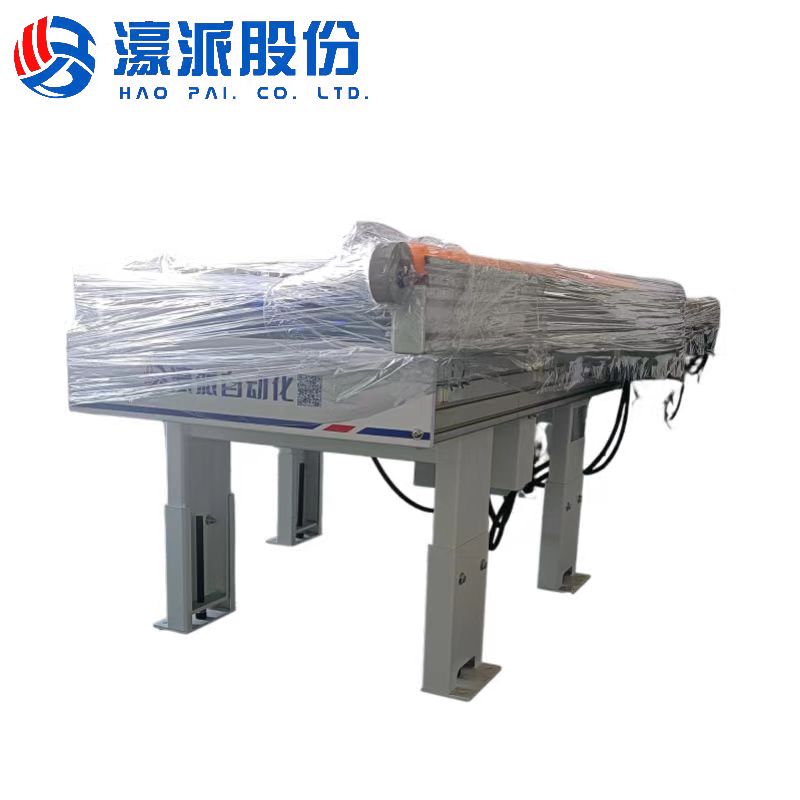

Roller Conveyor Support Legs
- Haopai
- Foshan, Guangdong,China
- 10-15 days
- 20PC
- Customizable
- L1250MM
Although conveyor roller support feet are "small components", their structural design directly affects the stability, efficiency and service life of the conveying system, and they are a key link in balancing functionality and economy.
Product Advantages and Features
1.Enhance overall stability
The supporting feet provide stable support for the roller through rigid connection with the ground or frame, reducing the shaking or displacement of the roller caused by material impact and equipment vibration during the conveying process, avoiding problems such as material deviation and jamming, and ensuring the smooth flow of the conveying process.
2.Height-adjustable for flexible scenarios
Most supporting feet are designed with a height adjustment function (such as thread adjustment, telescopic structure). They can accurately adjust the height of the roller according to the flatness of the ground, the requirements of conveying height, or the docking requirements with other equipment, so as to adapt to different working conditions (such as uneven ground, docking of multi-layer conveying lines, etc.) and improve the versatility of the equipment.
3.Simplified installation and maintenance
Standardized supporting feet usually adopt a modular design, which requires no complex debugging during installation and can be quickly positioned and fixed. During later maintenance, it is sufficient to disassemble or replace the supporting feet individually without the need to disassemble the roller as a whole, thereby reducing labor costs and downtime.
Product Technical Parameters
| Parameter Item | Description | Typical Value Range |
| Support Foot Type | Frame, Adjustable Type | Column type, Adjustable thread type |
| Material | Domestic: A3; International Standard: Q235 | 50 Manganese steel (quenched hardness HRC 48-52), Cast iron (HT200), Stainless steel (304), Carbon fiber composite material |
| Size | Width: 1250MM | Height: 50-300mm (adjustable type ±30mm) (stiffener thickness: 3-5mm) |
| Mounting Hole Specification | Bolt diameter, Hole spacing | M8-M24 (e.g., M16×1.5, spacing 120mm) |
| Load-bearing Capacity | Static/dynamic load (single foot) | 200-600kg (thread type); 500-2000kg (welded type) |
| Surface Treatment | Anti-rust and wear-resistant treatment | Galvanizing (thickness ≥8μm), Chromium plating, Plastic spraying (epoxy resin) |
Product Application Scope
Conveyor roller support feet are widely used in various conveying systems, including: express sorting lines, e-commerce warehouse conveyor rollers, material transfer in production lines, and heavy-duty material conveying lines in mining and metallurgy industries.
Product Description
| Core Structure | Supporting Main Body | As the load-bearing core, it is mostly made of high-strength steel through rolling or welding. Its shape is mostly columnar, square tube or angle steel structure, and the thickness is designed according to the load-bearing requirements to ensure deformation resistance. |
| Adjusting Mechanism | Most supporting feet are equipped with height adjustment components, commonly thread adjustment structures or telescopic bolt structures. The adjustment accuracy is usually 1-5mm, which can adapt to uneven ground or height differences of docking equipment. | |
| Base | The part in contact with the ground or frame, with an area larger than the cross-section of the supporting main body to disperse pressure. | |
| Core Functions | Precise Positioning and Level Calibration | By adjusting the height of a single supporting foot, it can ensure that the axes of multiple sets of rollers are kept on the same horizontal plane (or arranged according to the designed inclination angle), avoiding material accumulation, jamming or reduced conveying efficiency caused by roller inclination. |
| Load Dispersion and Protection | The supporting feet disperse the weight of the rollers and materials (static + dynamic impact) to the ground, reducing the pressure per unit area (especially for vulnerable grounds such as epoxy floors and cement floors). At the same time, they reduce the radial force on the roller shafts and bearings, prolonging the service life of core components. | |
| Vibration Scenarios | Some supporting feet have built-in shock absorption structures (such as springs, rubber buffer layers) to absorb impact vibrations during conveying and reduce noise. | |
| Main Classifications | Floor-standing | Directly placed or fixed on the ground, independently supporting a single set of rollers. |
| Fixed type | Height is not adjustable, suitable for scenarios with flat ground and fixed conveying height, with simple structure and low cost. | |
| Adjustable type | With thread or telescopic adjustment functions, suitable for uneven ground or scenarios requiring frequent height adjustment. | |
| Frame type | Welded or bolted to the conveying frame, suitable for integrated conveying lines. |
