Woodworking PLCs (Programmable Logic Controllers)

1、The m

odule types are rich and the selection is flexible.

Users can flexibly configure according to actual needs, which is convenient for expanding digital input/output channels or analog input/output channels

2、High-precision analog quantity processing

The analog expansion module can connect up to 31 kinds of standard resistive temperature sensors and 7 kinds of standard thermocouples, with extremely high measurement accuracy, which can precisely process analog signals, meeting the needs for high-precision measurement and control of analog parameters such as temperature.

3、Flexible power supply method

Some expansion modules support power supply from PLC ports or external independent 24V power supply, with overvoltage, overcurrent, and reverse connection protection. in cases where PLC power supply is inconvenient, stable operation of the module can be ensured through external power, effectively protecting equipment safety.

4、Adaptive baud rate

Some expansion modules can automatically adapt to different baud rates, supporting up to 1.5M baud rate, ensuring fast and stable data transmission, reducing issues caused by incorrect baud rate settings, and making communication more stable and reliable

5、Programming debugging is convenient

For different programming software, such as STEP 7-Micro/WIN, STEP7, and TIA Portal, there are detailed and easy-to-stand download and debugging guides, allowing engineers to get started quickly and reducing the technical threshold.

1、Industrial automated production line

It can be used to collect signals from devices such as buttons, limit switches, photoelectric sensors, etc., to input the switch signal on site into the P, to achieve control and monitoring of the production process.

2、Warehousing and logistics fields

It can be connected to devices such as barcode scanners, and the scanned data can be imported into the PLC to achieve precise control of the sorting path It can also be used to monitor the status of goods on the shelf, the operation of the conveyor belt, etc. With its stable transmission characteristics of 500- shielded wire, it can achieve reliable acquisition of shelf signals across regions.

3. Energy management system

The on-off state of the switch in the power system can be collected, such as the switch state monitoring in the distribution box, to provide basic data for energy collection and analysis, and to help achieve the rational allocation and management of energy.

4. Building automation

Suitable for smart buildings, can connect door and window sensors, temperature sensors, smoke detectors, etc., to achieve automatic control of air conditioning, lighting, fire and other systems.

5、Small mechanical equipment control

Can be used as a control module for small packaging machines, heating systems and other equipment, receiving signals from operation buttons and sensors, controlling the operation, stop, temperature and other parameters of the equipment, and realizing the automatic operation of the equipment.

6、Water treatment system

Can be used to monitor various switch signals in the process of water treatmen

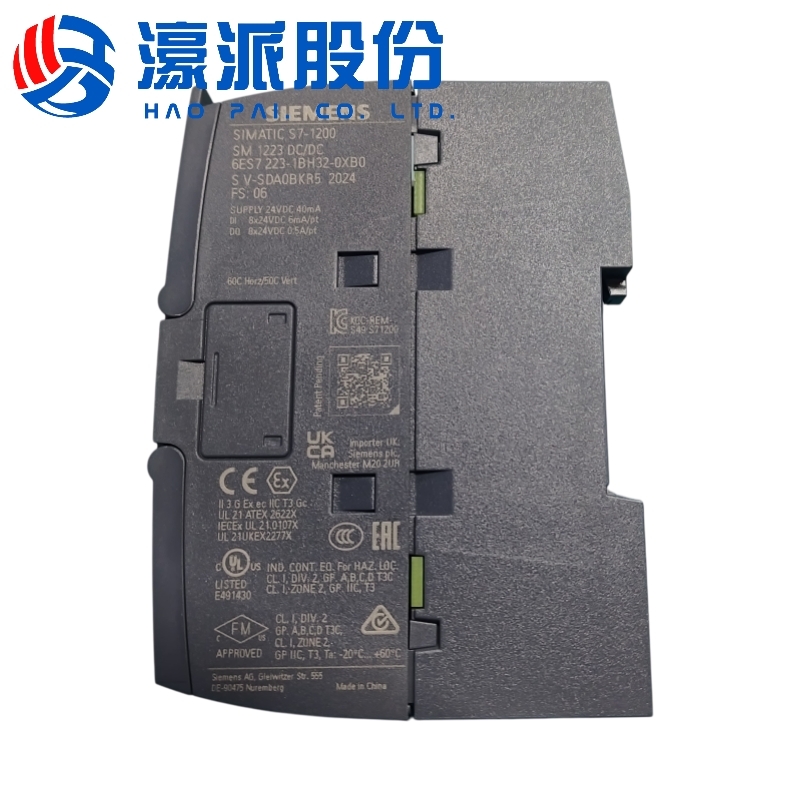

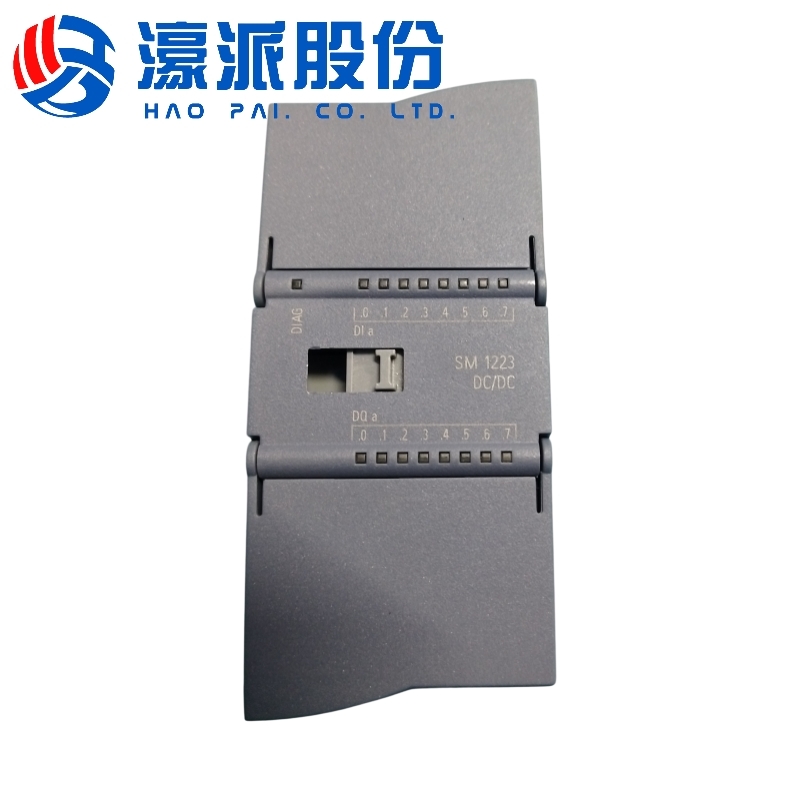

1. Functional characteristics

The external digital signal level in the process can be converted into the internal signal level of the S7-1200 controller, realizing the conversion of signal. The input delay can be parameterized and can be selected from 0.2ms, 0.4ms, 0.8ms, 1.6ms,3.2ms, 6.4ms and 12.8ms, and can be divided into 4 groups for flexible adaptation to different signal acquisition needs

2. Application scenarios

Provide more digital quantity inputs for the native I/O of the CPU, which can make the controller flexibly adapt to the relevant task requirements

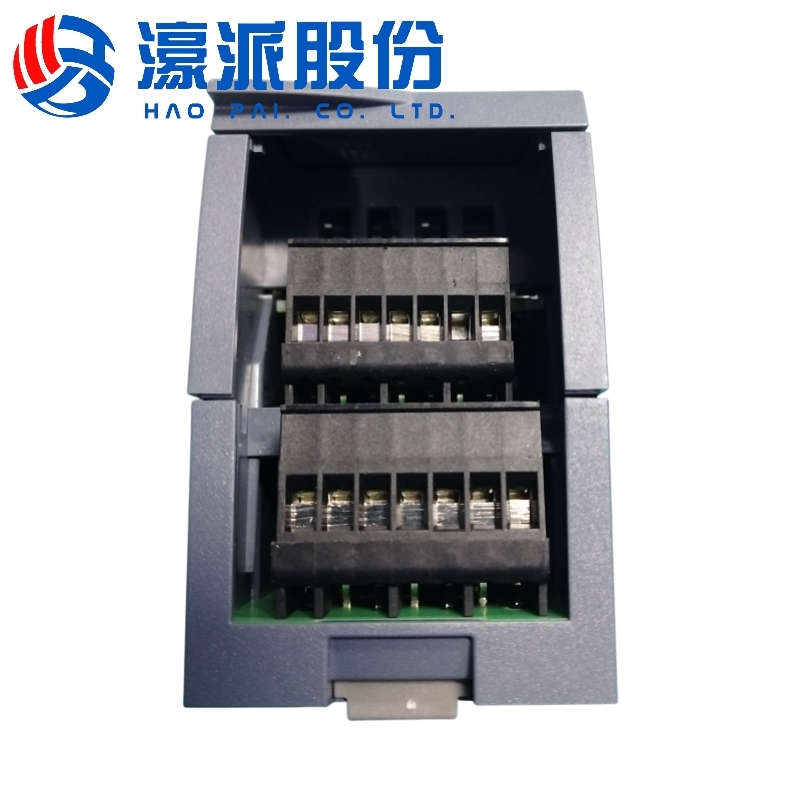

3. Connection method

Support leakage type/source type wiring, this wiring method is compatible with a variety of field equipment, can reduce the complexity of wiring, and is convenient for users to according to the actual situation.

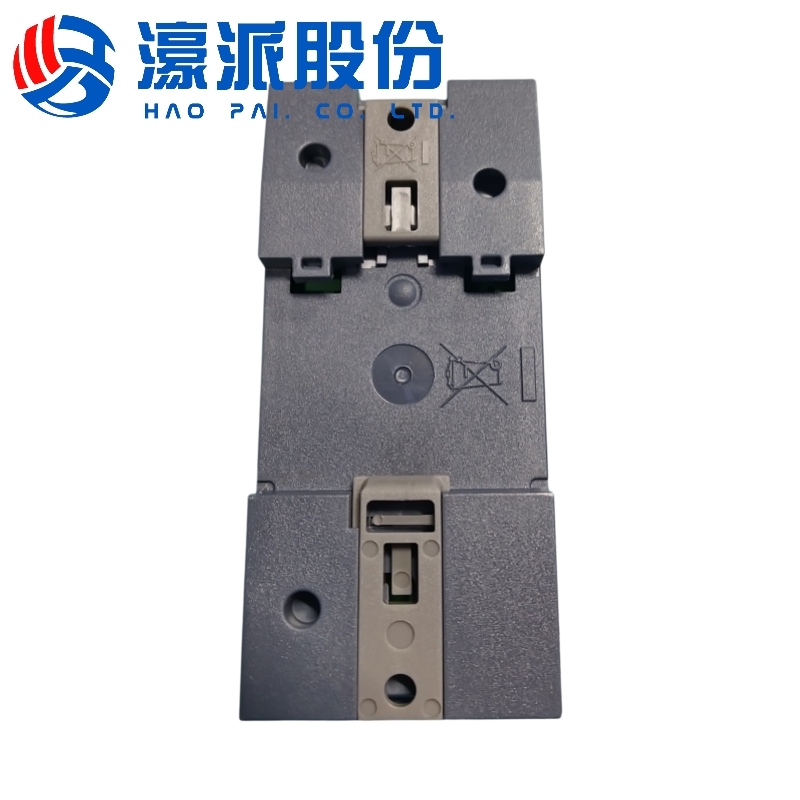

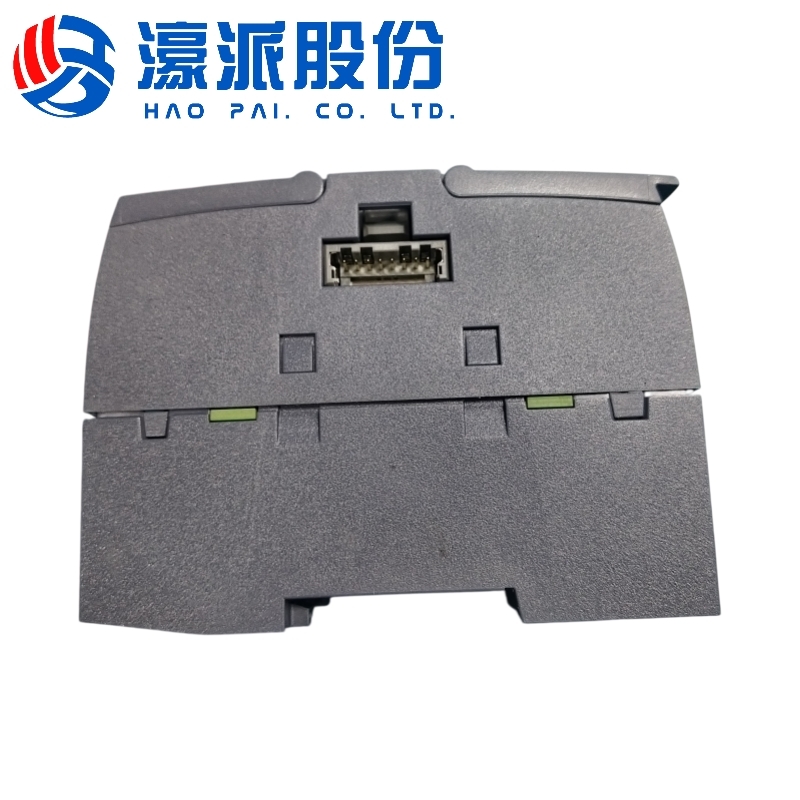

4. Structural design

It adopts a modular structure, which is convenient to install and maintain, and its size is compact. It can save the installation space in the electrical control cabinet, and weight is about 170g, which is relatively convenient to transport and install

5、Electrical performance

Industrial-grade electrical design is adopted, with excellent anti-interference performance, stable and delay-free 24VDC input signal, which can operateably in relatively complex industrial electromagnetic environment, ensuring the accuracy and stability of signal input
