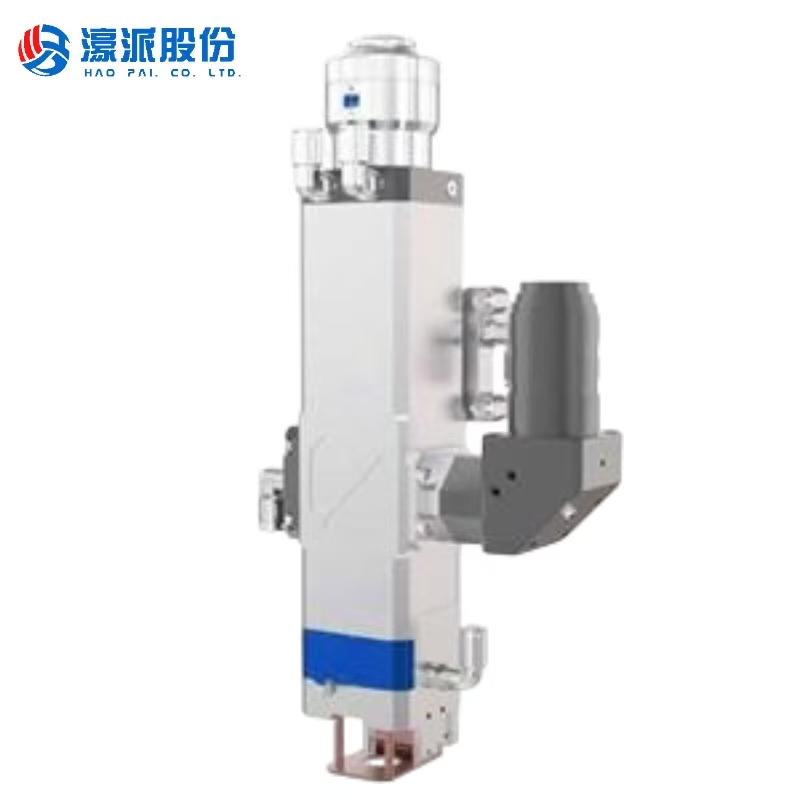

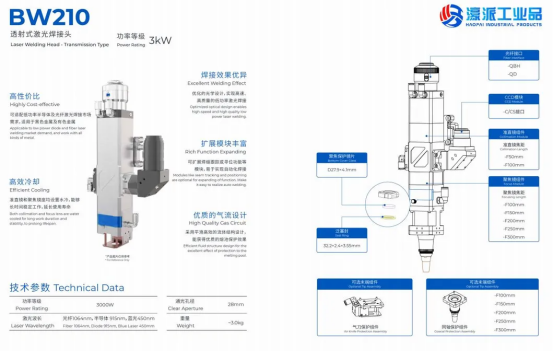

3kw Bw210 Transmission Type Laser Welding Head

Excellent Optical Performance & High Welding Precision: Equipped with high-transmittance optical lenses (transmittance ≥ 98%) and a precision focusing system, the minimum laser energy focusing diameter can reach 0.1mm. It can act on the welding area accurately, reducing the heat-affected zone (HAZ) area. It is especially suitable for precision welding of thin metal sheets such as stainless steel and aluminum alloy, avoiding workpiece deformation or welding deviation.

Transmission-Type Design with Low Energy Loss: The core adopts a full transmission-type optical structure. The laser is directly transmitted and focused through the lens group, without energy attenuation issues of reflective structures. The energy utilization rate is increased to over 95%. In the 3kW power adaptation scenario, it can ensure stable energy output during welding, avoiding problems such as discontinuous weld beads and cold welding caused by energy loss.

Convenient Operation & Low Maintenance Cost: Adopting a modular lens design, the lens group can be disassembled and assembled without professional tools, and daily cleaning or replacement only takes 3-5 minutes. At the same time, it is equipped with a visual window, which can observe the state of the welding area in real time, facilitating operators to adjust parameters. The overall structure is simple, with few wearing parts, and the annual maintenance cost is only within 5% of the total equipment cost.

Applicable to low power diode and fiber lase welding market demand, and work with all kinds of metal

Both collimation and focus lens ae water cooled fo long work duration and stability, to polong lifespan

Optimized optical design enables high-speed and high quality low power lase welding

Modules like seam tracking and posit1on1ng a e optional fo expanding of function. Make it easy to realize auto welding
