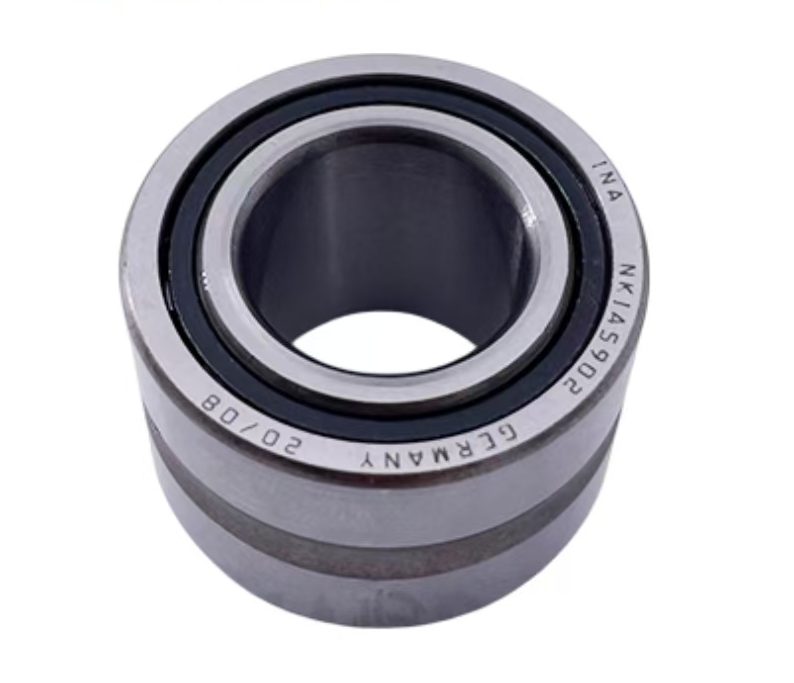

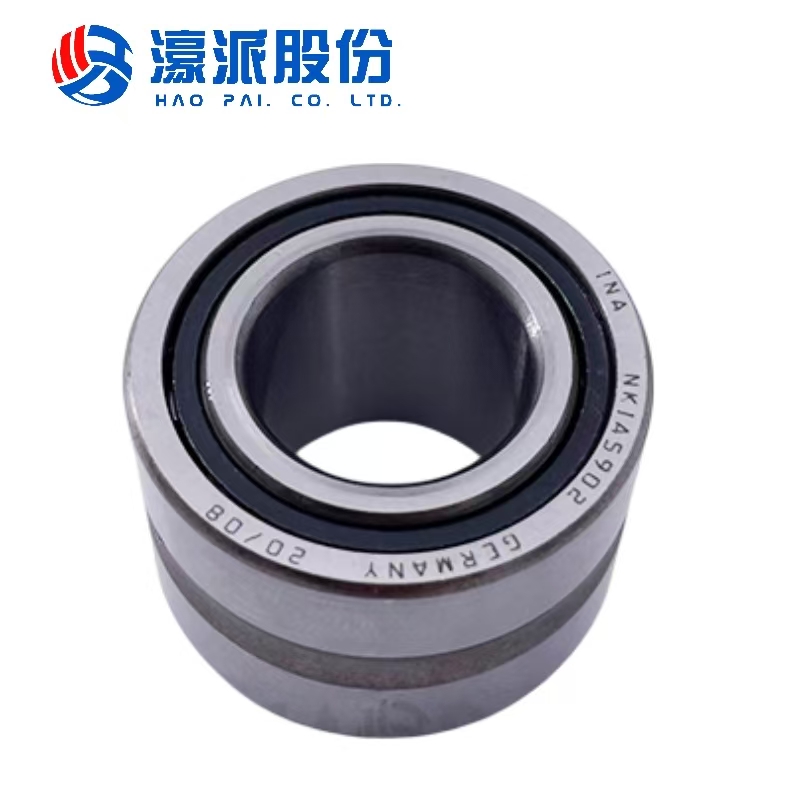

4-006-10-0071 Angular Contact Ball Bearing INA Nkia 5902 Homag

1.High Load-Carrying Capacity

This bearing is a combination of a radial needle roller bearing and an angular contact ball bearing, enabling it to withstand both large radial loads and light one-way axial loads simultaneously. Its basic dynamic radial load rating (Cr) is 12,000 N, basic static radial load rating (C0r) is 13,600 N, basic dynamic axial load rating (Ca) is 2,900 N, and basic static axial load rating (C0a) is 4,200 N, ensuring stable operation under various working conditions.

2.Excellent High-Speed Performance

It features high limiting speed and reference speed. The limiting speed of INA NKIA 5902 can reach 21,600 r/min, and the reference speed is 17,000 r/min, making it suitable for high-speed rotating mechanical components.

3.Compact Structure

 The bearing has a low cross-sectional height, with an inner diameter of 15 mm, outer diameter of 28 mm, and width of 18 mm. This compact design makes it particularly suitable for space-constrained applications, providing reliable support within limited space.

4.Long-Life Design

Some models, such as the INA NKIA5902-XL, adopt the X-life long-life design. By optimizing the bearing's material, manufacturing process, and structural design, it enhances the bearing's service life and reliability, while reducing maintenance costs and downtime.

5.Easy Installation

 The inner and outer rings of the angular contact ball bearing can be separated, making the installation and adjustment process more convenient and flexible. Suitable installation methods can be selected according to different application requirements.

NA NKIA 5902 is a needle roller/angular contact ball bearing, not a simple angular contact ball bearing. It may have the following applications in woodworking machinery:

Woodworking machine spindle: INA NKIA 5902 bearings may be used in the spindle parts of woodworking machines such as milling machines and drilling machines. These machine tools require the spindle to withstand radial and axial loads during operation, and to be able to rotate at high speeds. INA NKIA 5902 bearings have high load-bearing capacity and high-speed operating performance, which can meet the working requirements of woodworking machine tool spindles.

The structural advantage of this bearing is the combination of "needle roller+angular contact ball", which balances space and load-bearing capacity, high speed+stability, matches equipment operating conditions, cost-effectiveness+standardization, reduces application barriers, and accurately matches core applications such as woodworking machinery.
