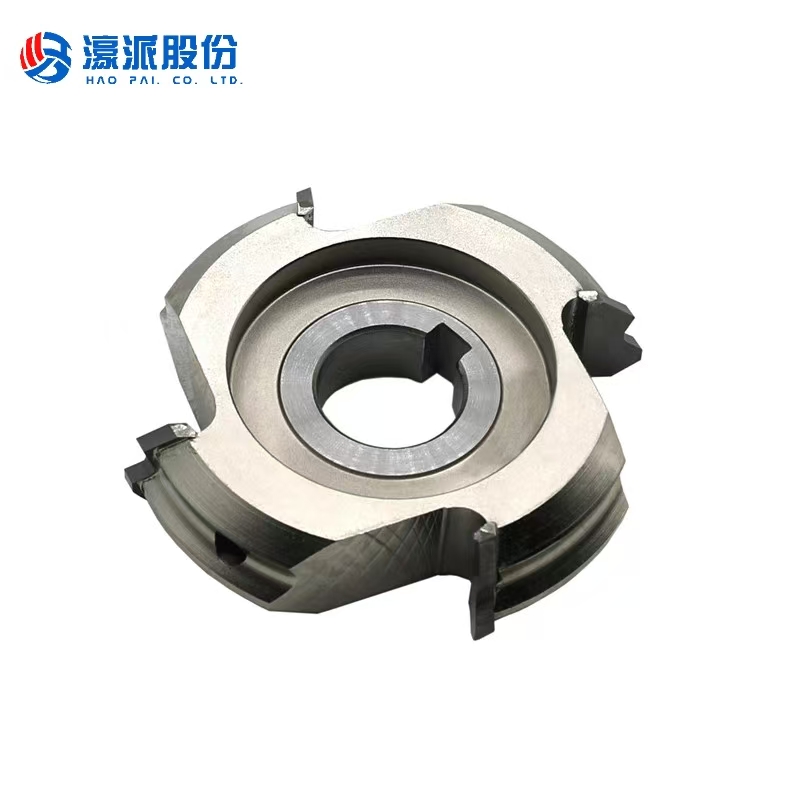

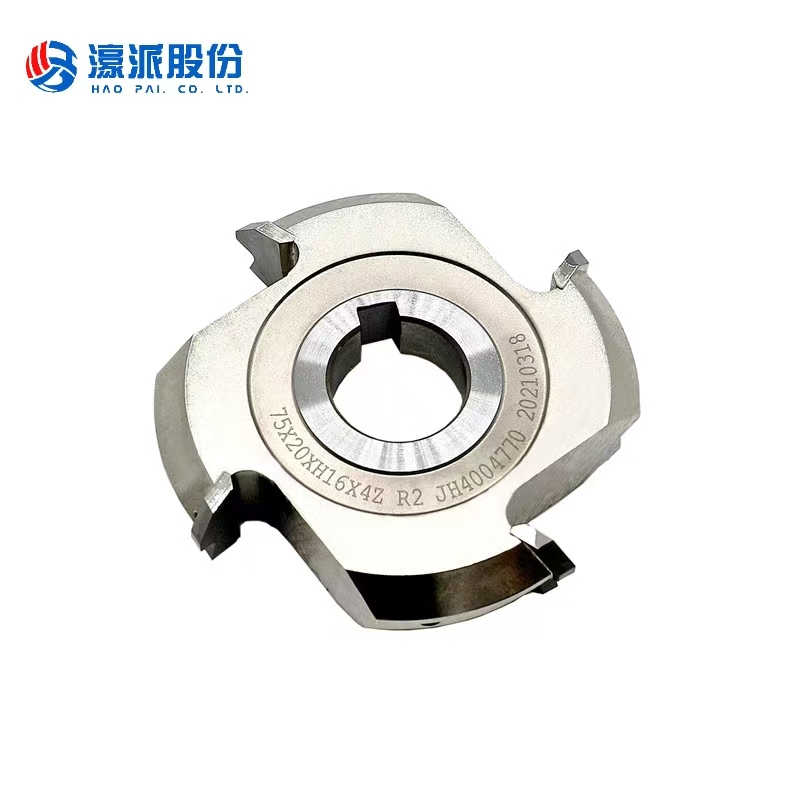

75*20*H16*4z R1.5 Edge Banding Machine Fine Trimming Circular Arc Knife

  • HaoPai
  • Made in China
  • 10 days
  • 50 Pcs month
  • 75*20*H16*4Z R1.5
  • 75*20*H16*4Z R1.5
The 75×20×H16×4Z R1.5 arc-trimming cutter is the core tool for precision rounding of edges after high-end panel furniture edge banding. It is widely used in whole-house customization, furniture factories, and door manufacturing to enhance both aesthetics and safety.

Product Advantages and Features

advantage


1. 1. Ø75 mm mega-diameter guarantees a full R1.5 profile in one pass, eliminating re-trimming and boosting throughput by 30 %+.
2. 4-edge symmetric layout with G2.5 dynamic balance runs vibration-free at 12 000 rpm; achieves Ra ≤0.4 µm finish—no manual sanding needed

3. German sub-micron carbide plus TiAlN nano-coating (2000 HV, 1100 °C) delivers 3-5× longer life than standard knives.

4.  Mirror-polished arc edge cuts resistance by 20 %; eliminates chipping, whitening and burrs, perfect for matt & high-gloss edge bands.

5. True R1.5 mm profile held to ±0.02 mm, fully complies with child-safety & EU/US export corner-radius norms.



Product Technical Parameters

Outer Diameter‌: 75mm (marked Φ75)

Bore Diameter‌: 20mm (marked Φ20)

Head Thickness‌: 16mm (marked H16)
Number of Heads‌: 4 (marked 4Z)

Head Radius‌: 1.5mm (marked R1.5)

Product Application Scope

application area


From kitchen cabinets to wall panels, standard or 60 mm thick, the 75×20×H16×4Z R1.5 arc knife is the go-to solution for R1.5 rounding that is chip-free and ready to use without sanding.
