CNC Automatic Tool Changers

Core Advantages: HSK63F Rigidity & Precision

1.High-Speed Stability (G2.5 Dynamic Balance)

Factory-optimized balance reduces spindle vibration, extends bearing life.

Short-taper design (standardized HSK length) minimizes centrifugal displacement, supports **15,000+ rpm operations

2.Dual Contact (Taper + Face

Minimizes micro-vibrations during high-speed rotation

, ideal for heavy-duty milling (e.g., steel roughing, titanium alloys)

HSK-F achieves simultaneous contact with spindle via taper (1:10) and flange face, providing 30%+ higher bending/torsional rigidity than BT holders (taper-only contact)

3.Intelligent Numerical Control System

Reduces tool runout, improves surface finish (especially finishing).

Shrink-fit structure ensures collet/holder co

ncentricity, combined with HSK-F precision manufacturing for **μm-level repeatability

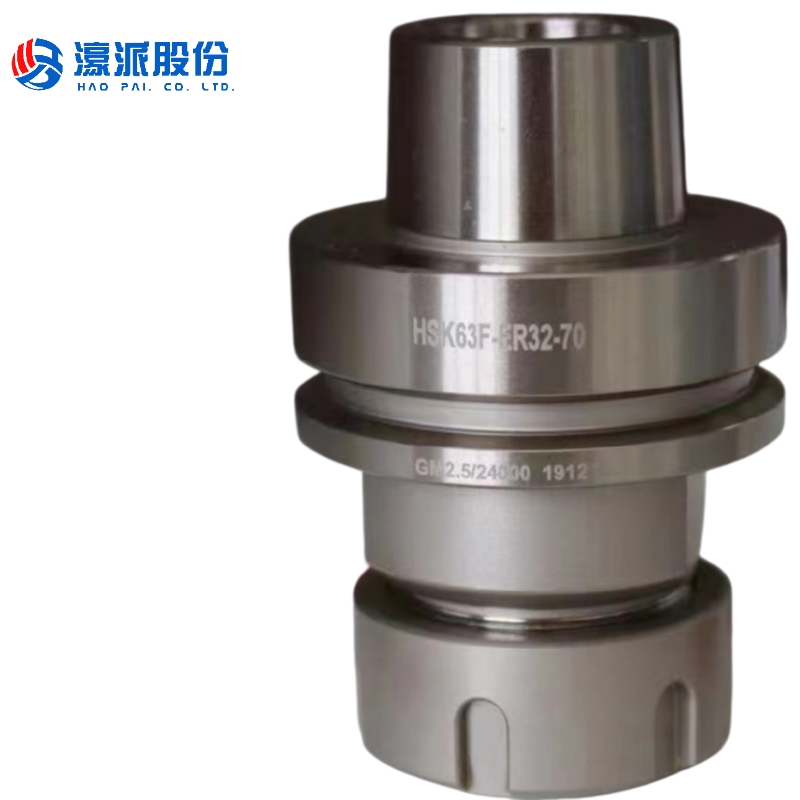

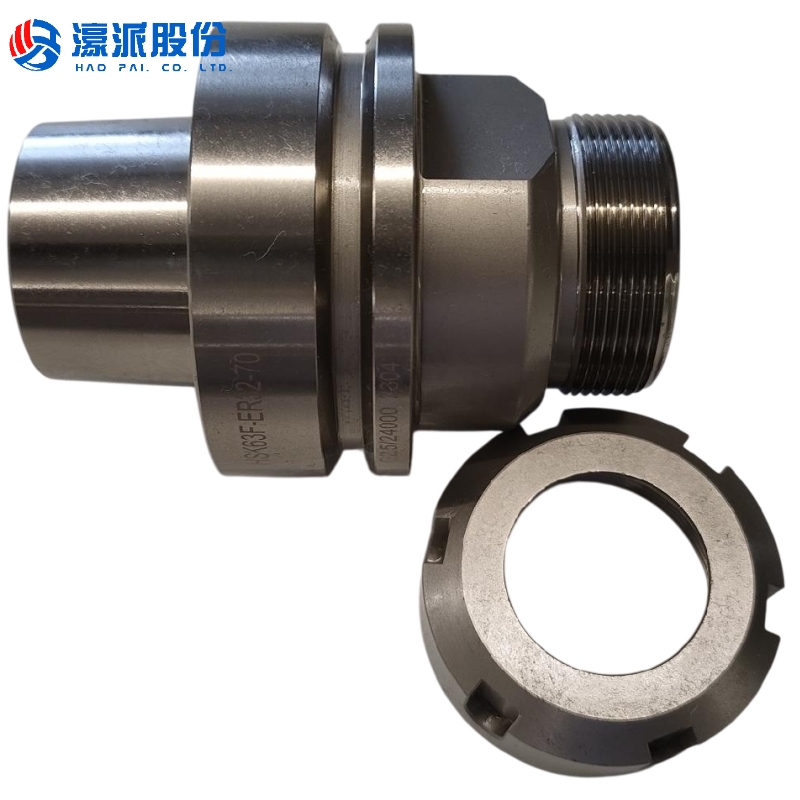

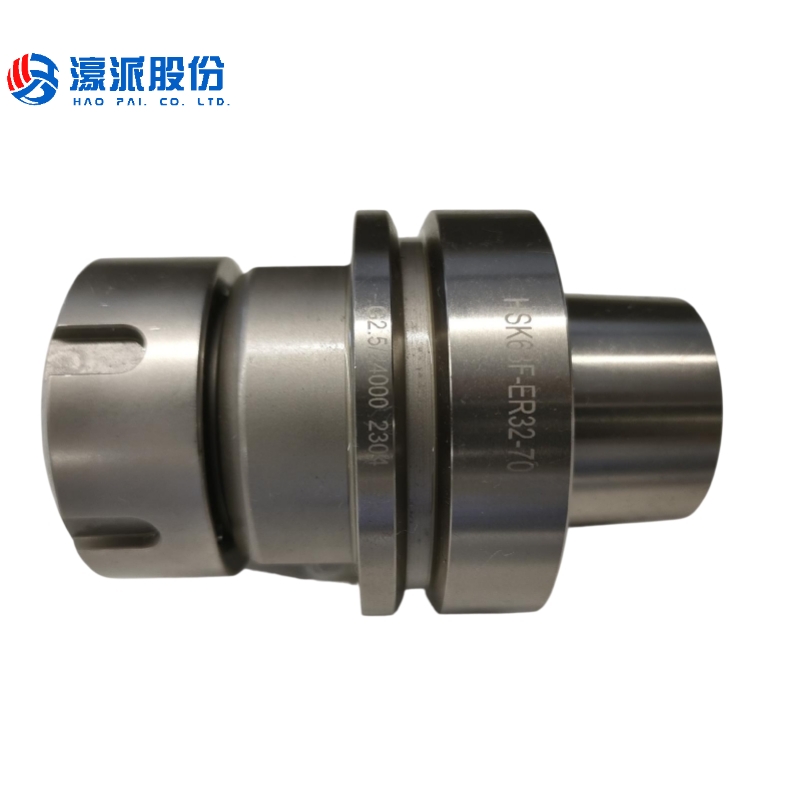

HSK63F-ER32-70 Specific Design Advantages

1.High-Torque Transmission

HSK-F drive keys transfer higher torque (vs. HSK-E), ideal for **High Feed Milling (HFM)

2.Lightweight Design

Compact 63mm flange suits small vertical/horizontal machining centers

3.Short-Length Rigidity (70mm)

Short overhang enhances system stiffness, reduces chatter—especially in **deep-cavity machining** (e.g., automotive molds)

20% higher cutting stability vs. long holders (>100mm)

ER32 Collet System Flexibility

1.ER32 Collet System Flexibility

Ideal for high-mix/low-volume production (e.g., mold making, precision parts)

Clamping Range: φ1–20mm** (via collet change), covering drills, end mills, taps, and most small/medium tools.

2.Rapid Tool Change & Easy Maintenance

Simple structure enables easy cleaning/maintenance (vs. hydraulic/heat-shrink holders)

ER collet replacement requires only a nut wrench (**change time <1 min**), reducing downtime.

3.Cost Efficiency

ER systems cost significantly less than hydraulic/heat-shrink alternatives; collets are low-cost.

1. Overview

The **HSK63F-ER32-70** is a high-performance **HSK-F tool holder** designed for **high-precision, high-rigidity, and high-speed machining**. It features an **HSK63F interface (hollow taper + face contact)** combined with an **ER32 collet system**, making it ideal for **CNC machining centers, 5-axis machines**, and other precision applications

2. Key Features

Repeatability ≤0.003mm**, suitable for precision milling, drilling, and tapping
