CNC Controllers

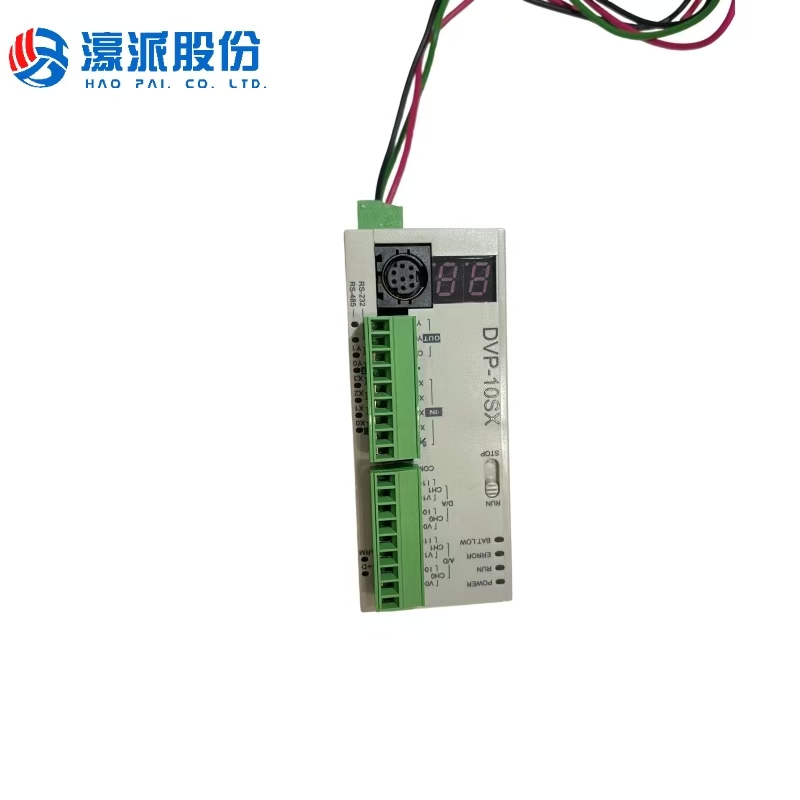

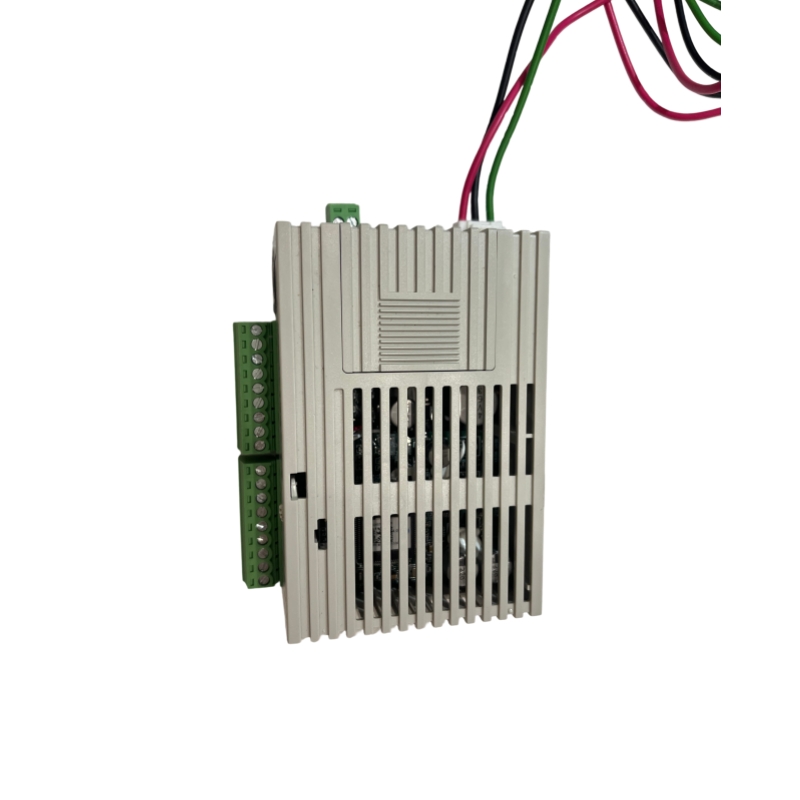

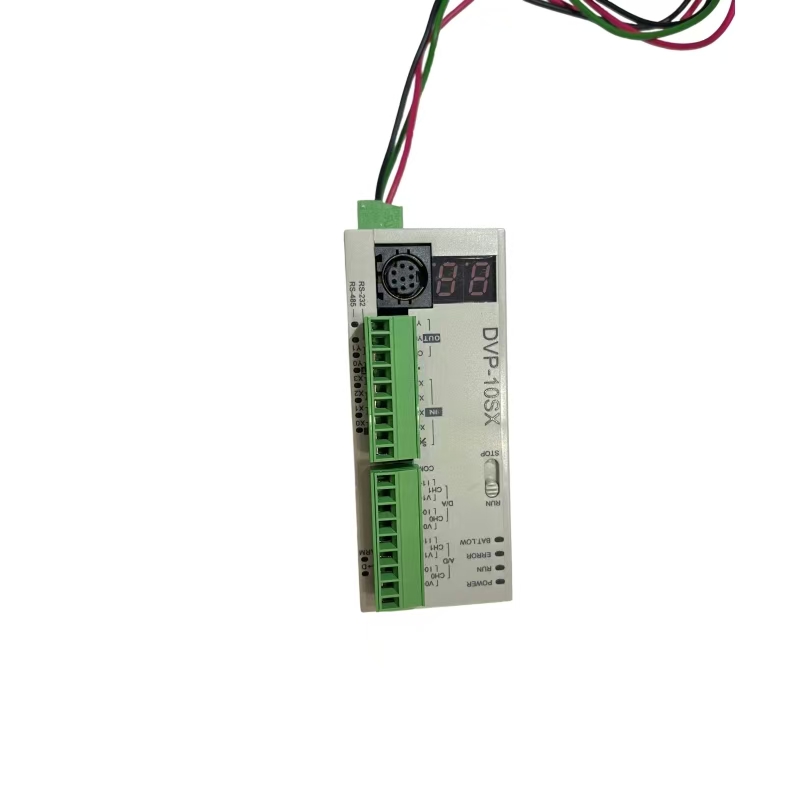

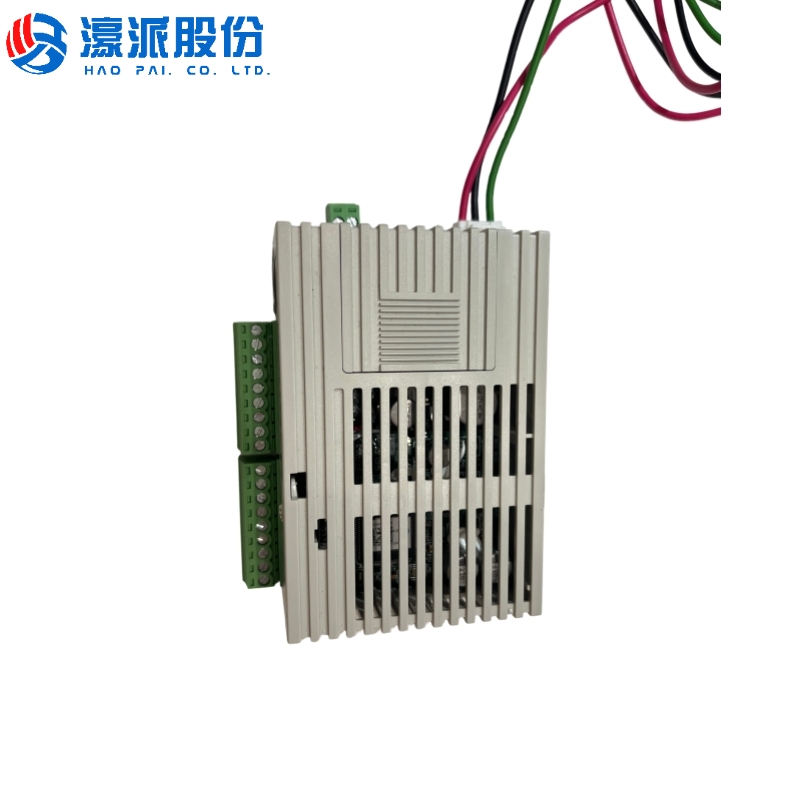

1.Compact size with a streamlined I/O count.

With only 10 built-in I/O points, the controller still delivers 4 digital inputs, 2 digital outputs, two 12-bit analog inputs and two 12-bit analog outputs—ideal for compact installations that demand closed-loop analog control in minimal space.

2.All-in-One Analog I/O

 Built-in A/D and D/A channels can be switched among 0–10 V, –10–10 V, 0–20 mA and 4–20 mA ranges—no extra analog cards required, cutting both cost and wiring.

3.High-Speed Pulse Output

The transistor (T) version provides two independent high-speed outputs: Y0 up to 50 kHz and Y1 up to 10 kHz, capable of driving stepper or servo drives for simple positioning tasks.

4.Rich Communication Ports

The front panel integrates one RS-232 and one RS-485 port, both supporting Modbus ASCII/RTU master–slave protocols, enabling easy networking with inverters, HMIs, temperature controllers, etc.

5.Flexible Expansion

Up to eight DVP-S series expansion modules (digital, analog, temperature, motion, etc.) can be attached on the right side, extending the system to a maximum of 230 I/O points for future capacity upgrades.

6.Fast Execution & Adequate Memory

Basic instruction execution time is 3.8 µs; program memory is 8 k steps, and ample data registers are available to handle medium-complexity process or motion control tasks.

7.Industrial-Grade Reliability

Power, I/O and communication circuits feature multi-stage filtering, photo-isolation and ESD protection. Operating temperature range is 0–55 °C, with vibration and noise immunity meeting CE/UL standards for harsh industrial environments.

Industrial automation control

compact automated production lines, stand-alone machine control, assembly machines, inspection equipment, packaging machinery, food processing equipment, textile machinery, and more.

Building automation.

HVAC units, lighting control, security systems, small pump stations, fan coil units, etc.

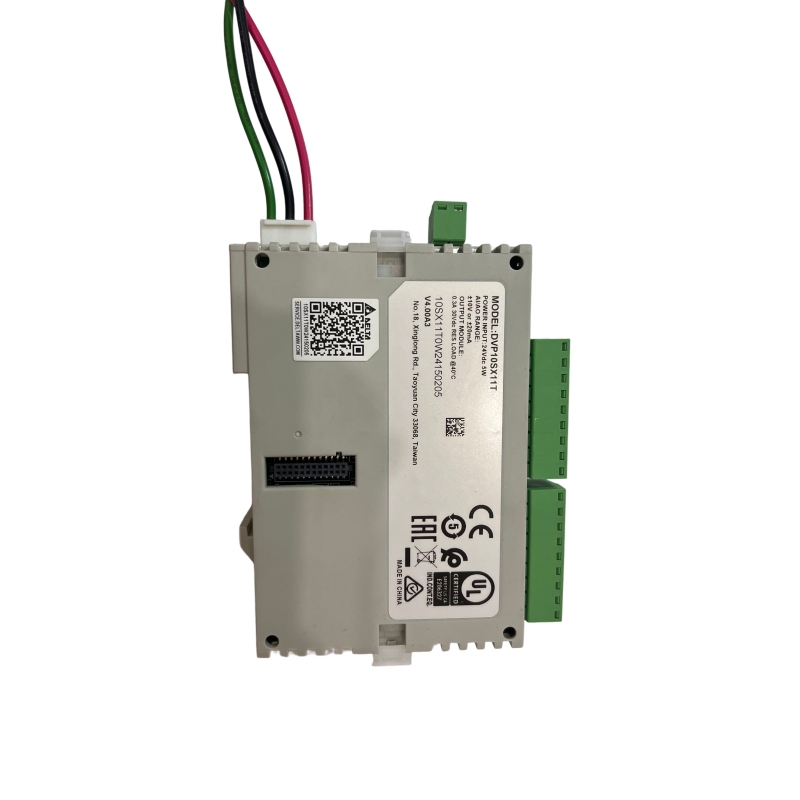

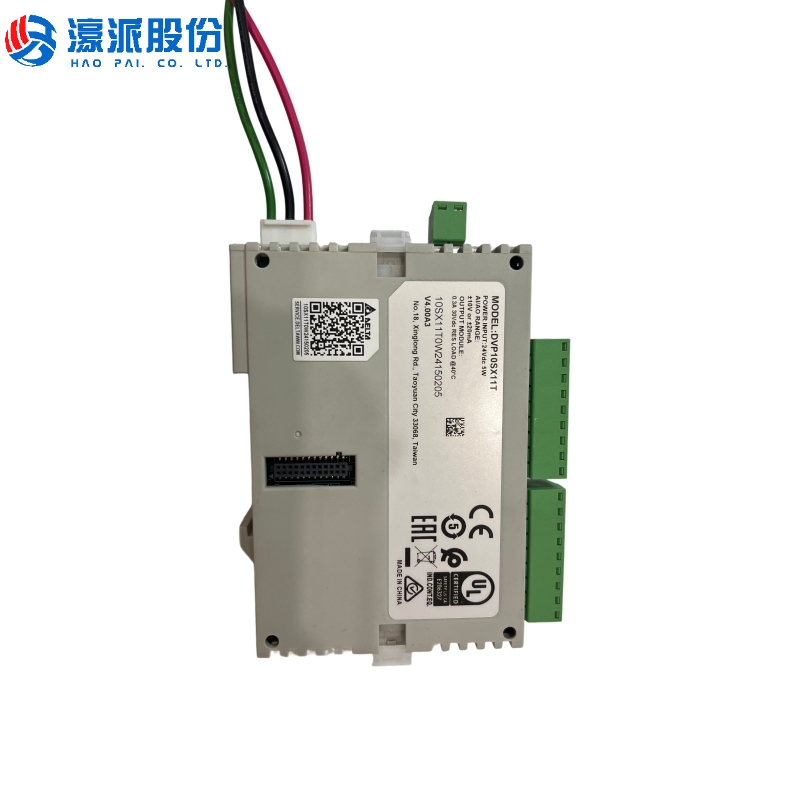

The lifespan of the battery attached to the product is about 2~4 years. (It depends on environmental factors.) Users should change the battery regularly before the BAT.LOW indicator is on. If the battery is changed when the product is disconnected, please put a new battery in the product in three minutes so that the internal data can be retained. Hardware version 2.20A1 (and below): If there is not sufficient electricity in the battery, and the product has been disconnected for more than three minutes, the program, the data in the latching devices, and the RTC time will disappear. Hardware version 3.00A2 (and above): If there is not sufficient electricity in the battery, and the product has been disconnected for more than three minutes, the program and the data in the latching devices have been moved to the flash ROM, and only the RTC time will disappear. With its compact footprint and cost-effective design, the DVP10SX11T is ideal for small- to medium-scale automation systems where space is tight, budgets are limited, and closed-loop digital-plus-analog control is required—making it the perfect choice for lightweight automation projects.
