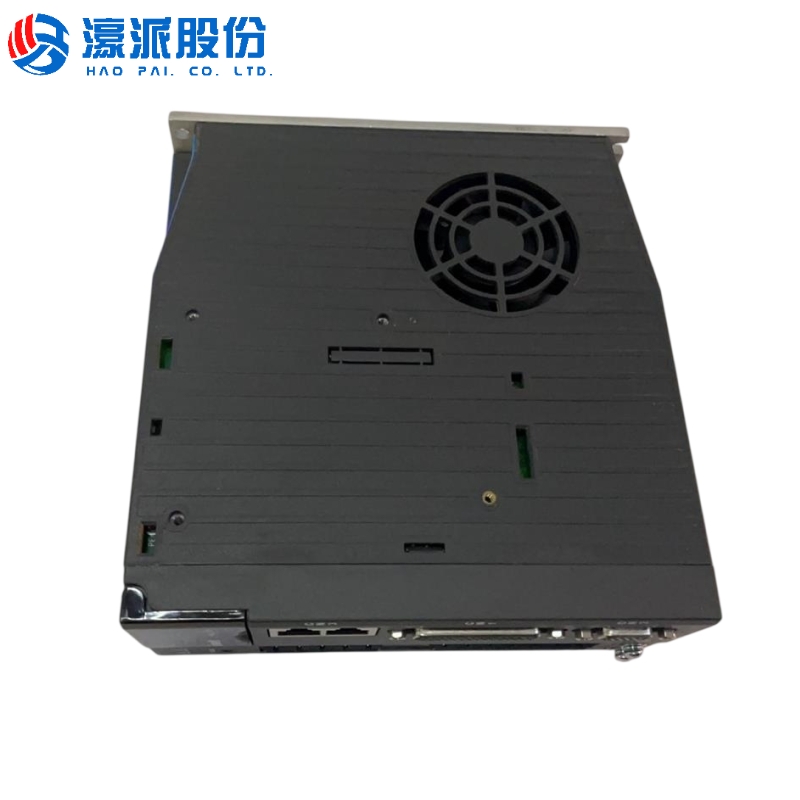

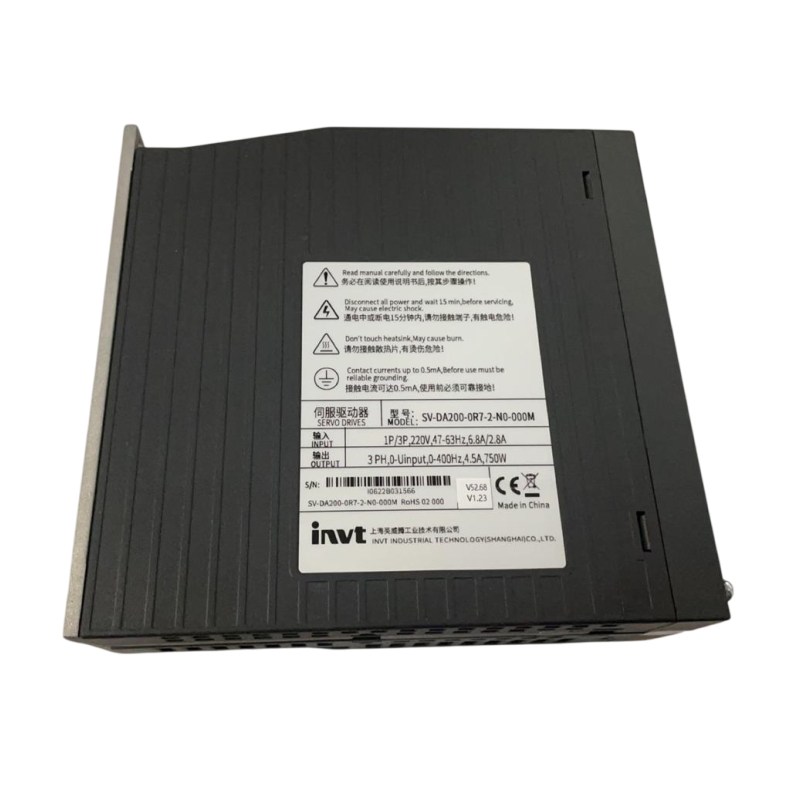

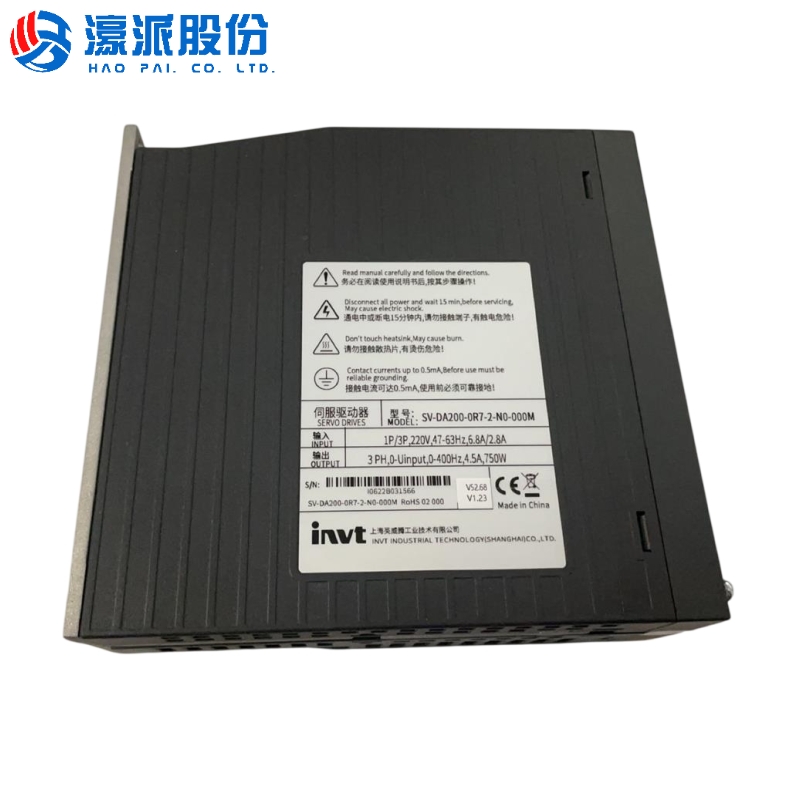

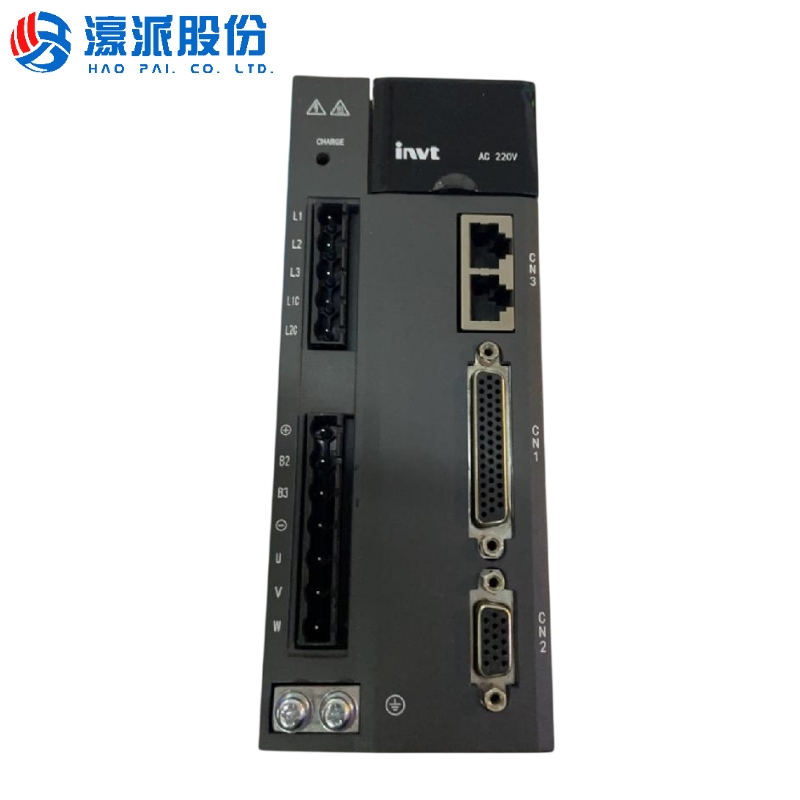

CNC Drivers

1.Ultimate Servo Performance

-Velocity-response bandwidth: 2 kHz; extremely short settling time; positioning repeatability down to ±0.01 mm.

-23-bit single-turn absolute encoder with 0.15 arc-sec resolution; zero position is retained even after power loss

2.Full Closed-Loop & Linear-Motor Support

-Optional second encoder or glass-scale for true full closed-loop control, completely eliminating mechanical backlash.

-Direct-drive, sensorless linear-motor operation: velocity-loop bandwidth >1 kHz, position settling <5 ms, travel distance for detection <2 mm; includes runaway protection

3.Rich Motion-Control Functions

-On-board 128-segment internal position table—multi-point positioning without external PLC.

-3,600-point electronic cam curve with automatic smooth interpolation between every two points; one-click product changeover

4.Intelligent Vibration Suppression & Compensation Algorithms

-4 auto/manual notch filters (50–5,000 Hz) + low-frequency damping + disturbance observer, drastically reducing noise and end-point vibration.

-Online/offline load-inertia identification + friction-torque compensation, cutting commissioning time significantly

5.High-Speed Industrial Fieldbus & User-Friendly Software

-EtherCAT standard, synchronizing up to 64 axes with 125 µs cycle time.

-PC-based ServoPlorer V4.0: real-time scope, frequency-response test, batch parameter copy, plus complete built-in manual

6. Proven in Key Industries

-Already in volume use in robotics, LED die bonders, Li-ion battery winders, glass CNC engravers and other high-end equipment, delivering >80 % throughput increase

Electronics Manufacturing.

High-speed die bonders, SMT pick-and-place machines, semiconductor sorting / test equipment.

Li-battery & PV.

Electrode winding machines, stacking machines, laser welders, tab welding machines.

Robotics & Manipulators.

SCARA, Delta, six-axis articulated robots and gantry-type manipulators.

Precision Machining.

Glass / sapphire engraving & milling machines, high-gloss finishing machines, CNC tool magazines, turret controls.

Packaging & Printing.

Multi-axis color-register printing presses, vertical / pillow packaging machines, gantry synchronous cutting lines.

Textile & Special.

purpose Equipment – Warp knitting machines, embroidery machines, high-speed coil winders, new-energy energy-storage assembly lines.

Ideal for electronics, lithium-battery, photovoltaic, packaging and precision-machining industries that demand nanometer-level repeatability and micro-second multi-axis synchronization.
