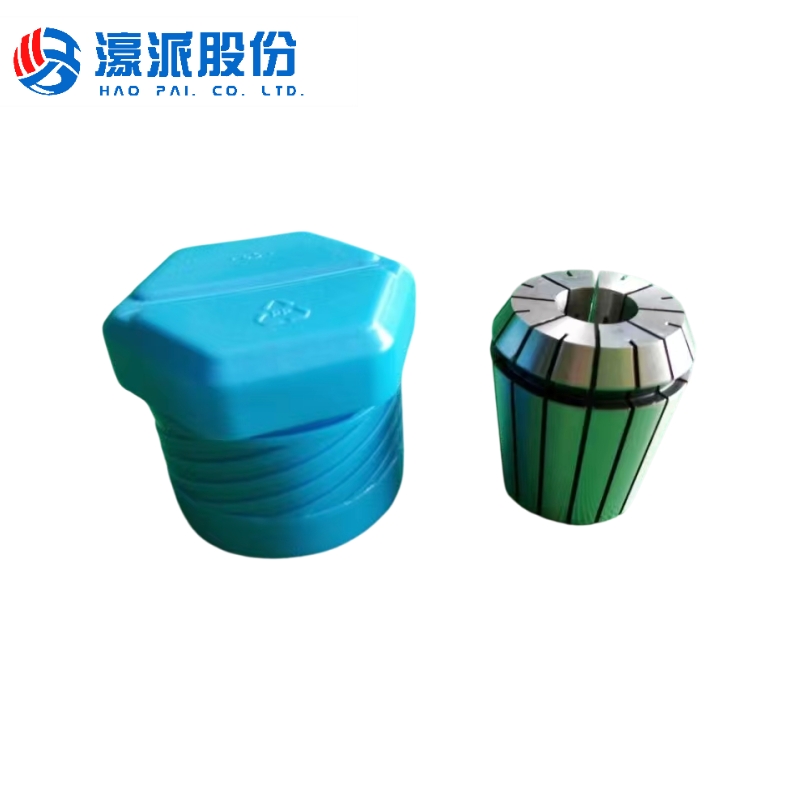

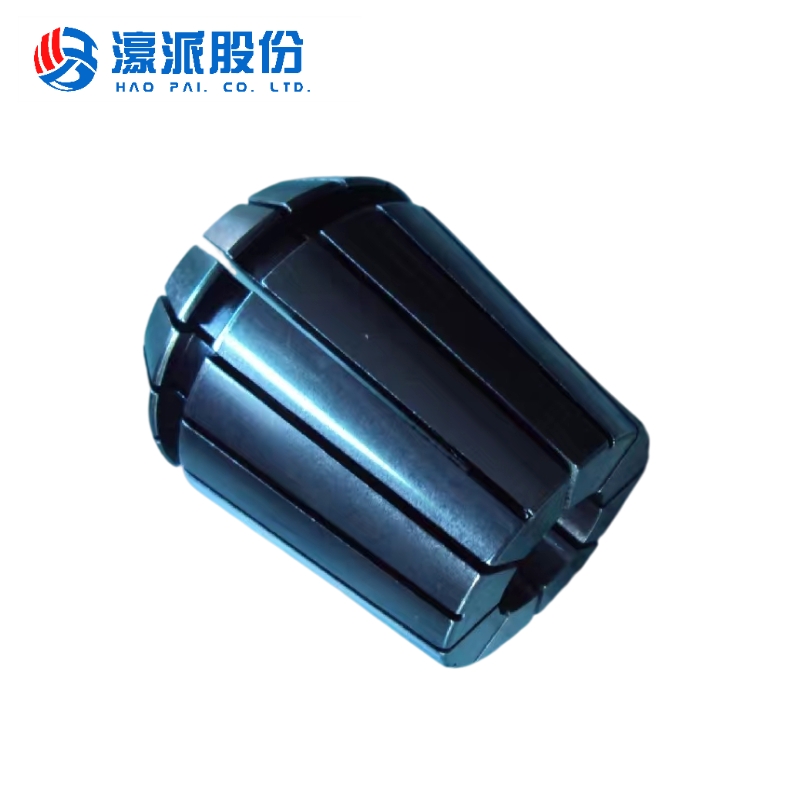

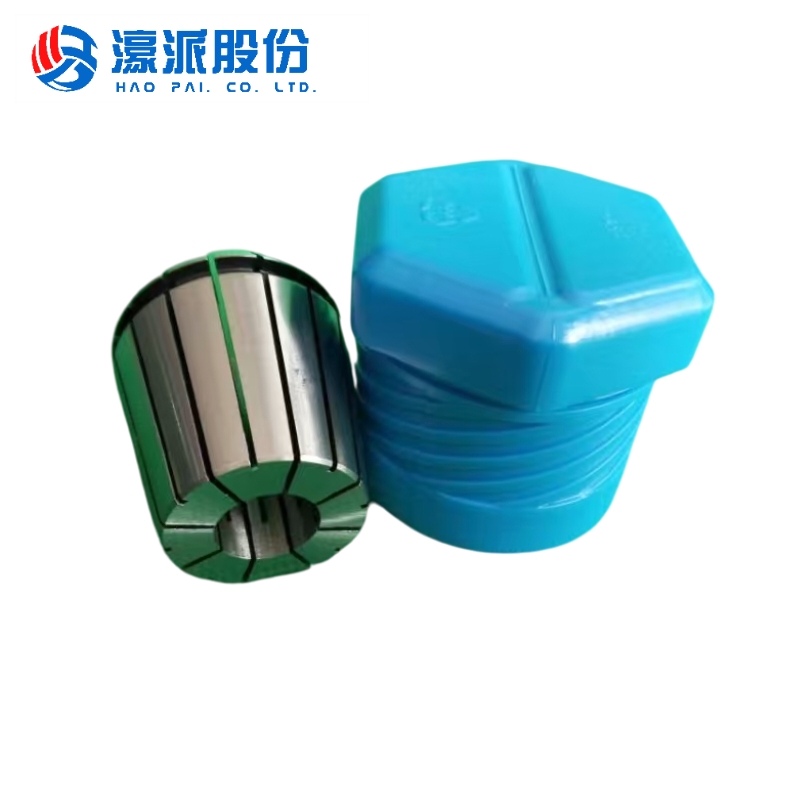

Collets And Chucks

  • Haopai
  • China
  • two to three days
  • 30 pcs month

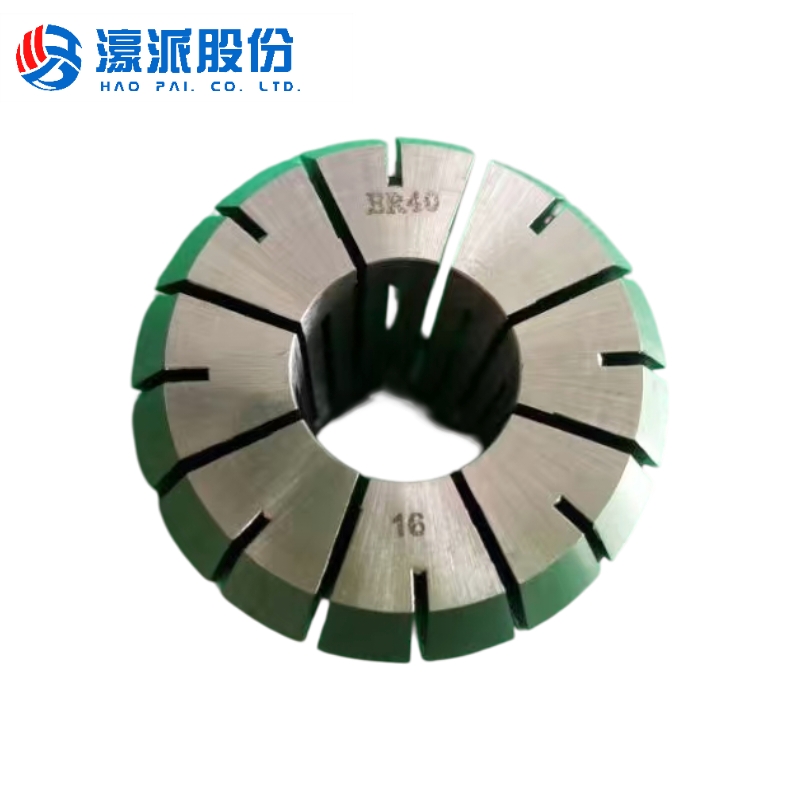

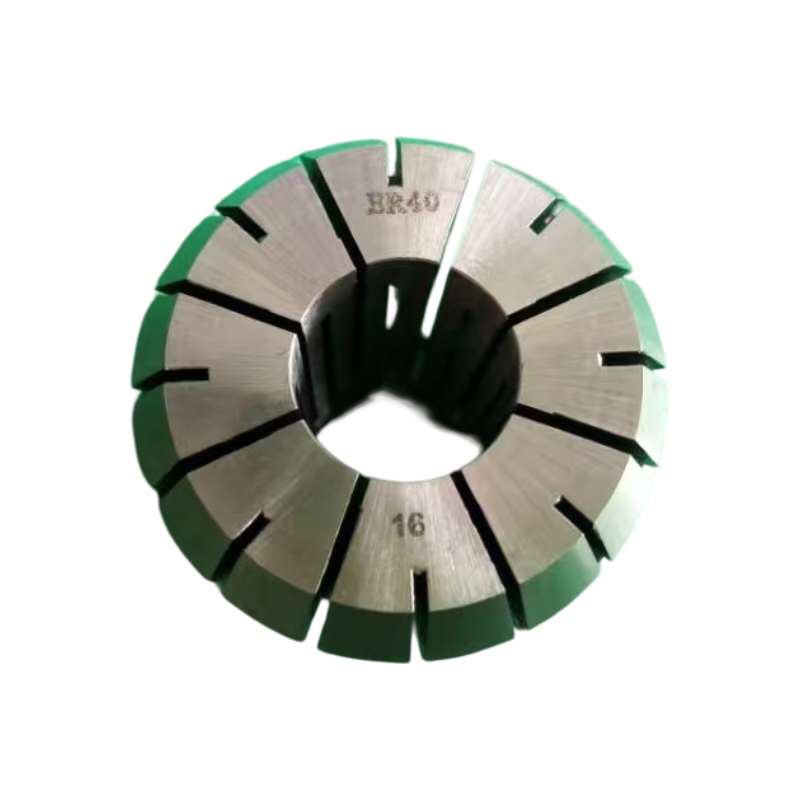

  • ER40 16mm
1.Superior Clamping Force & Durability 2.Sealed Design (Select Models) 3.High-Precision Clamping 4.Diverse Selection Options 5.Extensive Compatibility 6.Special Application Optimization

Product Advantages and Features

1.Superior Clamping Performance

SUJ2 bearing steel construction,Heat-treated to HRC46° hardness,Precision-engineered for 16mm tools


2.Enhanced Durability

Anti-fatigue spring design,Polished inner surface reduces wear,Extended service life


3.Ultra-High Precision Clamping

Optional A or AA precision grades,Runout accuracy ≤0.005mm for AA grade,Excellent concentricity for fine finishing


4.Professional Application Optimization

Dynamic balanced for high RPM,Heavy-duty cutting capable,Through-coolant capability。


5.Advanced Sealing Technology

Leak-proof construction,High-pressure coolant seal,Ideal for deep-hole machining

Collets and chucks

Product Technical Parameters


Specifications

Model Number

ER40-16mm

Clamping Diamete

16mm (Standard clamping range 3-26mm)


Applicable Standard

DIN 6499/ISO 15488


Overall Length

Approx. 65mm


Thread Specification

M45×1.5


Maximum Opening Diamete

Approx. 26mm


Precision Parameters

Axial Runout

≤0.008mm

Radial Runout

≤0.005mm (AA Grade)


Accuracy Grade

 AA Grade(≤0.005mm)/A Grade(≤0.01mm)/Standard Grade(≤0.02mm)


Maximum Rotation Speed

 25,000 RPM (After dynamic balancing)


Applicable Torque

120-150N·m


 Maximum Clamping Force

Approx. 3,500N


Coolant Pressure

≤10MPa (Sealed Type)



Product Application Scope

Our collet is specifically designed for high-precision vertical drilling operations, seamlessly integrating with core woodworking equipment such as hexagonal drills, cutting machines, and PTP machining centers. It comprehensively meets the drilling requirements across various applications including panel furniture, custom cabinetry, and solid wood processing, enabling you to achieve efficient, precise, and flexible production.


ER Collet
Spring Collet

Product Description


Main MaterialSUJ2 High-Carbon Chromium Bearing Stee
Surface TreatmentPrecision Grinding and Polishing
Heat Treatment HardnessHRC46-48°
Inner Wall RoughnessRa0.2μm
 Operating Temperature-20℃ to +120℃
Corrosion ResistanceNickel/Chrome Plating Optional
