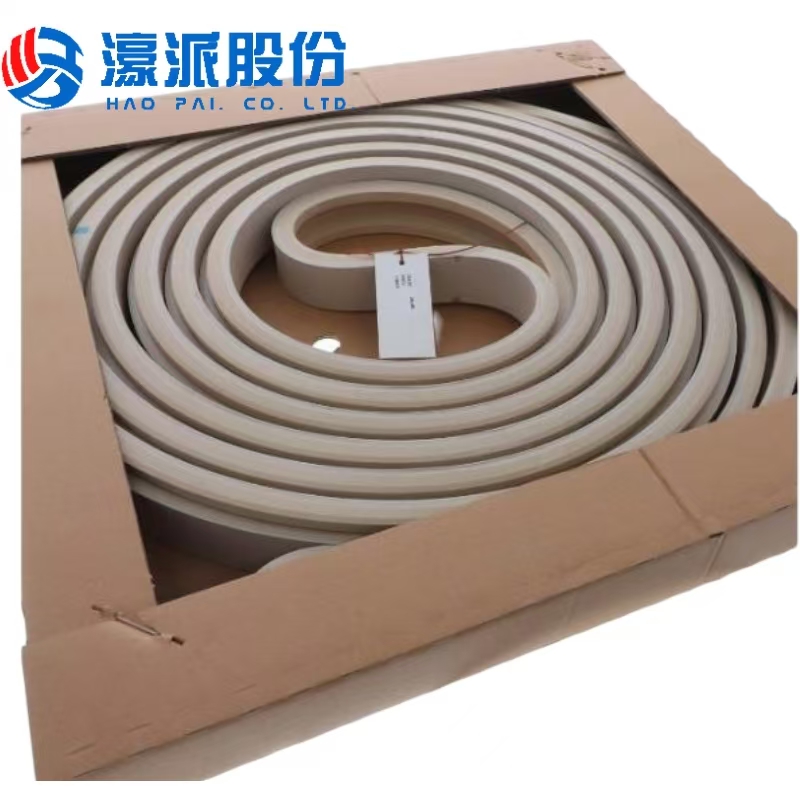

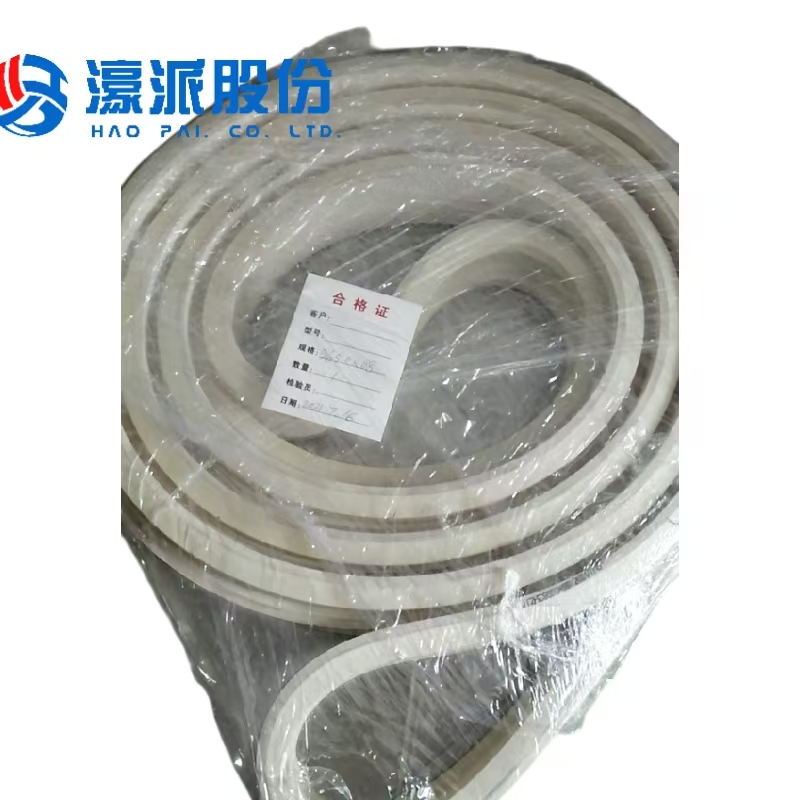

Edgebander Feed Belts

1. Efficient and stable conveying

Some of the feeding belts are made of PTFE material, which has low friction coefficient, allowing materials to move quickly and smoothly on the conveyor belt, improving the efficiency of the edge banding machine and reducing energy consumption. At the same time, also has high temperature resistance, which can work stably in a continuous high temperature environment of 260℃, and will not deform or age due to high temperature, reducing the downtime. In addition, the motor speed and position can be adjusted in real time through the servo system, ensuring that the feeding belt conveys without deviation and can adapt to of different widths, improving production efficiency.

2. Protect the surface of the board

The feeding belt is soft or has special surface treatment, such as the feeding belt with-type pressure, the internal spring elasticity of the pressure beam is small, which can better protect the board, avoid scratching the surface of the board during transportation, and affect the banding effect and the beauty of the board.

3. Precise positioning of the board

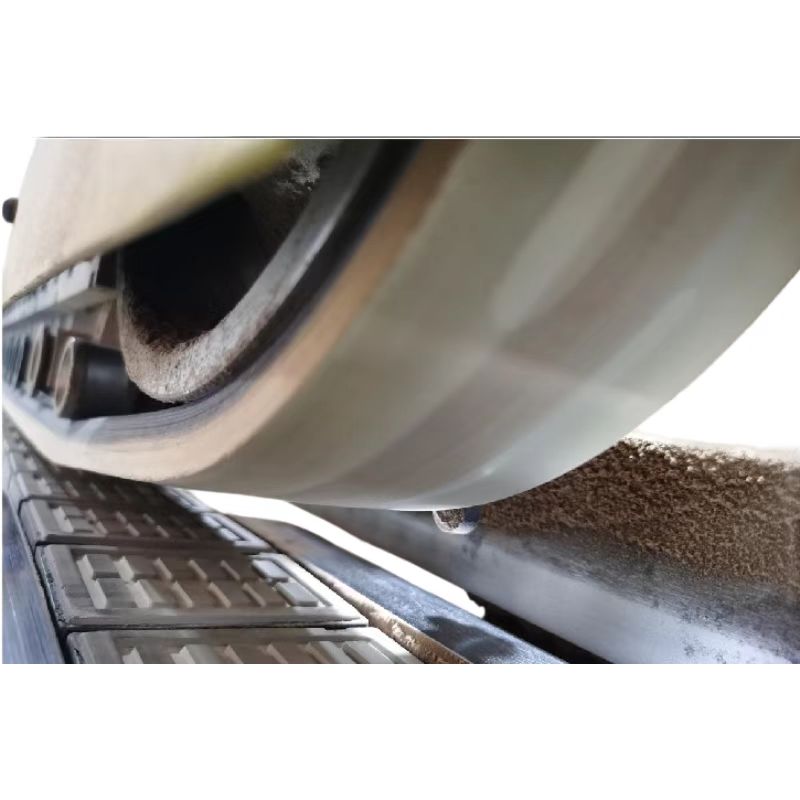

Some of the feeding belts adopt infrared positioning diagonal measurement technology, which is stable does not deviate during transportation. In combination with the track-type pressure structure, the high-strength chain and the wear-resistant track work together to provide stable support for the. The surface of the track has good anti-skid performance, which can ensure that the board is in the precise position in the process of gluing, edge banding, trimming, avoiding problems such as the edge band strip is not closely attached or the glue line deviates.

4. High degree of automation

The feeding belt of the banding machine can achieve automated operation, and the board can be automatically transported from the feeding end to the discharging end as long as it is placed at the feeding end, and excessive manual intervention is required in the entire edge banding process, reducing labor costs. And, by scanning the code, it can automatically recognize the current processing requirements, and achieve switching of different colors, thicknesses, or materials of the edge banding tape, to meet the flexible needs of "multiple colors, small batch" of custom home furniture.

5. Good chemical stability

 Some of the feeding belts, such as those made of PTFE, can resist the erosion of adhesives, solvents, and other chemical substances do not undergo chemical reactions, and ensure service life and performance stability.

6. Strong size adaptability

According to the structure of different models of edge banding machines, variety of sizes of feeding belts can be customized to ensure perfect installation with the edge banding machine, and there will be no deviation, slipping and other phenomena during operation, to provide hardware foundation for high-quality edge banding.

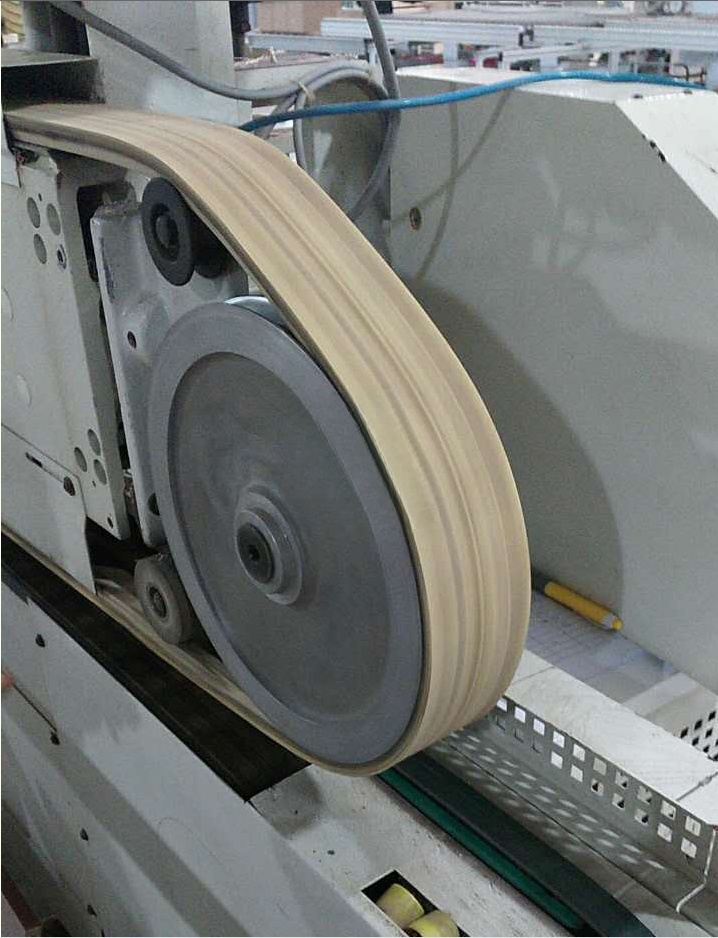

The feeding belt (or conveyor belt) is a crucial component in the edge banding machine system, primarily used for the automated transfer of, covering the following application areas:

‌1. Full-house custom furniture manufacturing‌

Suitable for edge banding processing of cabinet boards, wardrobe boards, door panels etc., the wear-resistant and skid-proof conveyor belt ensures efficient transfer, supporting infrared positioning technology to ensure stable transportation‌

‌2. Board furniture production‌

In combination with linear or curve edge banding machines, it completes the cyclic transfer of plates from the raw material area to the edge banding position, enhancing the efficiency of batch production‌

‌3. Processing of irregular plates‌

The feeding belt of some high-end models (such as multi-functional CNC processing centers) can meet edge banding needs of curved plates, achieving precise transfer‌

‌4. Woodworking decoration and window and door production‌

The flexible design of the feeding belt of the edge banding machine is suitable for on-site construction or small workshops, handling different materials of edge bands (such as PVC, ABS, etc.)‌

5‌ Industrial automation scenarios‌

The conveyor belt of the fully automatic edge banding machine integrates functions such as glue coating and pressing, requiring a stable air pressure system (6 standard air) and temperature control (180℃±20℃) to ensure continuous operation‌

In addition, the performance of the feeding belt directly affects the quality of banding, and it needs to be regularly maintained to avoid deviation or wear, while adjusting the pressure wheel spacing and glue amount according to the size of the plates

‌1. Efficient transmission‌

The combination structure of double-row chains and wear-resistant track plates is adopted, a conveying speed of ‌18–26 meters/minute‌, meeting the needs of continuous operation of large-scale production lines‌.

Infrared positioning technology that the plate does not deviate during transmission, with diagonal measurement accuracy of ±0.1mm, ensuring the effect of edge alignment‌.

‌2. Pressure adaptability

The clamping beam is equipped with rubber pressure rollers or corrugated tracks, which can adapt to ‌12–60mm thick‌ plates through electricmanual adjustment, avoiding pressure damage and deformation‌
