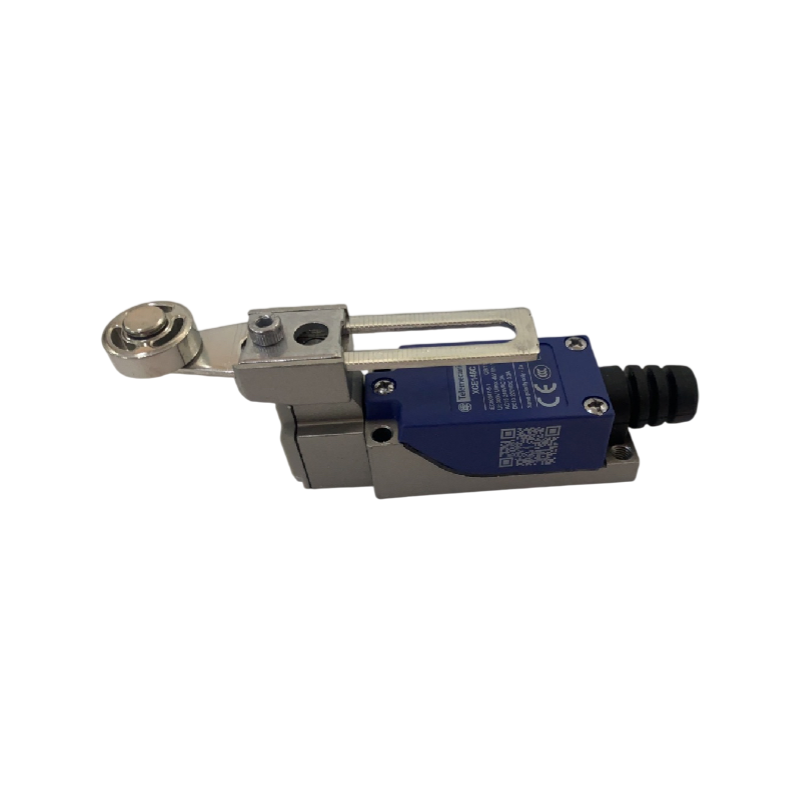

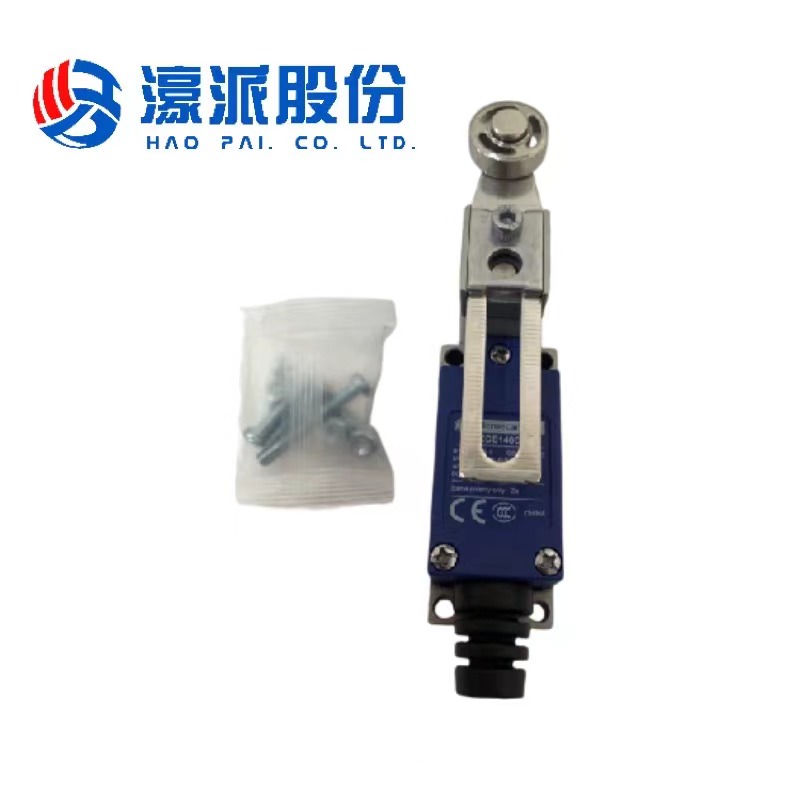

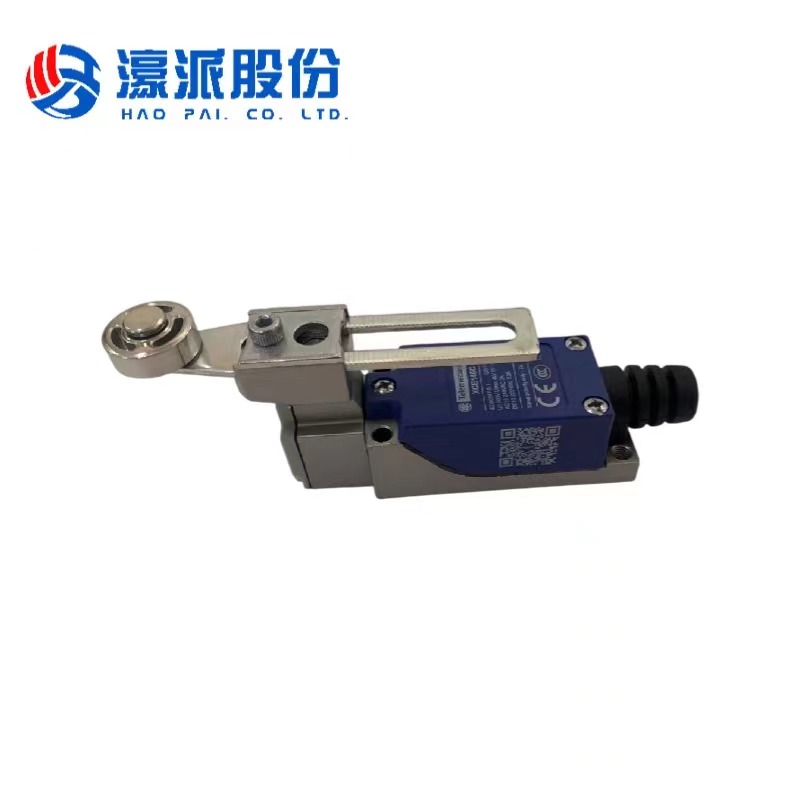

Edgebander Machine Switches-Travel Switch

• Long - life: The internal mechanical structure is optimized, with a mechanical life of up to 15 million times and an electrical life of up to 1 million times (AC - 15, 1.5A 240V), which can reduce the replacement frequency and maintenance cost.

• High - precision detection: It adopts high - precision sensors, which can real - time detect the travel state and ensure the control accuracy, and can precisely control the mechanical movement position.

• Good protection performance: The protection level is IP65, which can effectively prevent dust and water, and can work stably in harsh environments.

• Strong anti - interference ability: It has excellent anti - interference performance, and can maintain stable performance even in an environment with serious electromagnetic interference.

• Convenient installation: The structure design is compact, and it supports a variety of installation methods. It is equipped with screw - clamp terminals, and the wiring is firm and not easy to loosen. The installation is convenient and quick, saving manpower and material resources.

• Excellent material: The head component is made of optimized metal material, with excellent rust - proof ability. It has passed the 300 - hour salt - spray test and can adapt to a variety of working environments.

• Rapid response: It adopts an advanced roller swing - arm design, with high operation sensitivity and a response time as short as 0.05 seconds, which can quickly respond to mechanical movements.

1. Motion Limit Control of Woodworking Machines：In woodworking planers, milling machines and other equipment, it is installed at the end of the movement track of cutters or workbenches. When the components run to the set stroke boundary, XCE146C is triggered to cut off the power circuit, preventing the workbench or cutters from overtravel collision and avoiding equipment damage and processing errors.

2. Wood Panel Positioning and Feeding Control：It is adapted to the panel conveying mechanism of woodworking panel saws and edge banding machines. XCE146C detects the conveying position of wood panels. When the panels reach the designated processing station, it triggers a switch signal to control the conveying mechanism to pause or switch the operating state, ensuring the accurate processing position of the panels.

3. Safety Protection Linkage Control：It is used in the safety door and protective cover linkage system of woodworking machinery. When the operator opens the safety door, XCE146C is triggered synchronously to cut off the equipment power source immediately, preventing safety accidents caused by the continuous operation of cutters; after closing the safety door, the switch resets and the equipment can be restarted.

4. Tool Replacement and Maintenance Positioning：In CNC woodworking machining centers, XCE146C serves as a positioning switch for the tool change mechanism, assisting the accurate docking of the tool magazine and the spindle. It ensures that the mechanism stops stably when it runs to the preset maintenance or replacement position during the tool change process, improving tool change efficiency and safety.

5. Waste Conveying Mechanism Control：Matched with the waste collection conveyor belt of woodworking machinery, XCE146C is installed at the waste bin or the turning point of the conveyor belt. When the waste accumulates to the position that triggers the switch, it sends a signal to control the conveyor belt to accelerate or start the cleaning device, avoiding waste blockage affecting the normal operation of the equipment.

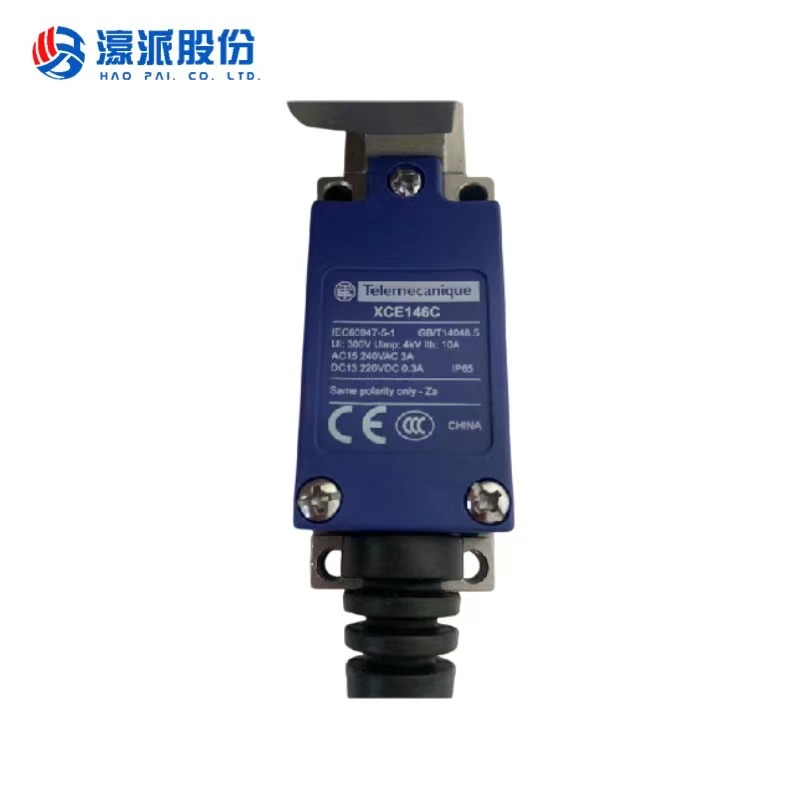

Schneider Travel Switch XCE146C is a high-precision control component specially designed for the complex working conditions of woodworking machinery. With excellent protection performance and stable mechanical and electrical life, it is compatible with various equipment such as woodworking planers, panel saws, edge banding machines, and CNC machining centers. Its IP65 protection class can effectively resist wood chips, dust, and a small amount of cooling fluid during woodworking processing. The metal head with 300-hour salt spray resistance and the UL94 V-0 flame-retardant housing can adapt to the humid and dusty harsh environment of the workshop; the 15 million mechanical life and 1 million electrical life can meet the high-frequency start-stop and positioning needs of woodworking machinery, reducing equipment maintenance frequency. In terms of functions, the switch supports core scenarios such as motion limit, wood panel positioning, and safety linkage. The fast response of 0.05 seconds and precise triggering performance can ensure the dimensional accuracy of wood processing. At the same time, through the safety door linkage control, it provides reliable safety protection for operators, making it a key component to improve the automation level and operation safety of woodworking machinery.
