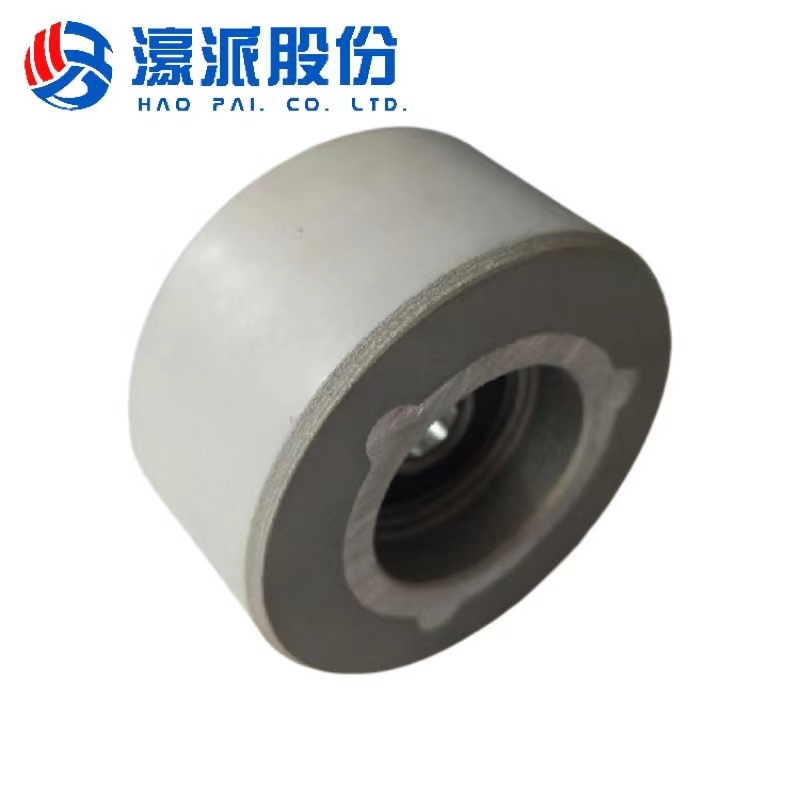

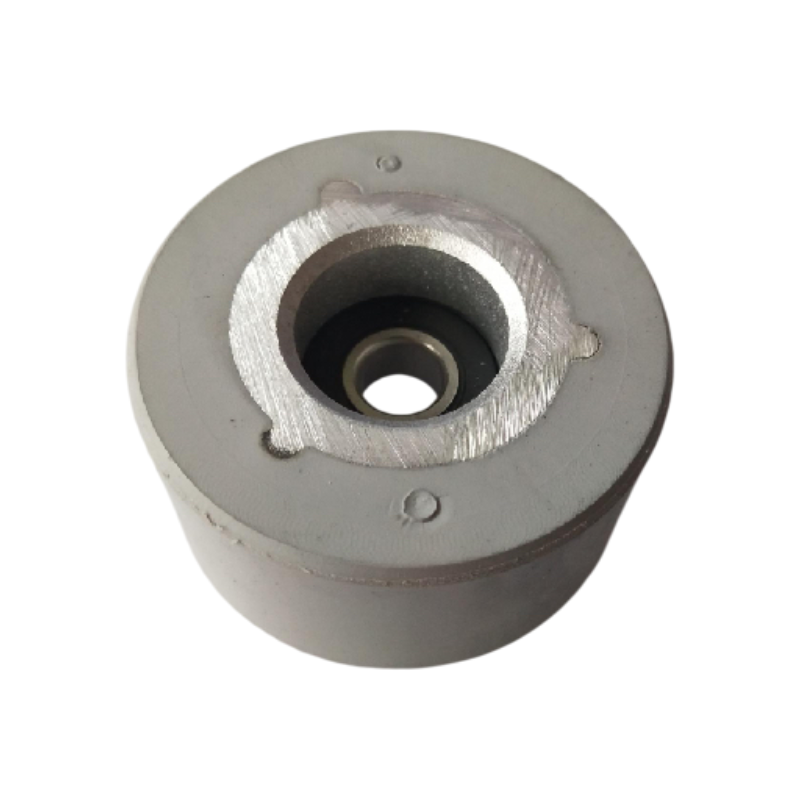

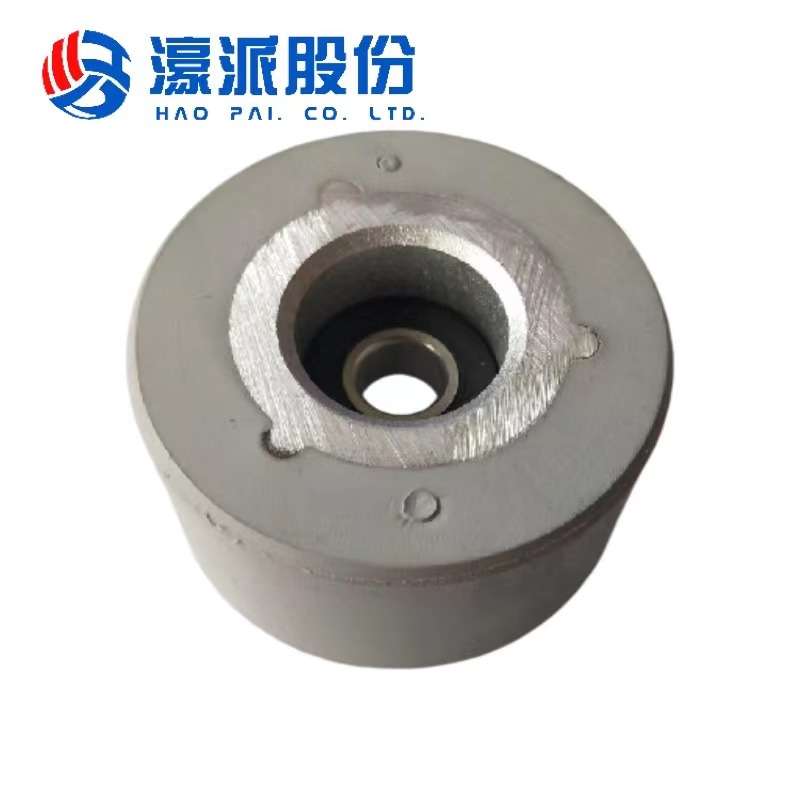

Edgebander Rollers-Brand Pressure Wheel for Beam Pressing

1. Temperature and Corrosion Resistance, Adapting to Complex Working Conditions：The material has certain temperature resistance and slight corrosion resistance, which can adapt to common temperature fluctuations in the workshop (such as environmental temperature changes caused by mechanical operation heat dissipation) and slight oil pollution environment. It avoids material aging or performance degradation caused by environmental factors and ensures the stability of the pressure wheel in long-term use.

2. Precise Specification Adaptation, Strong Installation Compatibility：The pressure wheel size strictly follows the "48825H" standard (outer diameter 48mm, thickness 8mm, inner hole/height 25H), which perfectly matches the assembly size of Nanxing beam pressing equipment.

   It can be directly installed without additional adjustment, significantly reducing the adaptation cost and time cost during equipment maintenance.

3. High Wear-Resistant Material, Long Service Life：It can effectively resist continuous extrusion and rolling friction during beam pressing operations, avoid frequent  replacement caused by wear, extend the service life of a single pressure wheel, and reduce the overall operation and maintenance cost of the equipment.

    Made of high-strength wear-resistant metal (such as bearing steel or alloy material), the surface is precision-polished and hardened.

4. Stable Pressure-Bearing Performance, Ensuring Operation Precision：The structural design is optimized for the pressure requirements of beam pressing equipment. The size combination of 48mm outer diameter and 8mm thickness can evenly distribute the longitudinal pressure applied by the beam, avoiding deformation or deviation caused by excessive local stress. It ensures that the beam always maintains stable precision during pressing operations (such as plate processing, component fixing), and reduces product processing errors.

5. Low-Friction Operation, Reducing Equipment Noise：The fit clearance between the pressure wheel inner hole (25H) and the shaft sleeve is precisely controlled, combined with a smooth rolling contact surface, which can reduce friction resistance during operation. It not only reduces equipment operation noise (especially suitable for workshop environmental noise control needs) but also reduces energy loss caused by friction, improving the operation efficiency of the beam pressing equipment.

1. Small and Medium-Sized Plate Processing Scenarios：Suitable for pressing and edge banding auxiliary operations of small and medium-sized plates (such as MDF, solid wood composite boards, and thin metal plates). The size combination of 48mm outer diameter and 8mm thickness can form uniform pressure on the plate surface. Combined with the stable bushing fit of the 25H inner hole, it can meet the requirements of "low pressure loss and high bonding precision" in processes such as plate splicing and film coating, especially suitable for plate processing lines with a width ≤ 1.2m.

2. Lightweight Component Press-Fitting Scenarios：In the press-fitting and fixing operations of hardware components (such as small metal brackets and plastic connectors), the pressure wheel can apply uniform pressure through stable rolling to avoid scratches on the component surface. The maximum bearing pressure of 500N (static working conditions) and the recommended speed of ≤150r/min are suitable for the low-load press-fitting needs of lightweight components, commonly used in production lines such as furniture hardware assembly and electronic equipment shell assembly.

3. Low-Noise and Low-Wear Operating Environments：Due to the surface technology of precision polishing + hardening treatment and wear-resistant metal material, the pressure wheel can adapt to workshop scenarios that require noise control (such as furniture production workshops, electronic clean workshops) and long component service life (monthly operating hours ≤ 300h), reducing the impact of frequent component replacement on production progress. At the same time, the temperature resistance range (-10℃~80℃) can cope with temperature fluctuations in most indoor industrial environments.

4. Maintenance Replacement and Equipment Transformation Scenarios：In addition to being supporting parts for original equipment, it can also be used as a maintenance replacement part for the same type of beam pressing equipment (non-Nanxing brand but with 25mm shaft diameter and similar pressure parameters), or for performance upgrading and transformation of old beam pressing equipment. Through the standardized specification of "48825H", the pressing precision and operation stability of the equipment are improved, and the transformation and adaptation cost is reduced.

The Beam Pressing Wheel is a precision mechanical accessory specially designed for beam pressing operations, with core advantages in "specification standardization" and "performance adaptability". In terms of structure, the 48mm outer diameter can achieve uniform pressure coverage on small and medium-sized workpieces, the 8mm thickness balances structural rigidity with lightweight requirements, and the 25H inner hole adopts hole-basis tolerance, which can accurately match beam pressing equipment with a 25mm shaft diameter. It is especially perfectly compatible with Nanxing brand beam pressing equipment (such as plate laminating machines and component pressing machines), and can directly replace original old parts without additional size adjustment.
