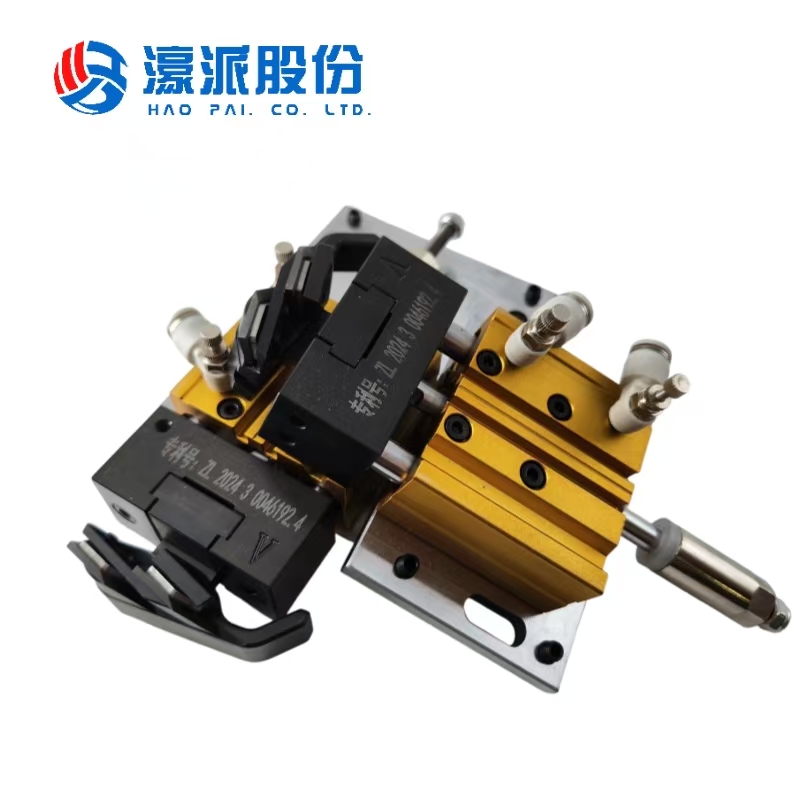

End Trimming Units

1.Double edge trimming system

The use of pneumatic double scraping device can be switched to adapt to different plates with one button, improving versatility and efficiency.

2.Automatic tracking optimization

Combined with the prototype wheel and high frequency motor, the device can track the movement of the plate in real time to ensure that the edge is smooth without the problem of jumping blade, and eliminate the wave trace after trimming.

3.Efficient removal of excess material

By touching the edges and corners of the plate, the scraper can directly scrape off the edge band or glue line that is higher than the plate, which can significantly save labor and time cost.

4.Adjustable structure design

The device consists of upper and lower edge scraping units, each equipped with vertical wheels and front and rear adjustment mechanism, which is convenient to precisely control the distance between the scraper and the plate surface, so as to customize the edge curvature and arc size.

5.Improve the quality of sealing

The final effect makes the upper and lower edges of the beveled or straight edge sealing more rounded and beautiful, reduces the glue line and burrs, and enhances the overall durability of the plate

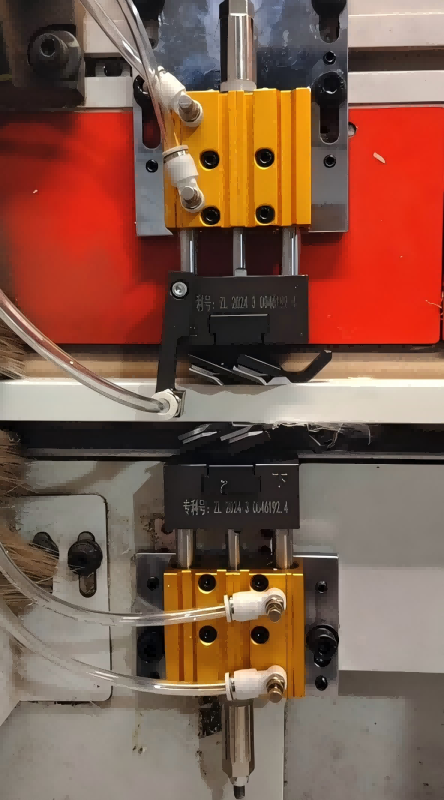

The application of trimming device on the edge sealing machine

Its core function is to improve the quality and beauty of the edge sealing by eliminating the trimming marks of the plate and optimizing the edge form.

Adapted process scenarios

Edge sealing of panel furniture, straight edge trimming of panel parts.

The pneumatic edge trimming device enhances edge sealing quality and efficiency through automation, high precision, and versatile adaptability. By precisely controlling the blade's contact force via pneumatic pressure, it prevents surface scratches or edge tape damage. It effectively removes water ripples, burrs, and residual adhesive lines caused by non-linear movements during rough/polishing processes. When combined with polishing procedures, it achieves a "seamless" visual effect.
