• Hot Melt Coating Machine HP-PUR55-S PUR Hot Melt Adhesive Machine
  • Hot Melt Coating Machine HP-PUR55-S PUR Hot Melt Adhesive Machine
  • video

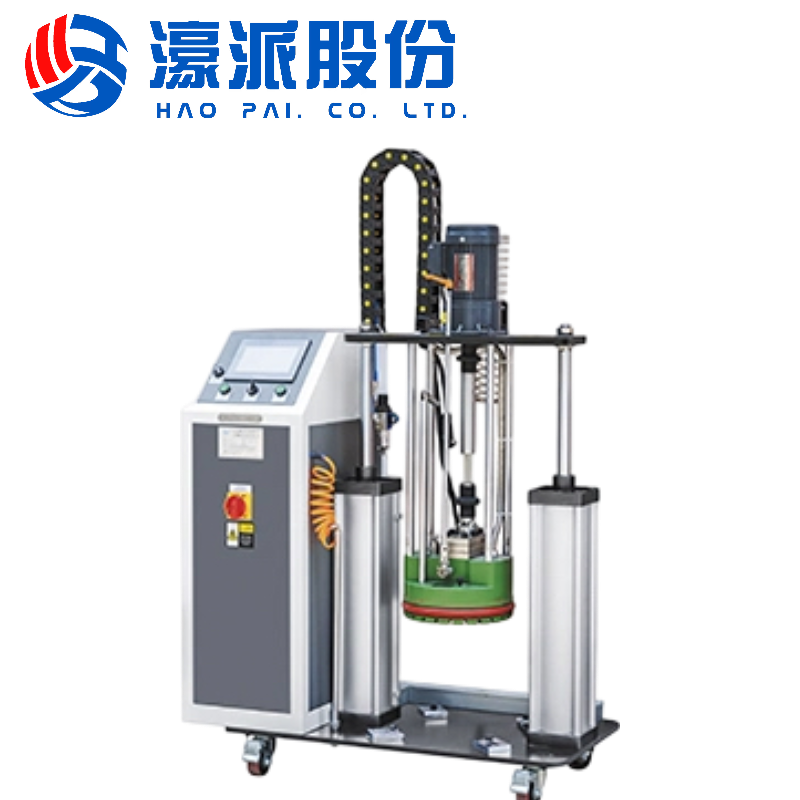

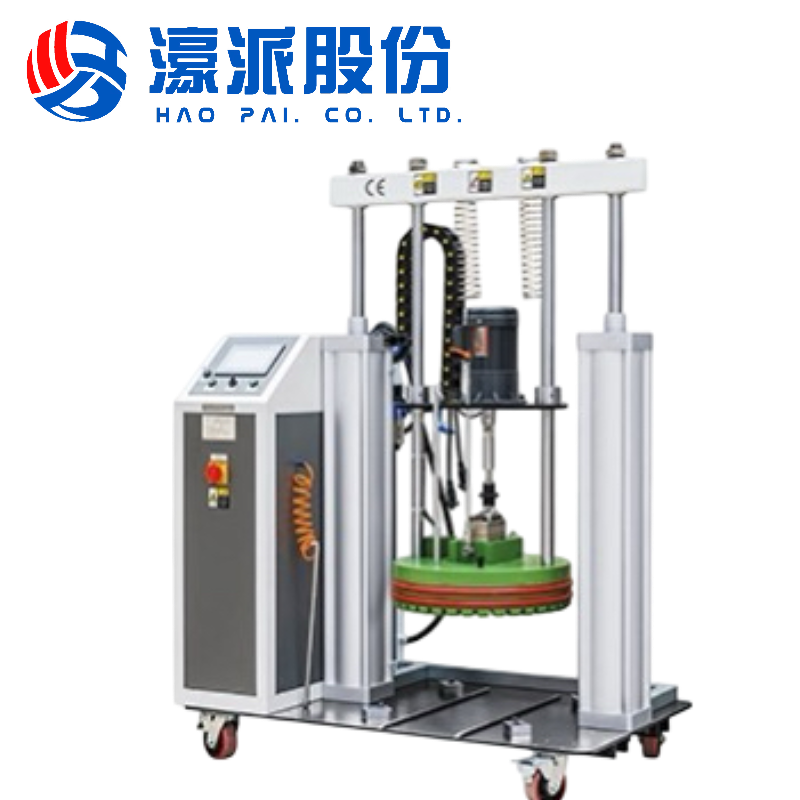

Hot Melt Coating Machine HP-PUR55-S PUR Hot Melt Adhesive Machine

  • Haopai
  • Guangdong, China
  • 5-10days
PUR adhesive (moisture curing reactive hot melt adhesive) forms irreversible chemical bonds after curing, with bonding strength far exceeding that of ordinary EVA adhesive. It is resistant to high and low temperatures (usually -40 ℃~120 ℃), water and aging, and is not easy to peel off after long-term use

Product Advantages and Features

1.Sensitive to environmental humidity:

Curing depends on moisture in the air. If the environmental humidity is too low (<30% RH), it will cause slow curing and a decrease in adhesive strength; Excessive humidity (>70% RH) may accelerate curing and increase the risk of adhesive blockage, and should be used in conjunction with humidity control equipment.


2.The maintenance cost of the equipment is relatively high:

PUR glue is difficult to clean after curing, requiring regular replacement of seals and cleaning of pipelines, and the cost of specialized accessories (such as anti sticking nozzles and heating hoses) is higher than that of ordinary EVA glue machines.


3.The initial investment is slightly higher:

 compared to traditional EVA hot melt glue machines, PUR glue machines have more complex heating systems, temperature control accuracy, and anti curing designs, and equipment procurement costs are usually 30% to 50% higher.



Product Technical Parameters


System

Speed control AC motor gear pump

Barrel diameter

¢280mm

Maximum glue supply amount

18kg/H

Output pipe

1 line (or 2 lines)

Maximum working pressure

8.5Mpa

Operating temperature scope

40-200ºC

Environment temperature scope I

0-50ºC

Temperature control precision

±1ºC

Temperature sensor

Pt100

Power supply

220V

Maximum system power

7.5KW

Air pressure applied

0.5~0.8Mpa

Weight

180kg

Connection signal

2input,2output

Installation size

1000mm×500mm×1500mm

Level of prevention

IP54
