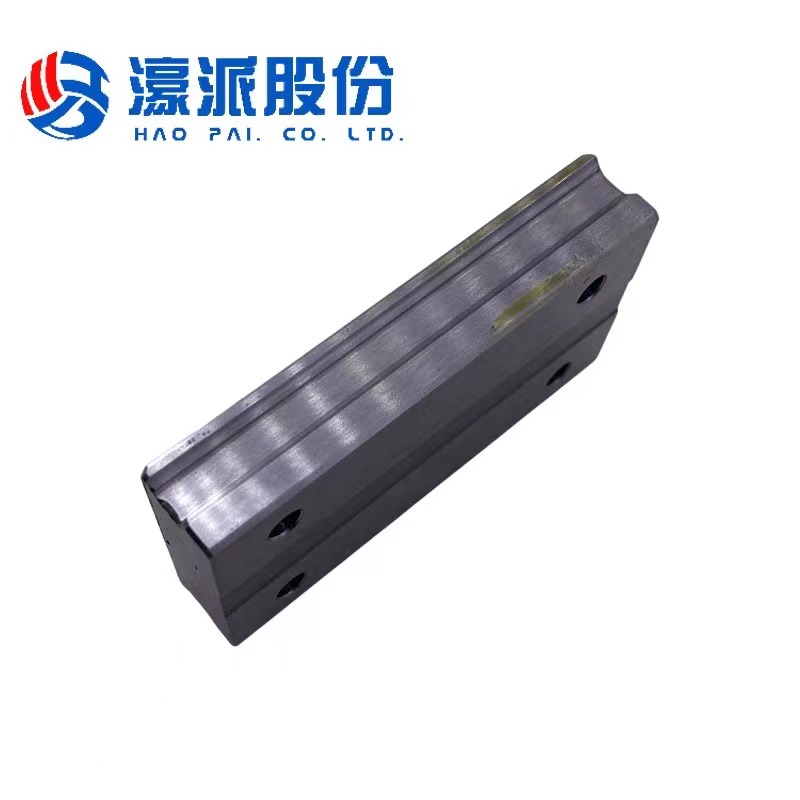

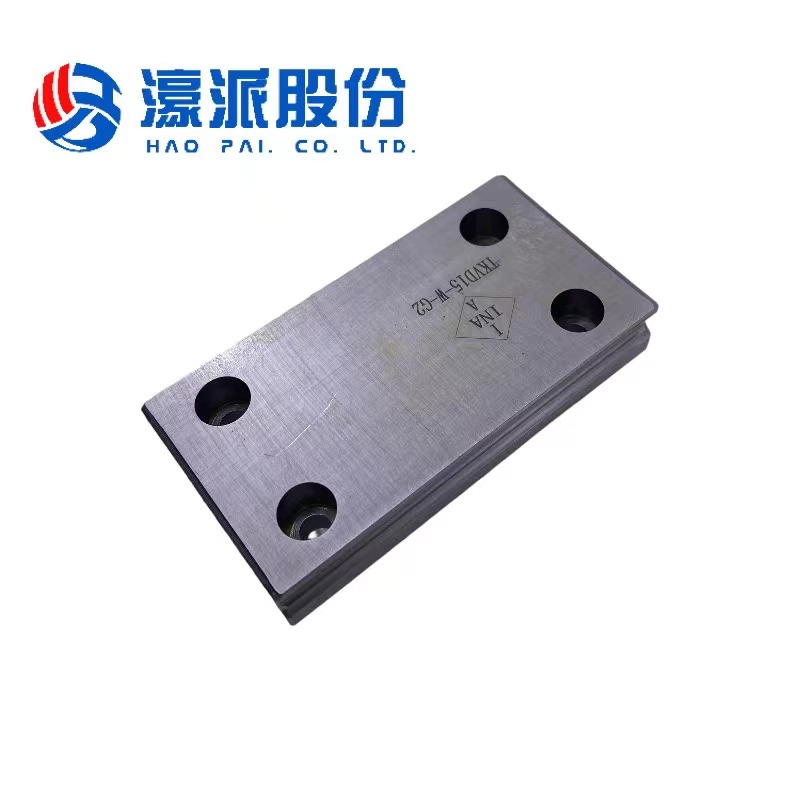

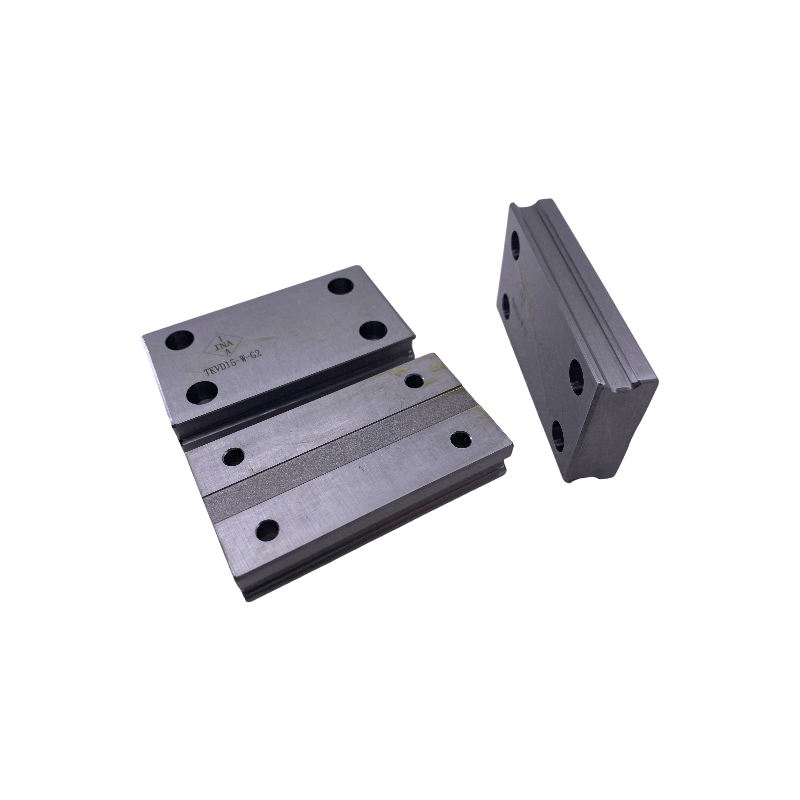

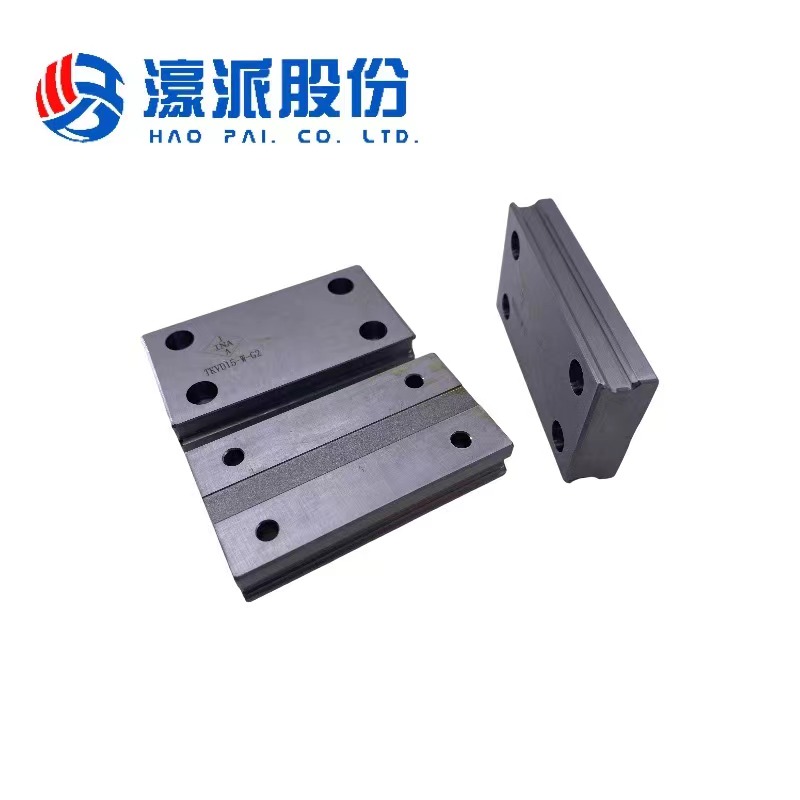

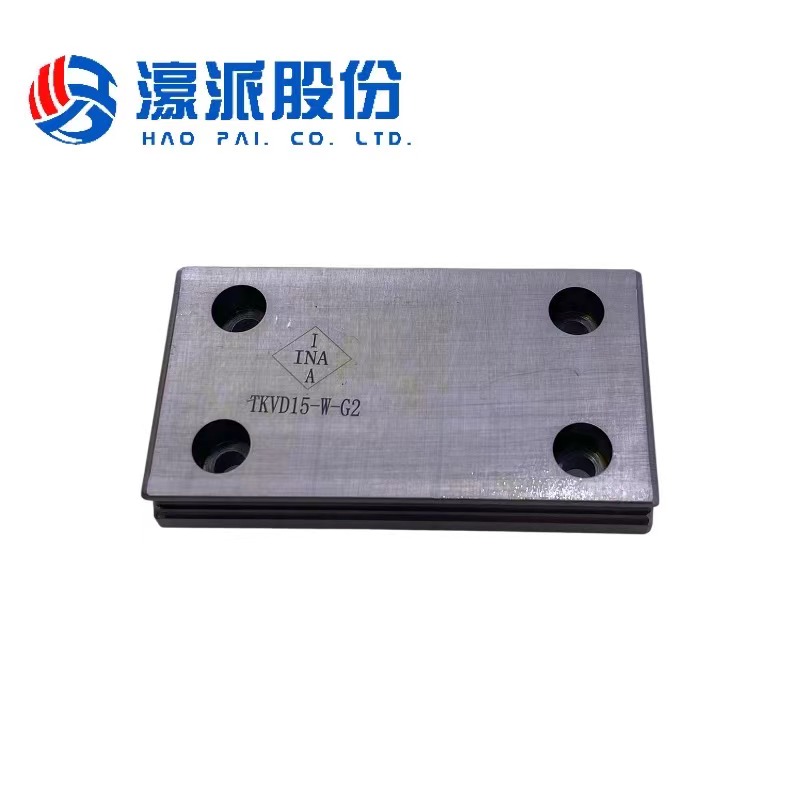

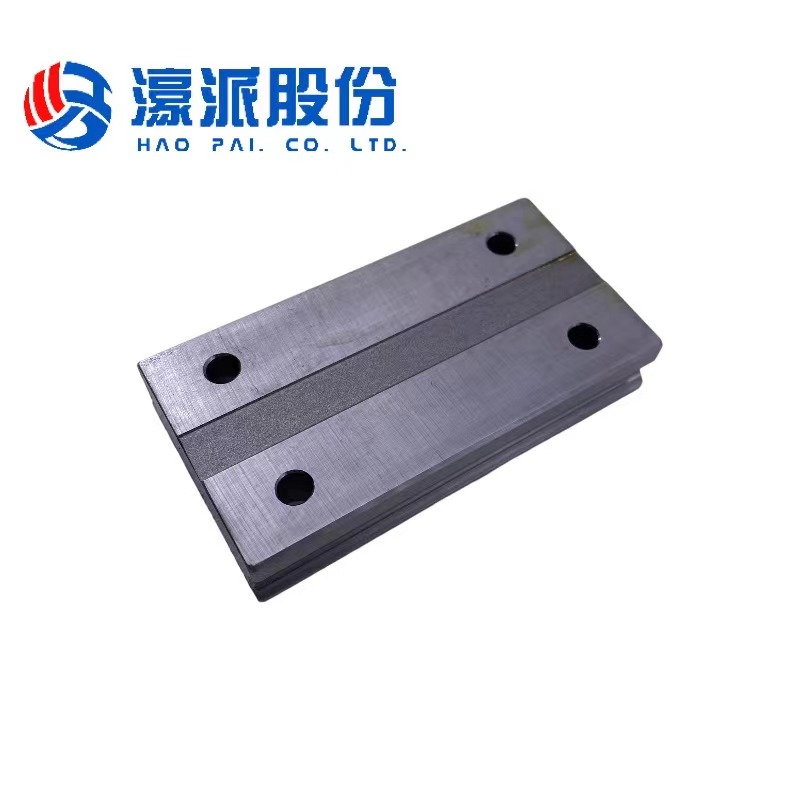

Linear Bearing Guide Rails KUVE 15

1. Compact Structure and Precise Adaptation: The INA Guide Rail KUVE 15 W L=70 adopts a narrow design ("W" stands for narrow rail series), with a width suitable for the installation space of small equipment. The standard length of 70mm (L=70) can directly meet the short-stroke transmission needs without additional cutting, greatly simplifying the equipment assembly process. It is especially suitable for transmission systems with limited space such as woodworking machinery and small CNC machine tools.

2. High Load Capacity and Stable Operation: As a ball-type linear guide rail, it has a built-in precision ball circulation structure, with a radial rated dynamic load of 4.2kN. It can stably bear combined loads in vertical and horizontal directions. During high-frequency reciprocating movements such as board pushing and component positioning in woodworking machinery, it can avoid jamming caused by uneven loads and ensure smooth transmission.

3. Wear Resistance, Durability and Low Maintenance: The guide rail body is made of high-hardness quenched steel (surface hardness ≥HRC58), combined with INA special grease, which has excellent wear resistance and a service life of more than 10,000 hours under normal working conditions. At the same time, the ball circulation system has good sealing performance, which can block the intrusion of wood chips and dust (suitable for dusty environments in woodworking workshops), reducing the frequency of daily cleaning and lubrication and lowering equipment maintenance costs.

4. High-Precision Guidance and Low Noise: Processed by precision grinding technology, the guide rail parallelism error is ≤0.02mm/m, which can achieve millimetre-level positioning accuracy, meeting high-precision needs such as board cutting positioning and engraving head movement in woodworking machinery. During operation, the friction coefficient between the balls and the rail contact surface is only 0.003-0.005, and the noise is controlled below 55 decibels, improving the workshop operating environment.

5. Wide Compatibility: It is compatible with the full range of INA slider of the same model (such as KUVE 15 B slider), and can flexibly match single-slider or multi-slider combinations according to load requirements. At the same time, it supports linkage with common transmission components (such as ball screws, timing belts), and can be easily integrated into the automated transmission system of woodworking machinery to improve the overall transmission efficiency of the equipment.

The INA Guide Rail KUVE 15 W L=70 is a ball-type linear guide rail designed specifically for small-space transmission scenarios in woodworking machinery. With its compact structure, high precision and strong environmental adaptability, it serves as a core transmission component for small woodworking equipment. Its "W" series narrow rail design (15mm width) and 70mm short length can accurately adapt to space-constrained equipment such as small woodworking engraving machines and woodworking mortise-tenon machines, enabling installation without additional cutting and greatly simplifying the assembly process; the positioning accuracy of ±0.01mm and parallelism error of ≤0.02mm/m can ensure dimensional consistency in fine processes such as wood carving and tenon processing, avoiding processing deviations caused by guide rail deviation.
