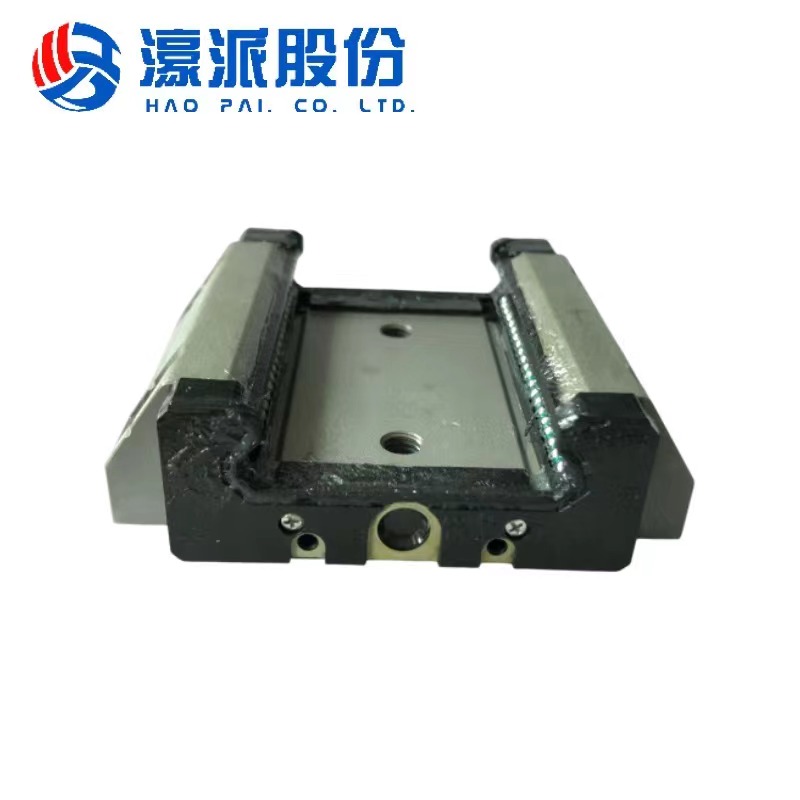

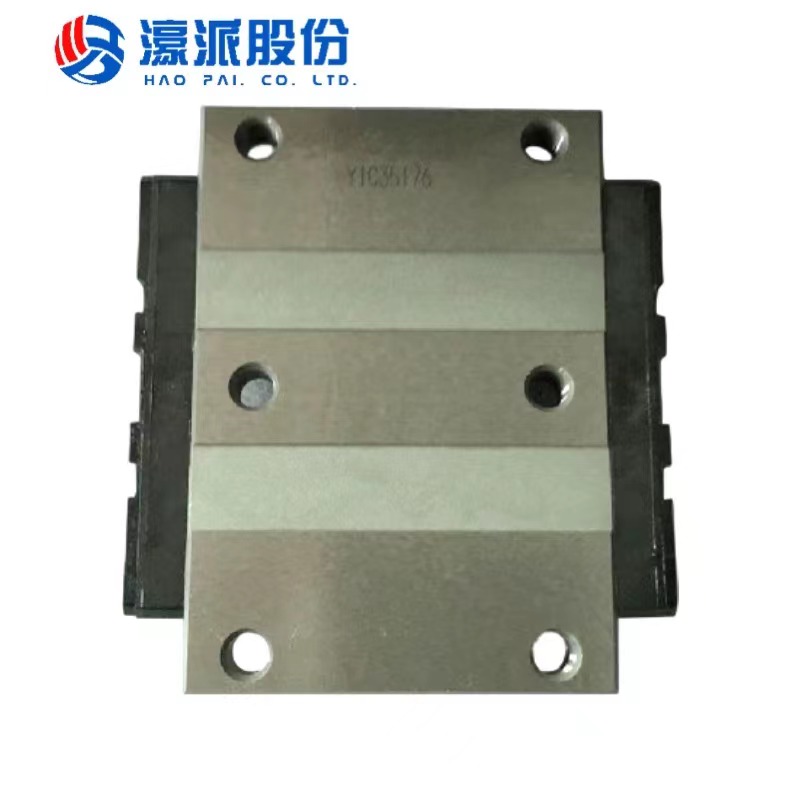

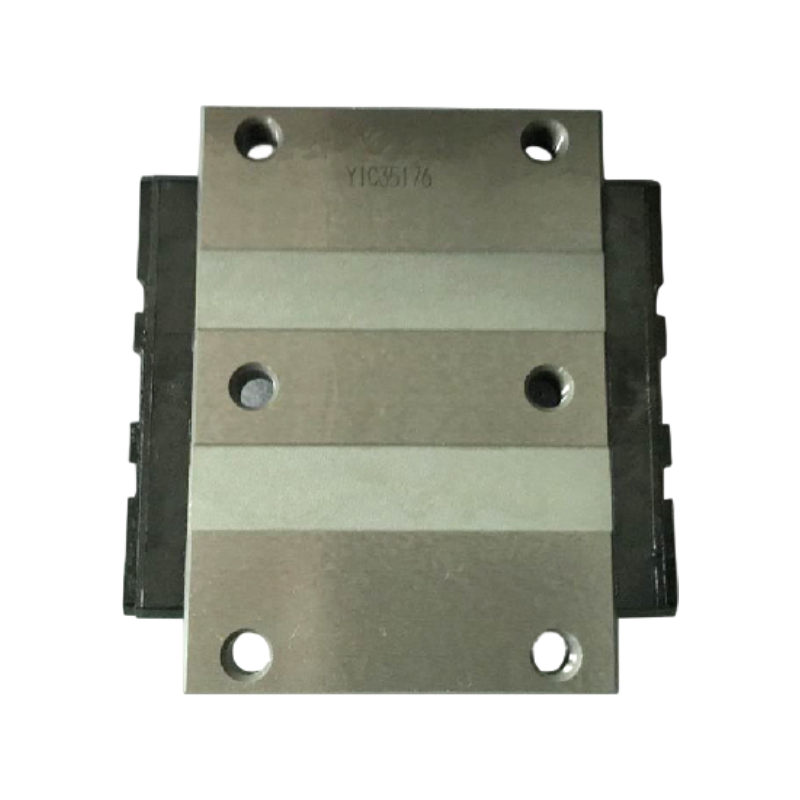

Linear Guide Slider Miniature Guideway-SHW27CA1SSC1

1. High-Precision Guidance and Low Operation Deviation

Relying on precision grinding technology to process the contact surfaces of the guide rail and carriage, the running parallelism is controlled within ≤5μm/1000mm, and the positioning accuracy can reach ±2μm/m. During operation, due to the stable friction coefficient (0.0015-0.006), there will be no "jamming" or "deviation", which is suitable for scenarios with strict requirements on motion accuracy such as CNC machining centers and precision testing equipment.

2. Modular Design and Convenient Installation

Adopting a standardized symmetrical structure and universal mounting holes (usually M6 or M8 threaded holes), the carriage can be quickly assembled without adjusting the parallelism of the guide rail; at the same time, it supports the series connection of multiple carriages (such as 2-4 carriages adapted to the same guide rail), and the load-bearing capacity can be flexibly adjusted according to the load demand, adapting to the design of different specifications of automated equipment.

3. Excellent Heavy-Load Adaptability and Impact Resistance

Adopting a widened raceway design and high-strength alloy steel (usually SUJ2 bearing steel or equivalent material), after integral quenching and surface strengthening treatment, the static load rating is over 20kN, and the dynamic load rating exceeds 15kN.

4. Long-Lasting Lubrication and Low Maintenance Cost

Built with a large-capacity grease storage cavity and evenly distributed lubrication channels, a single filling of grease can maintain an operation cycle of more than 8000km (under normal working conditions), without frequent shutdowns for grease replenishment; moreover, the wear coefficient of the carriage and guide rail is low (≤0.0005mm/100km), and the service life can reach more than 10,000 hours, greatly reducing the frequency of equipment maintenance and the cost of parts replacement.

5. Enhanced Sealing and Multi-Environment Adaptability

Integrating a dual protection structure of "double-lip seal + dust scraper" (the core feature of "SSC1" in the model), the protection level can reach IP65, which can effectively block metal chips, cooling fluid, dust and other pollutants from entering the internal raceway; at the same time, it supports a wide temperature range of -30~100℃, and can still maintain stable

SHW27CA1SSC1 is a linear carriage specially designed for medium-heavy load industrial scenarios, with the core design concept of "high load-bearing, high precision, and strong protection", perfectly adapting to various equipment that has strict requirements on transmission stability and durability.

From the performance perspective, the carriage features an integrally formed SUJ2 bearing steel body with HRC60-64 surface hardness after quenching. Its widened raceway boosts radial dynamic load to ≥15kN, enabling stable handling of CNC machine impacts and heavy loads to prevent deformation. Precision grinding ensures Class H running accuracy, with parallelism ≤5μm/1000mm and positioning accuracy ±2μm/m, ensuring precise tool and probe movements to minimize errors.

For environmental adaptability, the dual "double-lip seal + dust scraper" protection with IP65 rating blocks pollutants like metal chips and dust, maintaining stability in dusty conditions. The -30~100°C operating range covers scenarios like drying rooms and outdoor machinery, adapting without frequent adjustments.

Additionally, modular design with standardized mounting holes allows series connection of 2-4 carriages for flexible load adjustment. Low maintenance is achieved via a lubrication channel supporting ≥8000km operation per grease fill and a wear coefficient ≤0.0005mm/100km, reducing downtime and replacement costs for continuous production line reliability.
