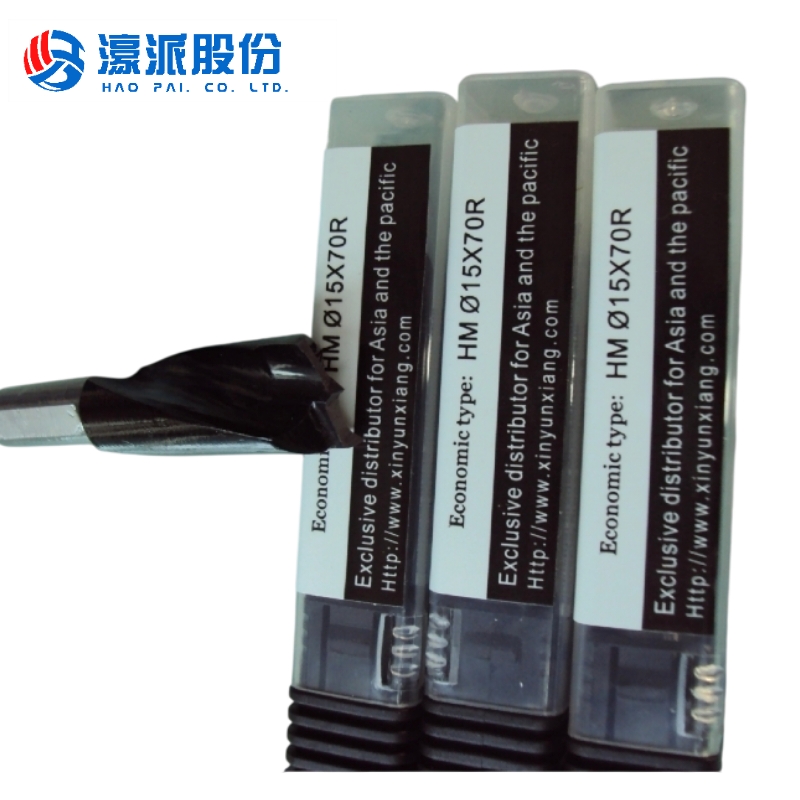

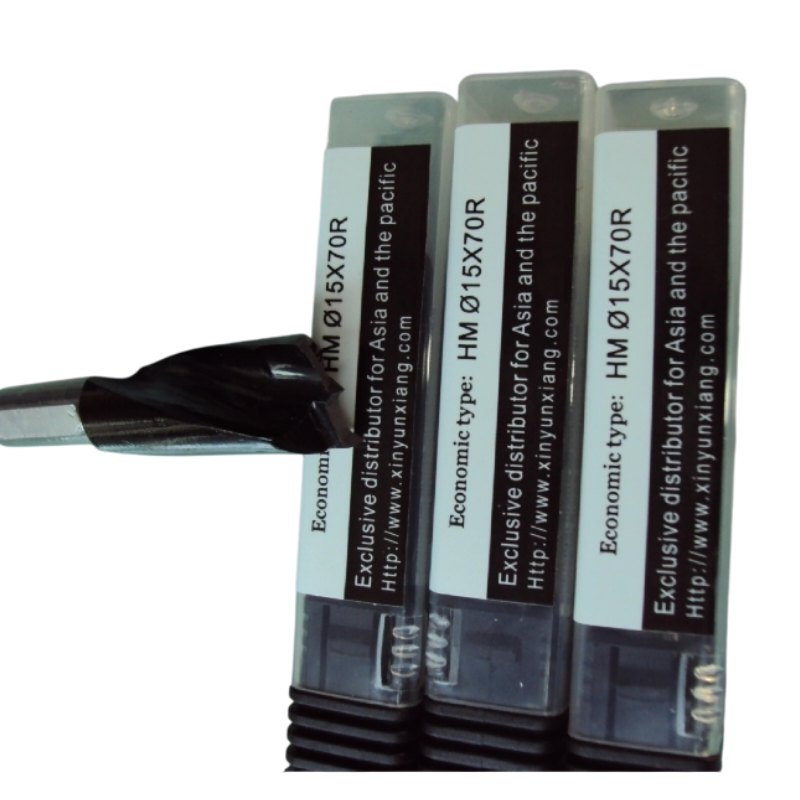

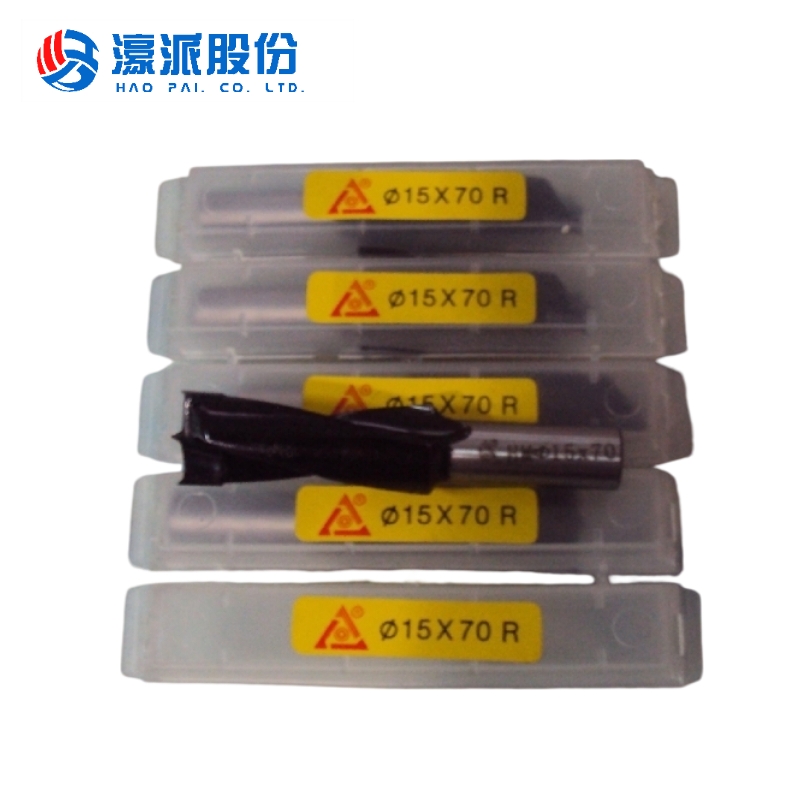

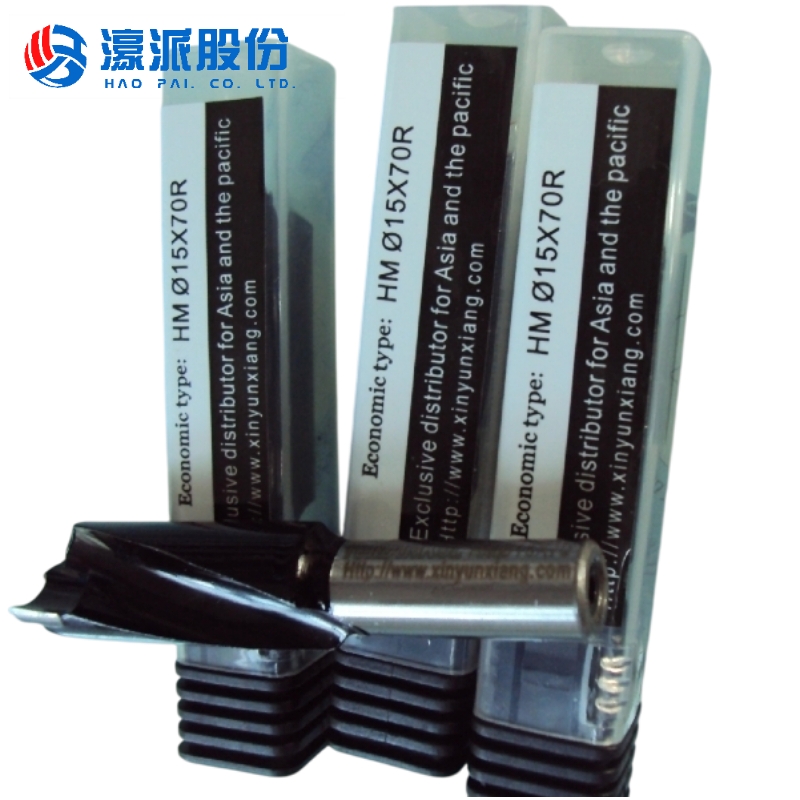

Trimming Cutter Tracking Knife for Edge Banding Machine

  • Haopai
  • Guangdong, China
  • 5-10days
  • 30 pcs month
  • 15*70R
1.Special Coating Technology 2.Multi-Flute Options 3.High-Precision Drilling 4.Extended Tool Life 5.Impact-Resistant Design

Product Advantages and Features

1.Extended Service Life

 Hardness reaches HRA92, with 5-8 times the wear resistance of standard HSS drill bits

 Average service life reaches 8,000-10,000 drilling cycles

 Special heat treatment process improves fatigue resistance by 40%

2.High-Efficiency Chip Removal Design

  Unique spiral flute design increases chip removal speed by 30%

 Optional 2-flute/4-flute configurations for different material requirements

  Optimized flute angle effectively prevents material re-adhesion

3.Exceptional Machining Accuracy

 Features German-imported tungsten carbide tips with concentricity controlled within 0.01mm

 Special edge grinding process ensures hole wall surface finish reaches Ra0.8μm

  Ideal for high-precision 32mm system drilling in panel furniture




CNC Cutter

Product Technical Parameters



Cutting edge length

35mm

Structural Parameters

Overall length

70±0.1mm


Blade runout

≤0.02mm


Shank diameter

15h6 grade precision

Performance Parameters

Recommended speed

3000-6000rpm


Suitable spindle power

≥3kW


 Maximum feed rate

5m/min

Material Configuration

Tool body

42CrMo alloy steel


Cutting edge

YG8X ultra-fine grain tungsten carbide


 Surface treatment

TiAlN nano-coating


Product Application Scope


1. Equipment Compatibility

Perfectly compatible with imported equipment like German HOMAG and Italian SCM ,Supports domestic gang drilling equipment interface standards , Automatic tool changing system supported


2.Machining Quality Assurance

Hole position accuracy: ±0.05mm , Hole diameter tolerance: H7 grade ,Burr-free and chip-free surface finish



3.Material Compatibility

Hardwoods: Rosewood, oak, walnut, etc.  Engineered wood: MDF, particle board, OSB  Composite materials: Melamine-faced panels, fireproof boards
