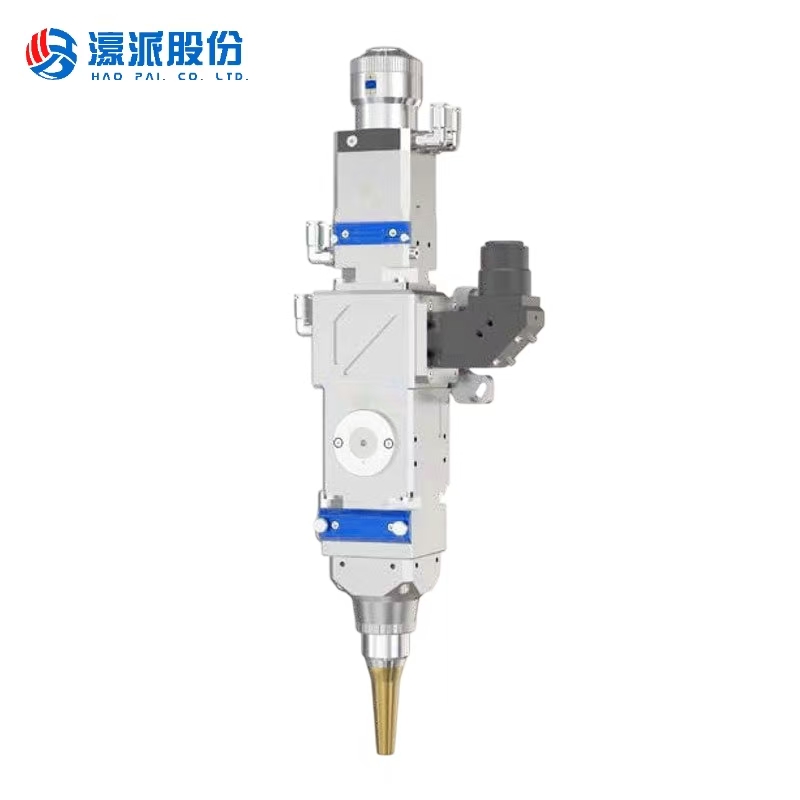

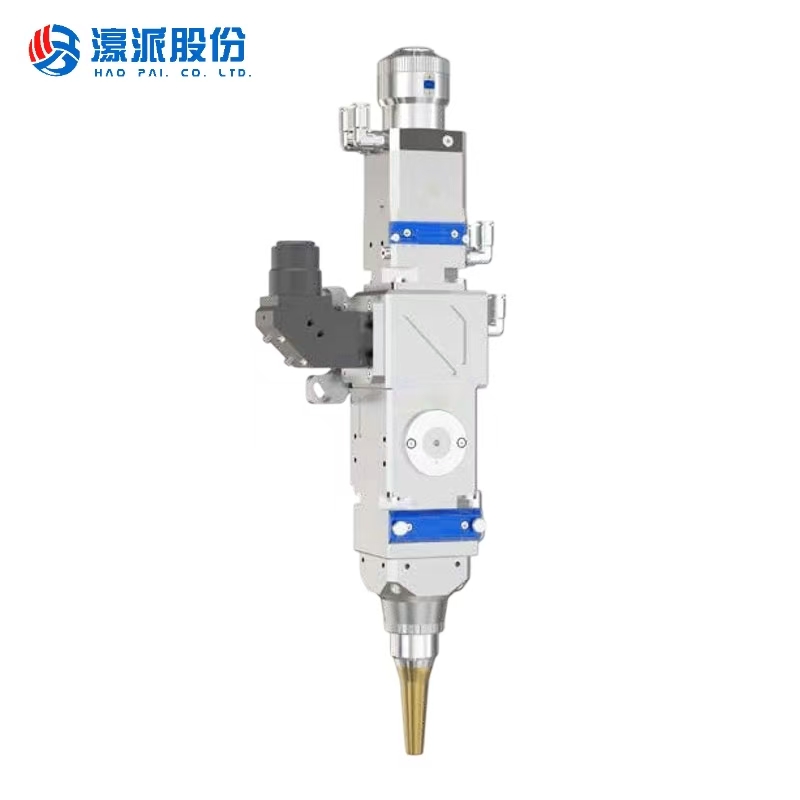

6kw Bw240 Transmission Type Laser Welding Head

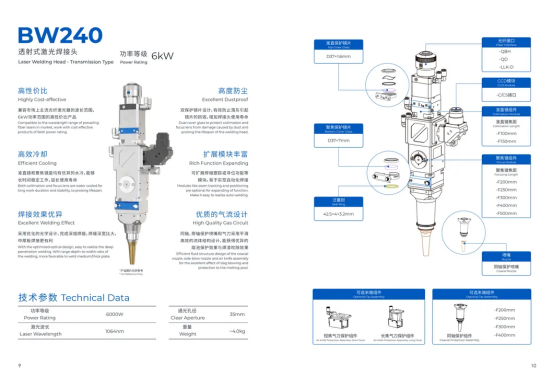

BW240 Transmissive Laser Welding Head: Advantages and Highlights 1. High Power Handling Capacity It can stably match 4KW-6KW high-power fiber lasers, without overheating attenuation during long-term welding. It satisfies the welding needs of thick plates (e.g., 8-12mm carbon steel), and the power density uniformity is ±5%. 2. Transmissive Optical Design It uses imported quartz transmissive lenses. Compared with the reflective design, it reduces optical loss (loss rate < 3%), enhances the laser energy transmission efficiency to more than 95%, and meanwhile prevents spot deviation caused by the contamination of reflective lenses, lowering the maintenance frequency. 3. Wide-Range Focal Length Adjustment It supports flexible focal length adjustment ranging from 150mm to 300mm, which can be adapted to different welding distance scenarios (e.g., deep cavity component welding and large-size workpiece splicing). The adjustment precision reaches 0.01mm, ensuring that the spot size accurately matches the weld width. 4. High-Reflective Material Compatibility For high-reflective metals like aluminum and copper, it optimizes the optical coating and energy buffer design, reduces the damage to the laser caused by laser reflection, achieves stable welding of high-reflective materials, and decreases the welding spatter by over 30%. 5. Modular Structure Design The core components including optical components and protective lens groups adopt a quick-detachable design. It only takes 2-3 minutes to replace the protective lens, which significantly shortens the shutdown maintenance time. Meanwhile, it supports the customization of different fiber interfaces (e.g., QBH and D80) to adapt to mainstream brand lasers (e.g., IPG and Raycus). 6. Real-Time Monitoring and Protection It is equipped with a built-in temperature sensor and a lens contamination detection module. When the lens temperature exceeds the threshold (＞60℃) or the contamination degree reaches the set value, it will automatically trigger an alarm and cut off the laser, preventing equipment damage and enhancing operational safety. 7. High-Precision Weld Seam Control Equipped with a high-precision servo drive system, it can achieve a weld seam tracking accuracy of ±0.02mm. It is suitable for welding complex curved weld seams (e.g., pressure vessel circumferential seams) with an attractive appearance, without the need for subsequent grinding.

Applicable to low power diode and fiber lase welding market demand, and work with all kinds of metal

Both collimation and focus lens ae water cooled fo long work duration and stability, to polong lifespan

Optimized optical design enables high-speed and high quality low power lase welding

Modules like seam tracking and posit1on1ng a e optional fo expanding of function. Make it easy to realize auto welding
