ball-bearing-roller-bearing-plain-bearing

  • SKF
  • Sweden
  • 5-10days
  • 100 per month

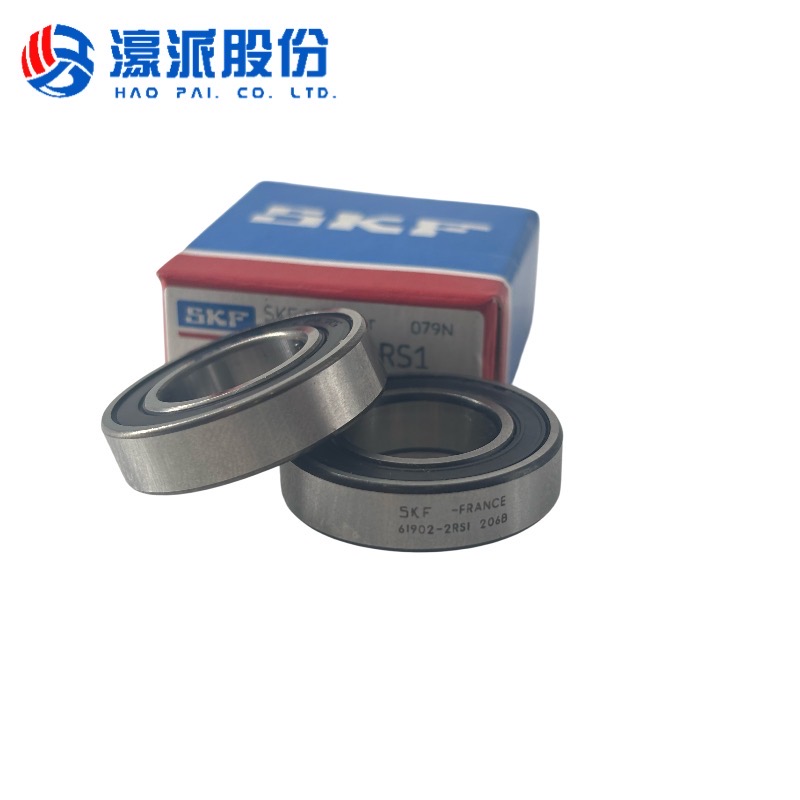

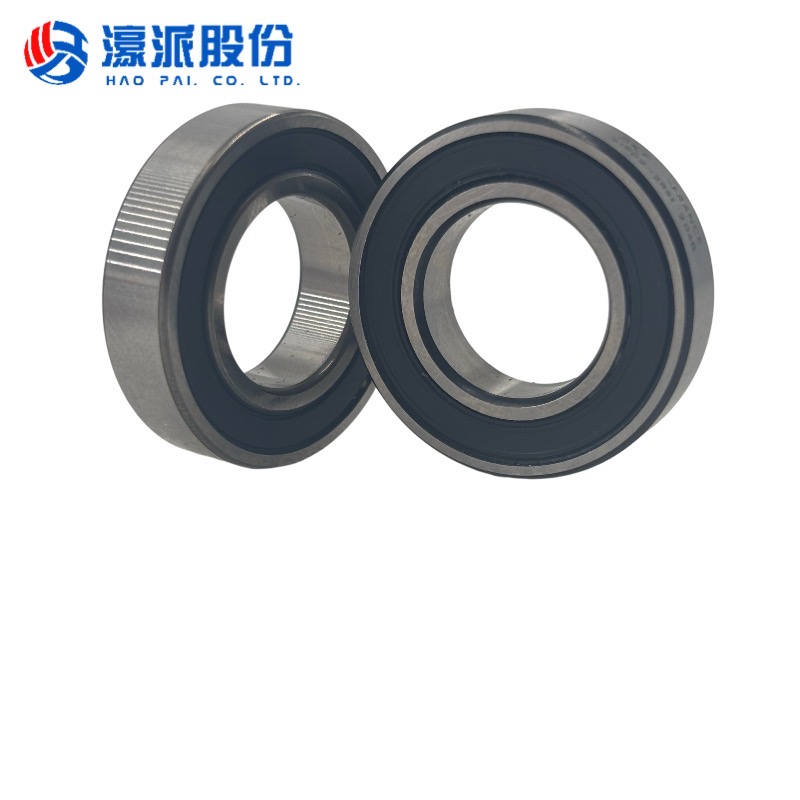

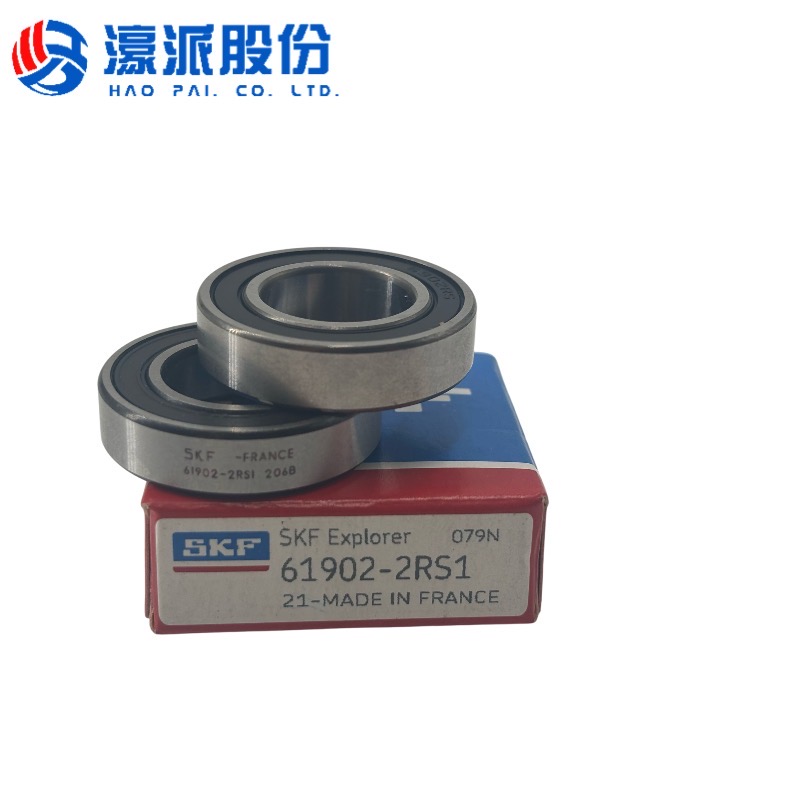

  • 61902 2RS1
  • 28*15*7
Dual Sealing and Long-Term Protection Pre-lubricated with high-performance grease, reducing friction and wear for medium-to-high-speed applications. Precision-ground raceways and balls ensure smooth and quiet operation, ideal for precision instruments and small motors. Made from chrome steel (GCr15) with strict heat treatment, providing high load capacity and durability.

Product Advantages and Features

  1. 1.Double Rubber Sealing Protection

    • Double-sided contact rubber seals (2RS) effectively block dust, dirt, and moisture, significantly extending service life in contaminated environments.

  2. 2.Pre-filled High-Performance Grease

    • Pre-lubricated with SKF premium grease to reduce friction and wear, supporting medium-to-high speeds with minimal maintenance.

  3. 3.Low Vibration and Quiet Operation

    • Precision-ground raceways and balls ensure smooth and quiet performance, ideal for precision instruments and household appliances.

  4. 4.Broad Temperature Tolerance

    • Operating temperature range: -40°C to +120°C (limited by seal and grease properties).

  5. 5.High Load Capacity and Durability

    • Made from high-purity chrome steel with specialized heat treatment, delivering excellent fatigue resistance and load capacity.

Metal-Shielded Bearing

Product Technical Parameters


Parameter Categories

Parameter Name

Value

Unit

Additional Notes


Basic Dimensions

Bore Diameter

15

mm

Fits shaft diameter, must match shaft tolerance



Outer Diameter

28

mm

Outer dimension for fitting with bearing housing



Width

7

mm

Overall axial thickness of the bearing



Chamfer Radius

0.3

mm

Inner/outer ring edge chamfer to prevent scratches during installation


Load-Carrying Performance

Dynamic Load Rating

4.55

kN

Radial load capacity for long-term operation



Static Load Rating

2.7

kN

Radial load capacity at rest or low speed



Limiting Speed (Grease Lubrication)

18000

r/min

Maximum safe speed with grease lubrication



Limiting Speed (Oil Lubrication)

24000

r/min

Maximum safe speed with oil lubrication




Product Application Scope


Application Scope of SKF Bearing 61902 2RS1

As a thin-walled deep groove ball bearing, the SKF Bearing 61902 2RS1, with its compact dimensions (15mm inner diameter, 28mm outer diameter) and effective protection design of double-sided rubber seals (2RS1), is suitable for small and medium-sized equipment with low to medium speed, requiring sealing, dust prevention, and stable operation.



Product Description


Category

Description

Value/Characteristics

AType

Deep Groove Ball Bearing


Model

SKF 61902-2RS1

SKF 61902-2RS1

Temperature

Operating Temperature

-40°C to +120°C

Performance

Limiting Speed (Grease)

22,000 rpm


Static Load Rating (C0)

1.8 kN


Dynamic Load Rating (C)N

T4.38 kN


With its sealing performance, environmental resistance, and low maintenance requirements, SKF 61902-2RS1 significantly enhances the reliability, service life, and productivity of woodworking equipment, making it ideal for precision wood processing in dusty and humid environments.
