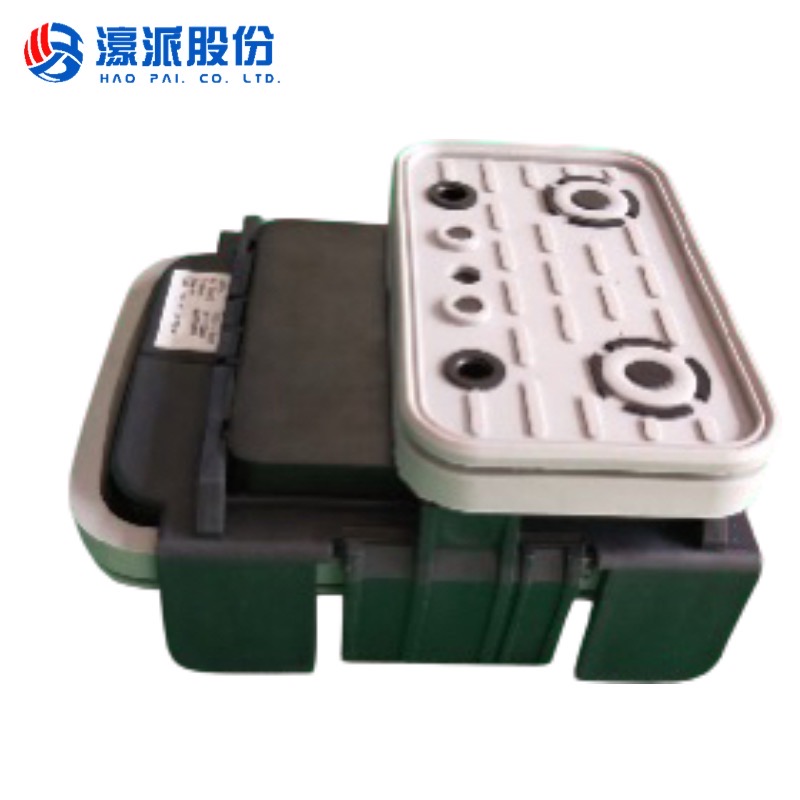

acuum Chuck for CNC Machining Center

  • Haopai
  • Guangdong, China
  • 5-10days
  • 100 per month
  • 4011110368
  • 125*75*50
1、Quick Setup / Rapid Changeover 2、Distortion-Free Clamping 3、5-Side Machining Capability 4、High Flexibility 5、Workpiece Protection 6、Increased Production Efficiency

Product Advantages and Features


1.Excellent Clamping Flexibility

Eliminates the need for complex, dedicated mechanical jigs. Workpieces of various shapes can be clamped instantly by creating vacuum, making it ideal for high-mix, low-volume flexible manufacturing


2.Full, Unobstructed Access

The workpiece is held flat on the table with its top and sides fully exposed, providing unparalleled tool access. This is perfect for 5-axis machining, 3D engraving, and processing large sheets.


3.Uniformly Distributed Holding Force

The vacuum force is distributed evenly across the entire contact surface. This effectively prevents distortion of thin-walled or delicate parts (e.g., aluminum alloy sheets, carbon fiber panels, plastic) caused by localized clamping pressure, significantly improving machining accuracy and consistency.


4.Extremely High Setup Efficiency

Loading a part and activating the vacuum takes mere seconds. Compared to the tedious setup, alignment, and calibration of traditional fixtures, it drastically reduces changeover time and preparation time, greatly increasing machine utilization.


5.Superior Workpiece Surface Protection

Non-contact clamping means no scratches, marks, or deformation from mechanical force. It is the ideal solution for protecting pre-finished, coated, mirrored, or delicate surfaces (e.g., glass, acrylic, advanced composites).

Vacuum Suction Pad

Product Technical Parameters

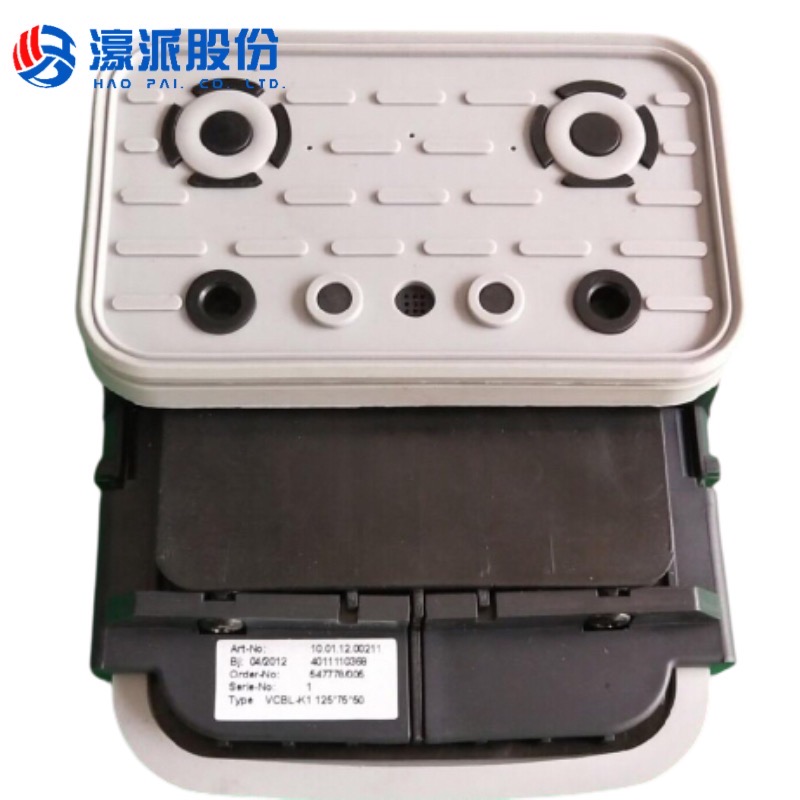

Product ModelVCBL-K1
Order-NO647778/005
Overall Dimensions (L x W x H)125 x 75 x 50 mm
Vacuum PortM5 or G1/8
MaterialSilicone Rubber


Product Application Scope



Electronics Manufacturing

PCB Drilling, Routing, and Milling. Vacuum chucks provide unobstructed clamping, preventing damage to delicate circuits.


Woodworking & Furniture Manufacturing

Clamping wood boards, particle boards, MDF for cutting, engraving, and grooving. Used for making furniture, doors, windows, and decorations.







Product Description


Description
Rapid Changeover, High Flexibility
Distortion-Free Clamping, High Accuracy
5-Side Machining, Unobstructed Access
Zone Control, Energy Efficiency
Non-Marring, Surface Protection



These advantages make vacuum chucks an indispensable advanced fixturing solution in modern CNC machining, particularly in the processing of sheet materials, composites, and non-metallic materials.
