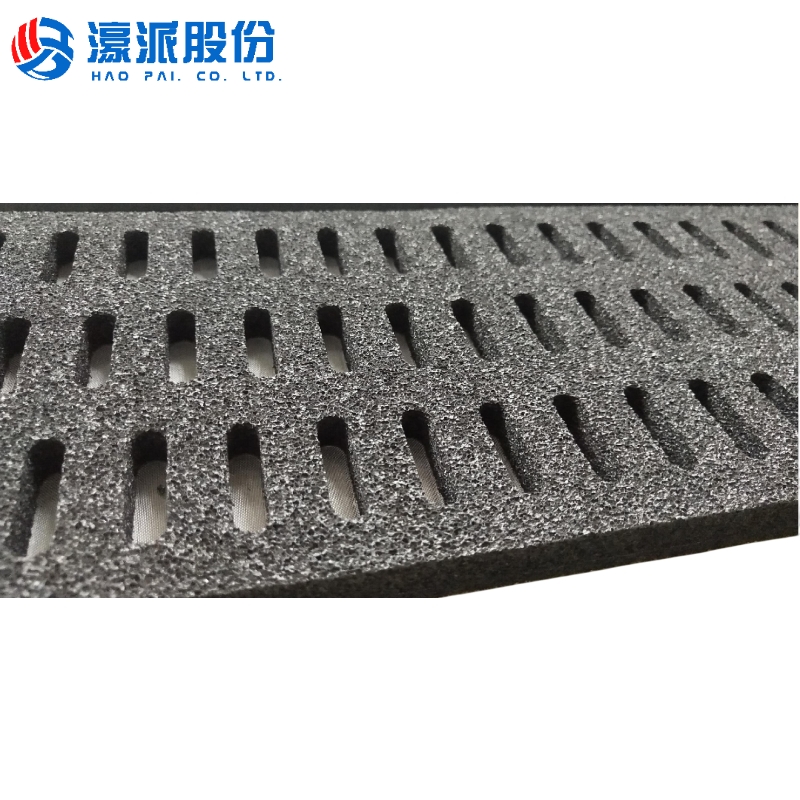

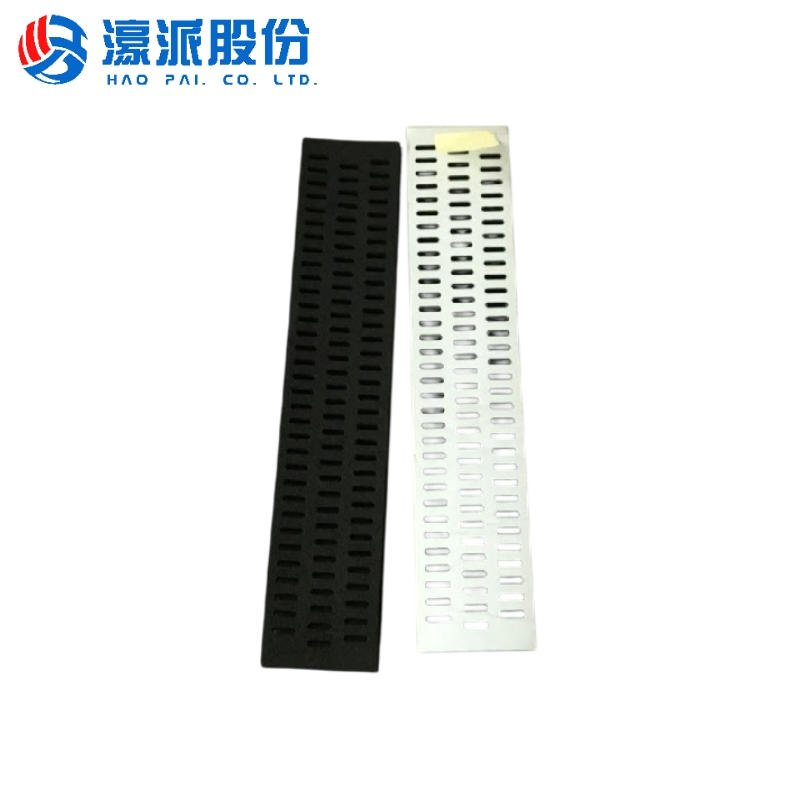

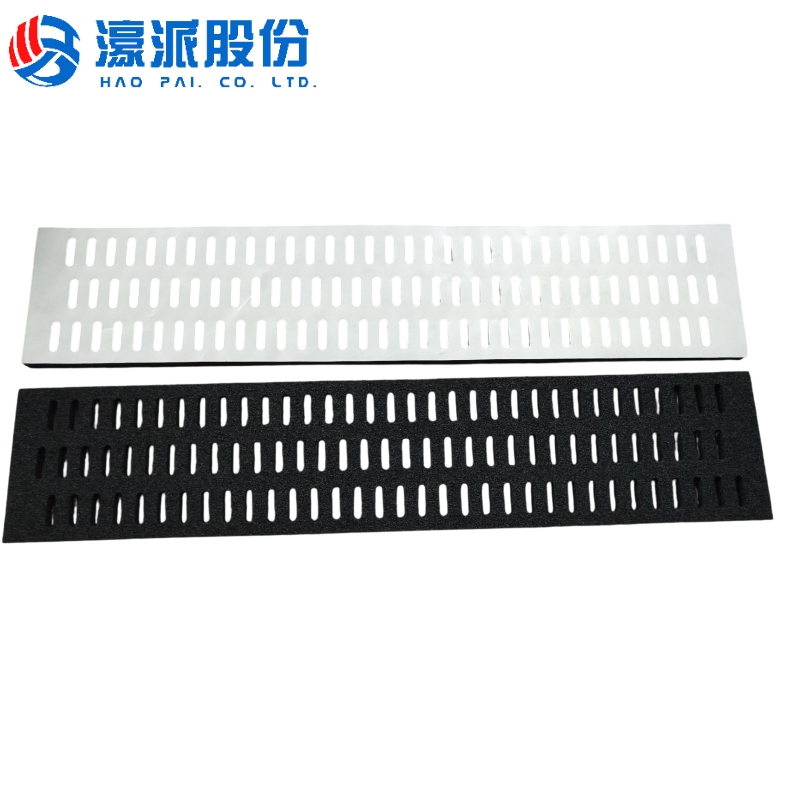

Sealing Frame Bottom Suction Plates Vcdr-1

I. Product Advantages

1. 1.Superior Sealing Performance
   Thanks to its soft and compressible nature, it conforms perfectly to rough, textured, or slightly curved surfaces, bridging micro-imperfections to achieve excellent vacuum seals even on challenging surfaces, greatly improving gripping reliability.

2.


3. 2.Effective Cushioning and Protection
   Acts as a flexible barrier that absorbs impacts and vibrations during pick-and-place operations, effectively preventing scratches and indentations on delicate, fragile, or finished surfaces, enabling non-damaging handling.

4.


5. 3.Significant Efficiency Gain
   Rapidly compensates for surface irregularities, accelerating vacuum formation and shortening cycle times, thereby directly boosting the overall tempo and efficiency of automated production lines.

6.


7. 4.Excellent Dust Protection
   The porous structure effectively blocks dust and fine debris from entering the vacuum line, protecting the vacuum generator, extending system life, and reducing maintenance needs, especially in dusty environments.

8.


9. 5.Durable with Long Service Life
   Manufactured from high-quality elastic foam material with excellent compression set resistance and fatigue durability, ensuring long-lasting sealing performance.

II. Product Features

1. 1.Material: Typically made from high-elasticity, wear-resistant open-cell foam such as Polyurethane (PU) or Nitrile Rubber (NBR).

2.


3. 2.Shape/Structure: Designed with specific sealing lips or flat profiles to optimize conformity.

4.


5. 3.Hardness: Features low Shore hardness (e.g., Shore A 10-30°) for exceptional flexibility.

6.


7. 4.Temperature Resistance: Operating temperature range typically from -10°C to +60°C (varies by material).

8.


9. 5.Color: Commonly black, gray, or white.

10.


11. 6.Primary Functions: Surface compensation, cushioning/damping, auxiliary sealing, dust protection.

1. 1.Handling of Rough-Surface Workpieces:

2. Widely used for vacuum gripping of uneven surfaces such as bricks, porous concrete slabs, wooden panels, and forged blanks, where the sponge pad effectively fills surface gaps to create a reliable seal.

3.


4. 2.Processing of Damage-Prone Materials:

5. Particularly suitable for precise handling of easily scratched surfaces like glass, polished metals, anodized aluminum, and coated panels, providing cushioning protection to prevent surface damage.

6.


7. 3.Handling of Porous Materials:

8. Used for gripping materials difficult to seal with traditional suction cups, such as porous ceramics, foam materials, and textile products, achieving stable gripping by increasing contact area and compensating for leakage.

9.


10. 4.Packaging and Logistics Industry:

11. Suitable for handling easily deformable materials like corrugated boxes and packaging bags, where the sponge pad adapts to surface deformation while maintaining stable vacuum levels.

12.


13. 5.Food Processing Industry:

14. Sponge pads made from food-grade materials can be used for automated handling of food products like bread, pastries, and agricultural produce, meeting hygiene requirements.

The sponge pad designed specifically for the ATX-SVK640-3R18-20F suction cup significantly enhances gripping stability on rough or fragile workpieces through its highly elastic porous structure, providing exceptional surface adaptability and cushioning protection.
