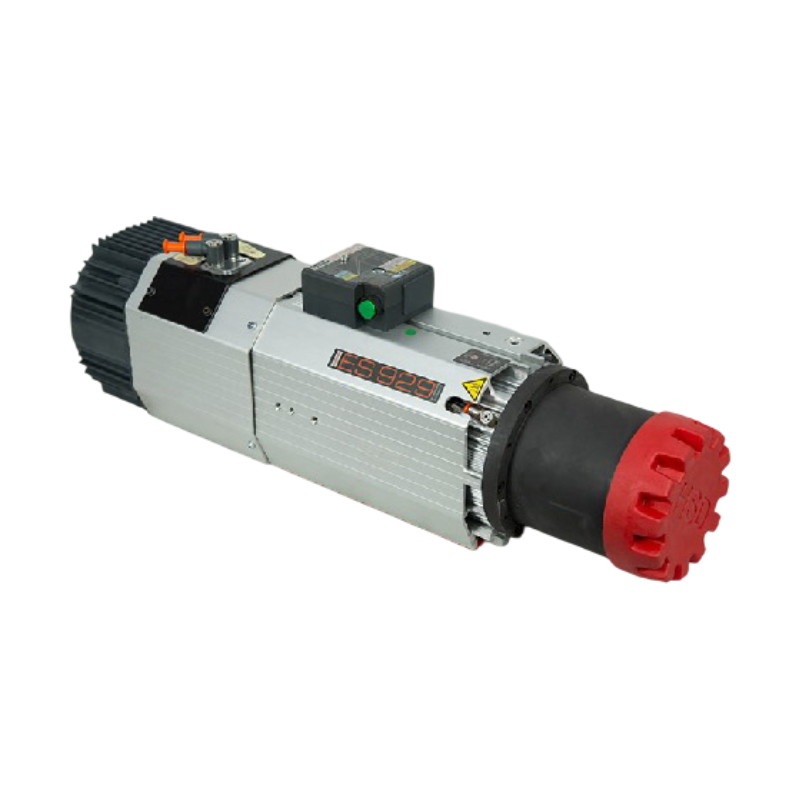

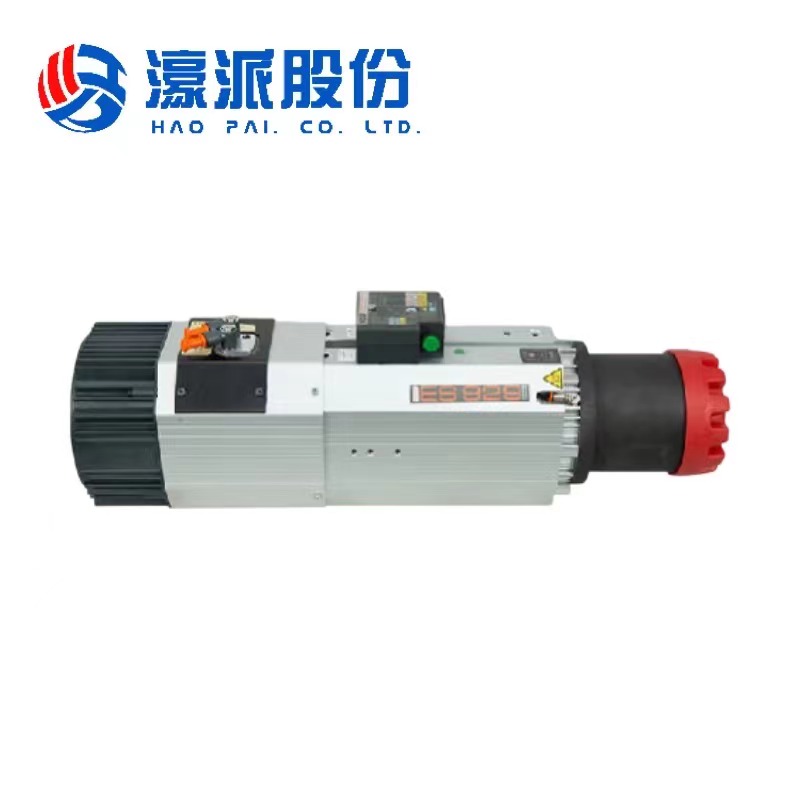

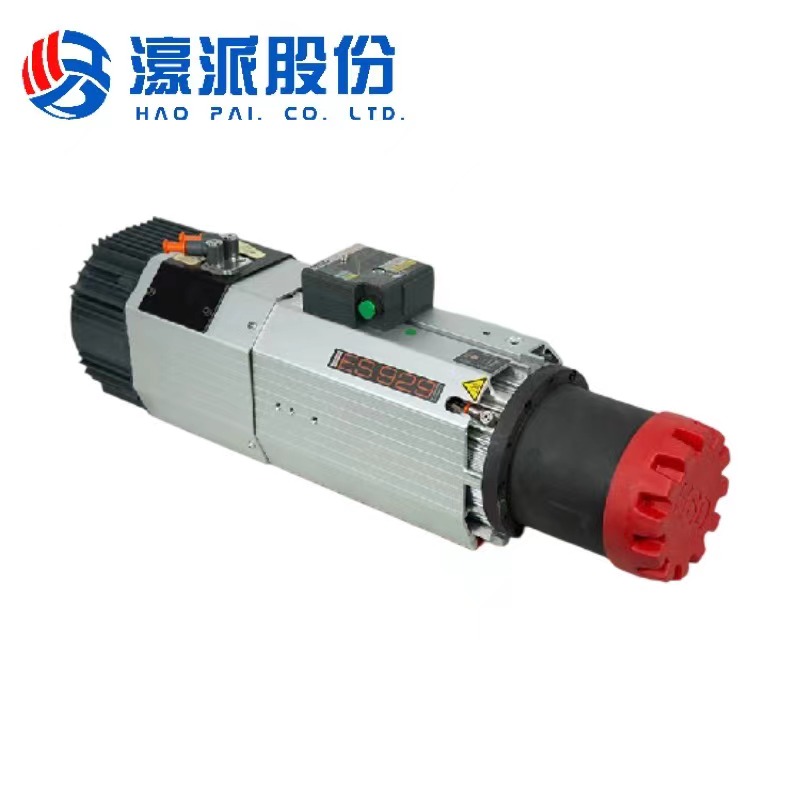

CNC MOTORS High-Speed Precision Spindle

1. High-precision Tool Holder Compatibility：Adopts HSK F63 NL standard tool holder interface, with double positioning design of taper and end face. The repeat positioning accuracy is within 0.002mm, which effectively improves the stability of tool clamping. It is suitable for high-precision machining scenarios such as high-precision milling and grinding, avoiding machining deviations caused by loose tool holders.

2. High Rigidity Structure Design：The ES929 specification is equipped with a reinforced spindle housing and a high-rigidity bearing set. The radial rigidity reaches [specific rigidity value, if available] N/μm, and the axial rigidity reaches [specific rigidity value, if available] N/μm. It can withstand impact loads during heavy cutting, reduce spindle deformation, and ensure the contour accuracy during complex surface machining.

3. High-speed and High-efficiency Operation Performance：With optimized electromagnetic drive system and lightweight rotor design, the maximum speed can reach 18000r/min (adjust according to actual parameters), and stable torque output is maintained in the high-speed range. Combined with the fast tool change feature of HSK F63 NL interface, it greatly improves processing efficiency, especially suitable for batch parts processing needs.

4. High Protection and Environmental Adaptability：The overall protection class of the motor reaches IP67, and the HSK F63 NL interface is equipped with a double dust-proof sealing ring, which can effectively isolate cutting fluid, iron chips and dust from entering; at the same time, it has passed the high and low temperature environment test of -20℃ to 60℃, suitable for humid and dusty heavy machinery processing workshop environments.

5. Excellent Heat Dissipation and Temperature Control Capability：Adopts dual-channel spiral heat dissipation air duct and ceramic-coated heat dissipation shell, the heat dissipation efficiency is 25% higher than that of traditional structures; built-in intelligent temperature control sensor monitors the spindle temperature in real time, and automatically adjusts the heat dissipation intensity when the temperature exceeds the threshold, avoiding bearing wear or precision degradation caused by high temperature.

1. Precision Metal Processing Field：It is suitable for CNC milling machines, machining centers and other equipment, and can efficiently complete precision milling, drilling and tapping of metal materials such as aluminum alloy, stainless steel and titanium alloy. Relying on the high positioning accuracy of the HSK F63 NL interface and the repeat positioning accuracy of ≤0.002mm, it can meet scenarios with strict requirements on machining accuracy such as aerospace parts and automotive precision components (such as engine blocks and gear blanks of gearboxes). At the same time, the maximum speed of 18000r/min can improve the efficiency of metal cutting and adapt to the needs of mass production.

2. Mold Manufacturing Field：For the cavity processing and surface finishing of plastic molds and stamping molds, the high rigidity (radial/axial rigidity suitable for heavy-duty cutting) and G0.4-level dynamic balance performance of the motor can effectively reduce processing vibration, ensure the surface roughness (up to below Ra0.8μm) and contour accuracy of the mold cavity, and avoid mold size deviation caused by vibration, which is suitable for the efficient manufacturing of small and medium-sized molds.

3. 3C Electronic Components Processing Field：It is applicable to the processing of 3C products such as mobile phone middle frames, laptop casings and tablet computer structural parts. Its IP67 protection level can isolate aluminum chips and cutting fluid generated during processing, adapting to the dusty and humid 3C processing workshop environment; the low-noise (≤70dB) operation feature can improve the operating environment of the mass production workshop of electronic components. At the same time, the standardized wearing part design reduces the later maintenance cost, adapting to the high productivity and high stability production needs of the 3C industry.

4. Medical Device Components Processing Field：It can be used for the precision processing of stainless steel surgical instruments (such as scalpels and hemostats), aluminum alloy medical equipment casings and titanium alloy implantable medical devices (such as artificial joint accessories). The high precision and low vibration characteristics of the motor can ensure the dimensional consistency and surface finish of medical device components, meeting the strict quality standards of the medical industry; the wide operating temperature range of -20℃~60℃ can adapt to medical component processing workshops with different cleanliness and temperature control requirements.

5. General Machinery Processing Field：In the processing of components of general mechanical equipment (such as pump bodies, valves and reducers), the motor can be compatible with mainstream CNC systems such as Siemens 828D and Fanuc 0i-MF, and can be quickly connected to the existing production line without additional adaptation, reducing the cost of equipment upgrading. At the same time, its strong power output and efficient heat dissipation performance can cope with medium and heavy-duty cutting of materials such as cast iron and cast steel, adapting to the processing needs of various types and specifications of components in the general machinery industry.

The 2017955440 model ES929 HSK F63 NL spindle motor is a core power component specially designed for high-precision and high-efficiency industrial machining scenarios. With its excellent performance and wide adaptability, it has become a preferred equipment in the field of precision manufacturing. In terms of core configuration, the motor adopts the HSK F63 NL standard tool holder interface, and realizes a repeat positioning accuracy of ≤0.002mm through double positioning of the taper and end face. It is matched with a G0.4-level dynamic balance rotor design, which effectively suppresses vibration during high-speed operation and ensures machining accuracy and surface finish.
