Homag Senotec Glue Level Sensor for Edge Bander Glue Pot
- Haopai
- Guangdong, China
- 5-10days
- 4008400145
fter-sales Service: Online Support, Video Technical Support
Warranty: 6months
Logo Printing: with Logo Printing
Size: Middle
Customized: Customized
Type: Base
Customization: Available
Basic Info.
Model NO.
4-008-40-0145
Material
Stainless Steel
Certification
CE
Color
White
Condition
New
Transport Package
Package
Specification
piece
Trademark
Haopai
Origin
Guangdong, China
HS Code
8466920000
Production Capacity
5000PCS/Month
Product Description
• HOMAG 4-008-40-0145 glue level sensor
• SENOTEC level sensor R3E-5/12
• Sensor R3E-5/12 level active 30mm
• Level sensor for Homag edge bander glue pot
• SENOTEC level controller R3E-5/12 13011
• HOMAG 4008400145 glue level sensor R3E-5/12 30mm
• SENOTEC level controller series R
• Glue level sensor for Brandt glue pot

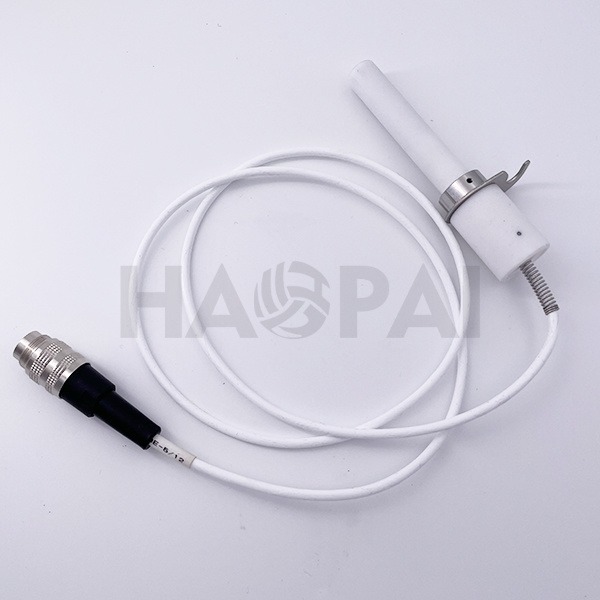

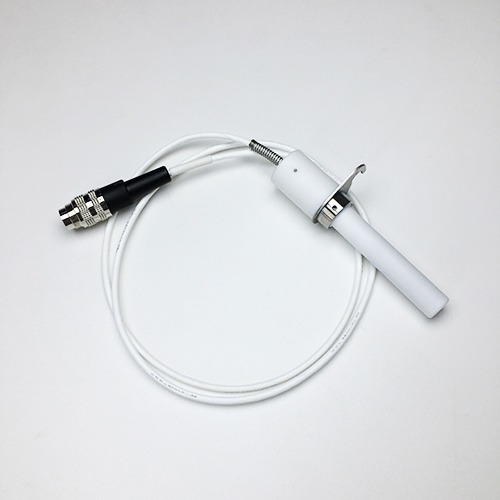

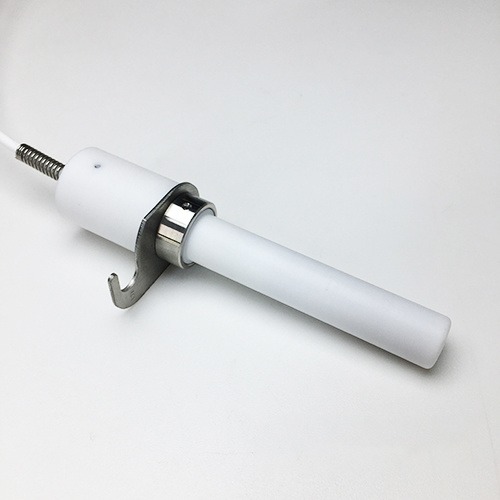

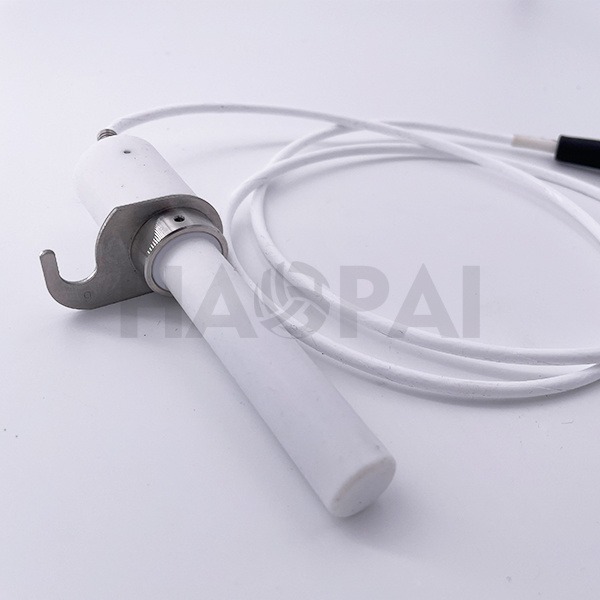

4-008-40-0145 Homag 4008400145 SENOTEC Glue Level Sensor For Edge Bander Glue Pot
This part is SENOTEC R3E-5/12 13011 glue level sensor for edge bander glue pot. Homag replacement part number is 4008400145 or 4-008-40-0145.
The glue level sensor is an important part of premelt-adhesive systems in woodworking edgebanding machines. The premelt-adhesive systems consist of a storage tank, a granulate tank for premelting, and a small glue pot. In the tank for premelting, glue granules are melted under low heat so that it liquefies and runs into the glue pot. In the glue pot, the glue is heated to its final temperature and is led onto the glue roller by a conveyor device. A level sensor ensures that only the required amount of glue is melted.
SENOTEC level controller series of technical data
Brand | SENOTEC |
Type | R3E-5/12 |
Part-No | 130 11 |
Ambient temperature sensor | -10°C to 250°C |
Ambient temperature cable | -10°C to 200°C |
Material | PTFE / Al |
Cable length incl. plug | ca. 1140 mm |

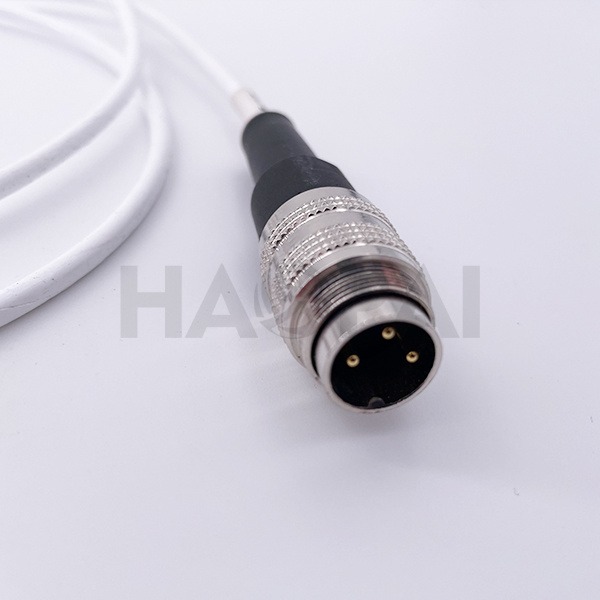

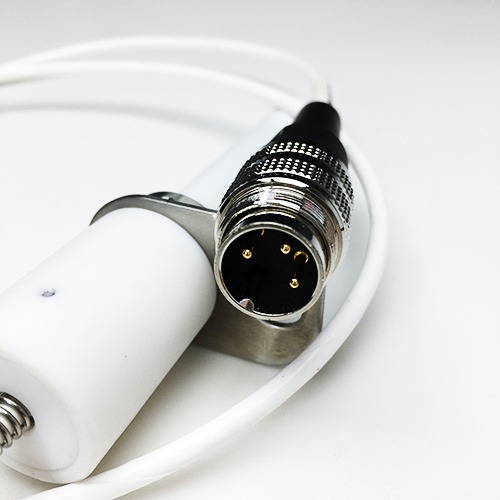

Plug in | 3-phase DIN41524 |
Useable with | Switching amplifier series CLS, CLC, CSV, DLC10, DLC22 |
Active zone / Switching range: related to probe tip | 2 - 45 mm |
Mounting position | vertical |
