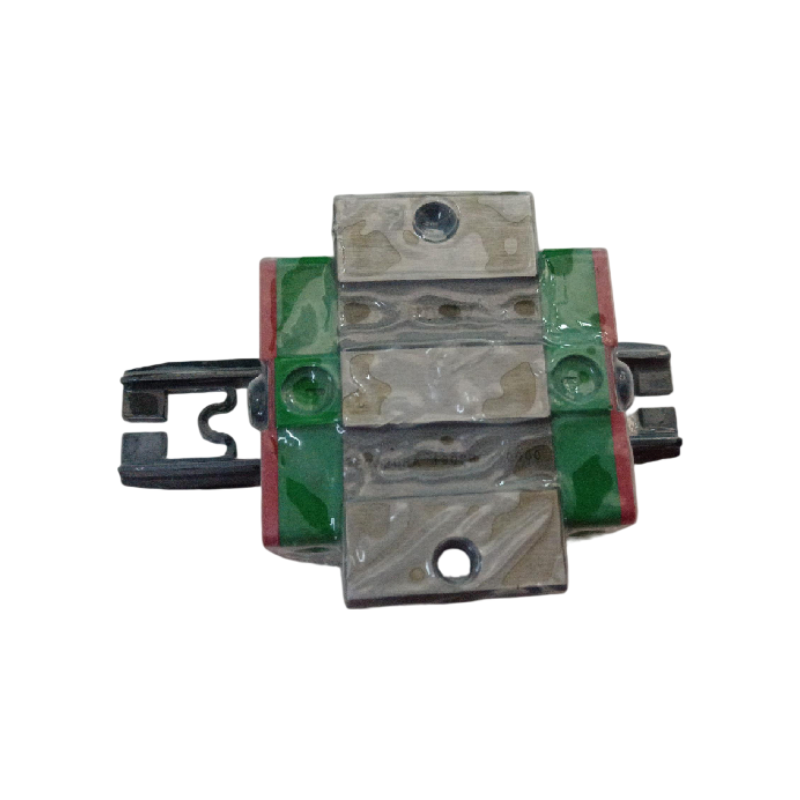

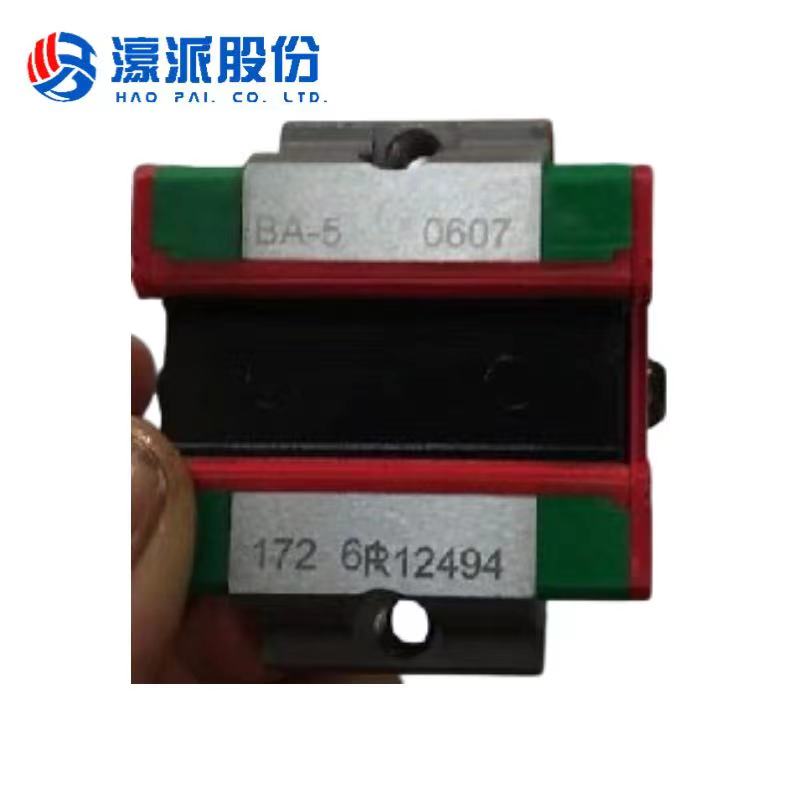

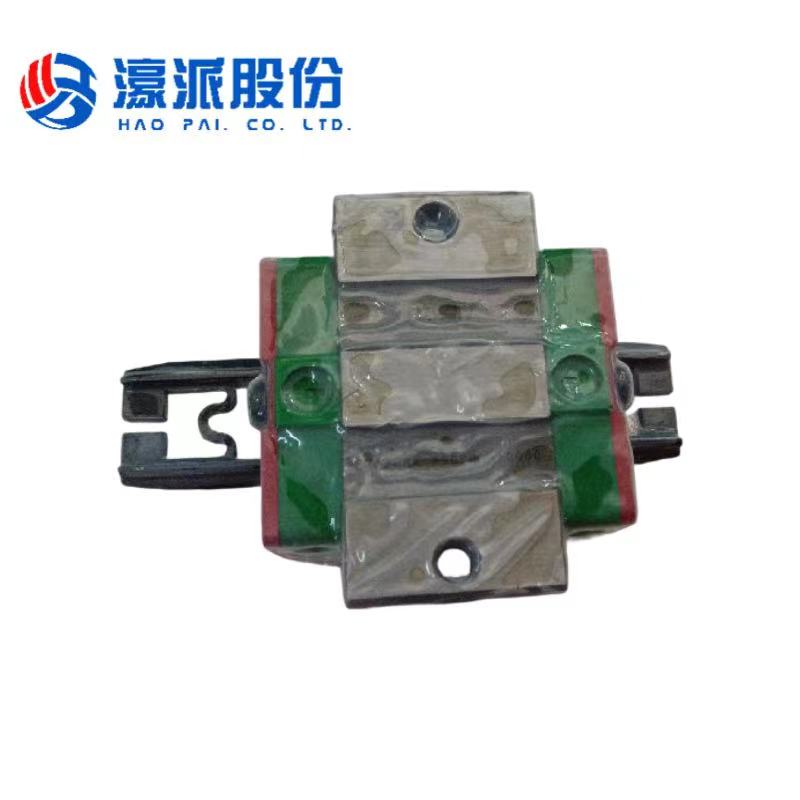

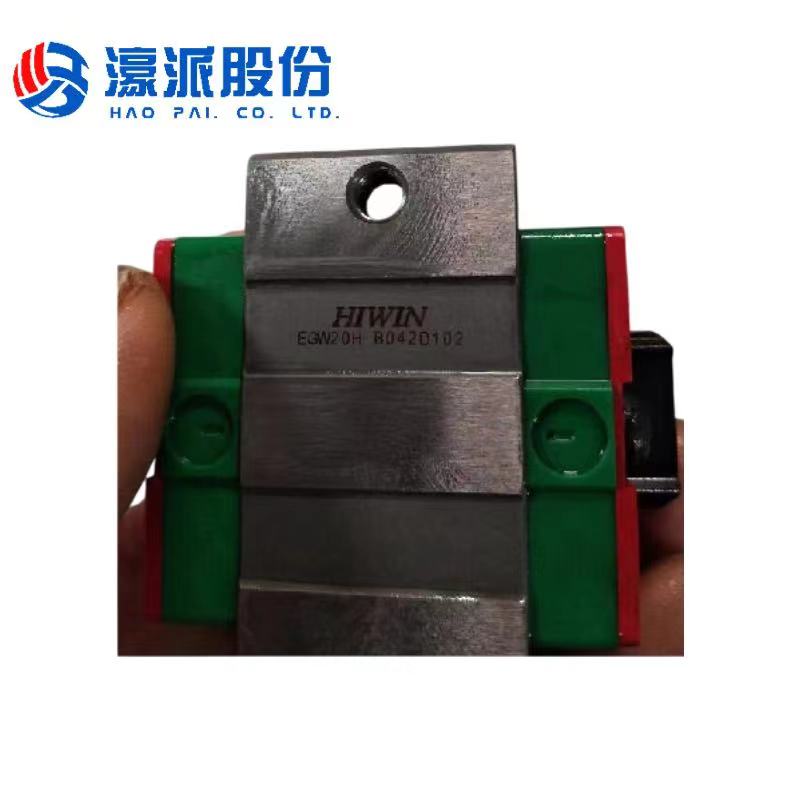

Shangyin/Hiwin Linear Guide Slider Silent Guideway Eg Series-EGW20H

1.In terms of precision performance

High positioning accuracy: Adopting rolling friction, the friction coefficient is as low as 1/50 of that of sliding guides. The difference between dynamic and static friction is minimal, eliminating slippage during bed operation. It can achieve micrometer-level positioning accuracy, meeting the positioning requirements of high-precision equipment.

High repeat positioning accuracy: The straightness error is controlled within ±0.005mm, and the repeat positioning accuracy reaches up to ±0.001mm. This ensures the equipment can accurately return to the set position during operation, guaranteeing consistency and accuracy in processing or operations.

Self-aligning function: The DF (45°-45°) combination from arc grooves allows for elastic deformation of steel balls and transfer of contact points during installation. Even if there is a certain deviation in the mounting surface, it can be absorbed internally by the linear guide slider, generating a self-aligning effect to achieve high-precision, stable, and smooth movement.

2.In terms of load capacity

High rigidity: Utilizing four-row arc grooves with 45° contact angles for the four rows of steel balls, forming an ideal two-point contact structure. It can withstand loads from vertical and horizontal directions. Preload can be applied when necessary to further enhance rigidity, effectively reducing slider deformation under load and ensuring motion accuracy.

High load-bearing capacity: The maximum static load can reach 10,000N, and the dynamic load can withstand 6,000N. It is suitable for heavy-load and high-speed motion scenarios, meeting the requirements of equipment such as CNC machine tools and automated production lines that need to bear large cutting forces, impact forces, and other loads during operation.

3.In terms of operational performance

Smooth motion with low noise: The patented return system and simplified structural design ensure smoother slider movement with lower noise during operation. This helps create a quiet working environment while reflecting excellent motion performance and stability, reducing potential issues caused by vibration and noise.

Suitable for high-speed motion: Due to the extremely low friction of linear guides during movement, only a small amount of power is required to operate the bed. This significantly reduces the power consumption of the machine, especially when the bed operates with frequent reciprocating movements. Additionally, the low friction-generated heat makes it suitable for high-speed operation, meeting the needs of modern industrial equipment for high-speed processing, rapid handling, and other operations.
