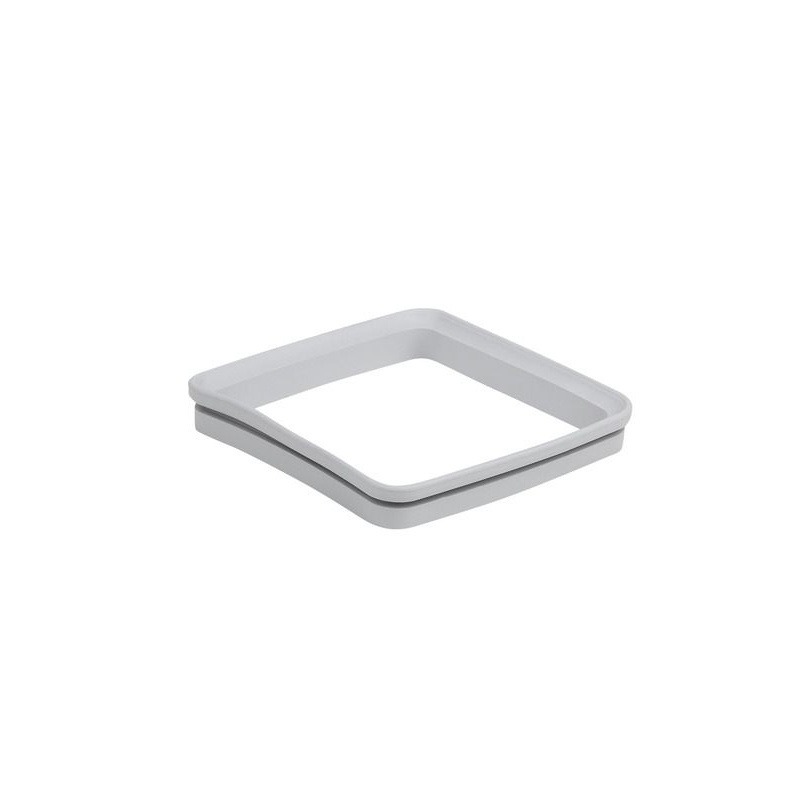

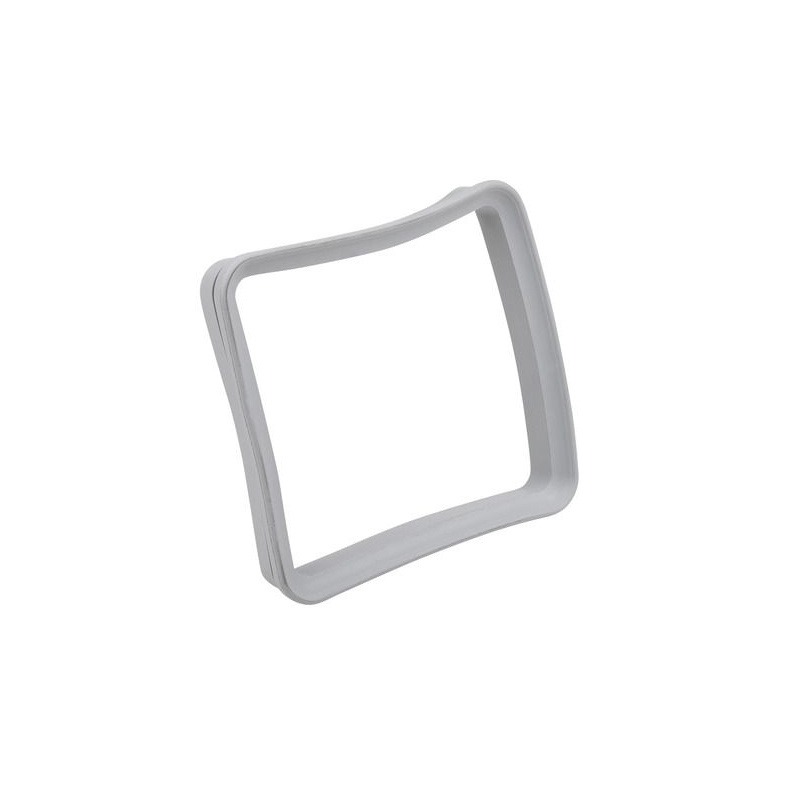

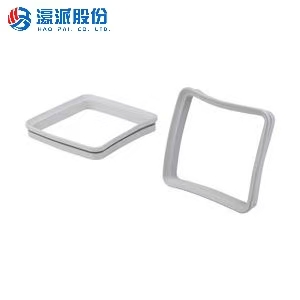

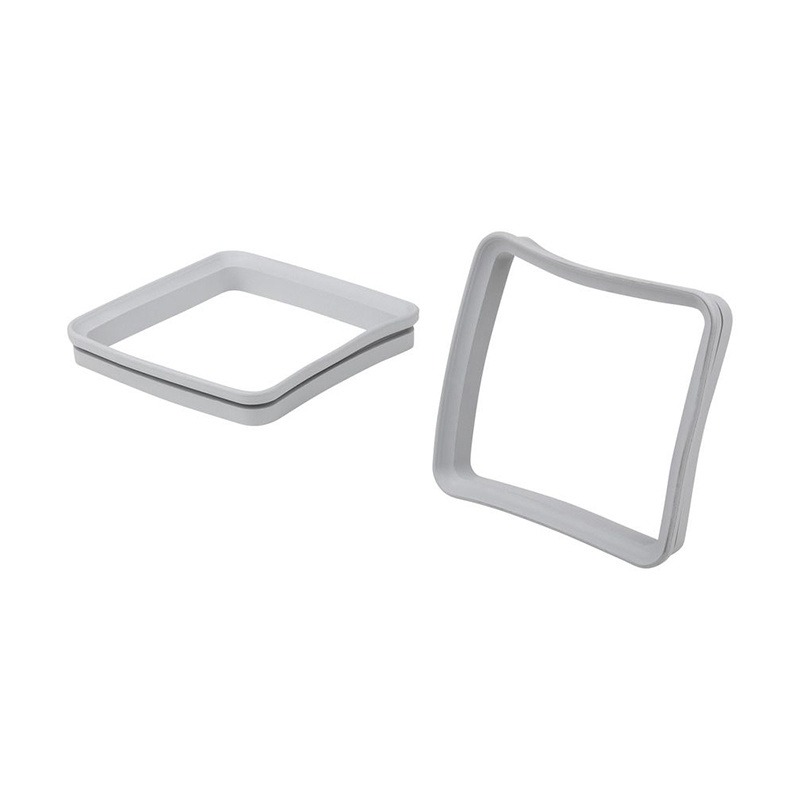

Sealing Frame Bottom Suction Plates-2

I. Product Advantages

1. 1.Excellent Sealing Performance
   Made from high-quality elastic material, it adapts to minor surface irregularities to form a tight seal, effectively preventing gas or liquid leakage and ensuring the gripping force of the vacuum suction cup.

2.


3. 2.High Wear Resistance & Long Service Life
   Possesses excellent abrasion, tear, and aging resistance. It maintains its performance and extends service life even under frequent cycling of gripping and releasing operations.

4.


5. 3.Broad Media Compatibility
   Offers good resistance to various media such as oils, water, and weak acids/alkalis, making it suitable for diverse and complex industrial environments.

6.


7. 4.Excellent Flexibility & Conformability
   The soft and elastic material allows it to easily conform to surfaces with different curvatures, ensuring quick and reliable sealing even on complex workpieces.

8.


9. 5.Easy Installation & Low Maintenance
   Designed for easy installation and replacement, it can be quickly fitted into the suction cup's sealing groove, significantly reducing equipment downtime for maintenance.

II. Product Features

1. 1.Material: Typically durable synthetic rubber like NBR (Nitrile Butadiene Rubber) or PU (Polyurethane).

2.


3. 2.Shape: Designed according to the model; common profiles include round, square, or special cross-sections.

4.


5. 3.Hardness: Specific Shore hardness to balance flexibility and wear resistance.

6.


7. 4.Color: Common colors include black, white, etc., depending on the material.

8.


9. 5.Temperature Range: Wide operating temperature range, e.g., -20°C to +80°C (material dependent).

10.


11. 6.Application: Specifically designed for vacuum suction cups, serving as a critical component in vacuum gripping systems.

1. 1.Industrial Robots and Automated Handling:

2.  Widely used on End-of-Arm Tooling (EOAT) for robots in automotive manufacturing, appliance production lines, and logistics sorting to reliably grip and handle workpieces of various materials like metal sheets, glass, plastic parts, and cartons.

3.


4. 2.Packaging and Printing Machinery:

5. Used in automated packaging machines and printers for precisely picking and positioning flexible or fragile materials such as plastic bags, paper, cartons, and labels.

6.


7. 3.Electronics and Semiconductor Manufacturing:

8. Employed for handling printed circuit boards (PCBs), semiconductor wafers, and precision components. Its compliant contact method effectively prevents surface damage to products.

9.


10. 4.CNC Machining and Sheet Metal Processing:

11.  Applied in automatic feeding systems for CNC machines and sheet metal bending machines for gripping and positioning metal or non-metal sheets.

12.


13. 5.Medical and Food Equipment:

14. Sealing strips made from compliant materials (like silicone) are used in industries with high hygiene standards, such as pharmaceutical packaging and food processing.

The suction cup sealing strip 10.01.15.00020 is a core sealing component for vacuum suction cups, manufactured from highly elastic and wear-resistant materials (e.g. NBR/PU) with exceptional sealing performance and durability. Its specialized cross-section design enables rapid adaptation to workpiece surface contours, effectively maintaining vacuum levels. Widely used in vacuum handling systems for automated material transfer, packaging machinery, and electronic assembly applications, it ensures stable and non-damaging material handling.
