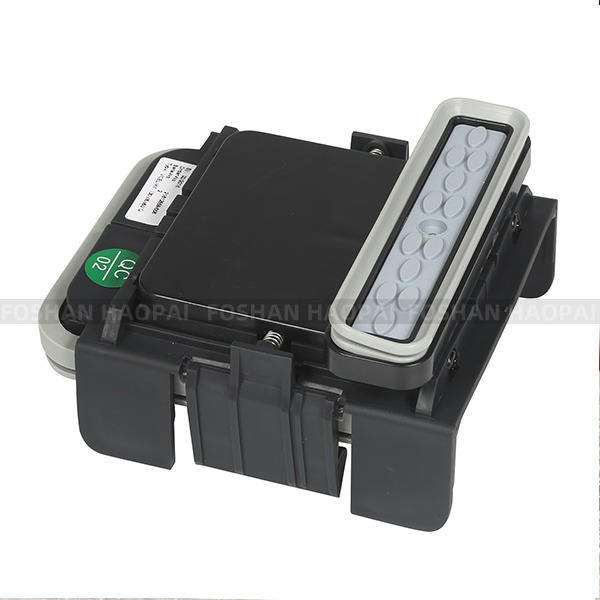

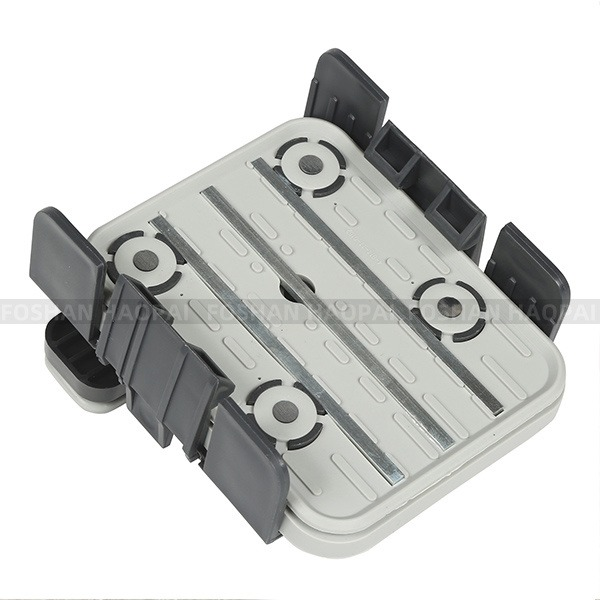

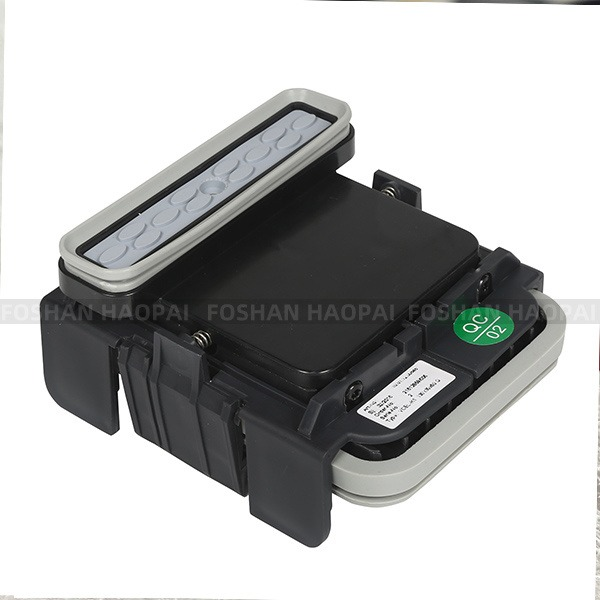

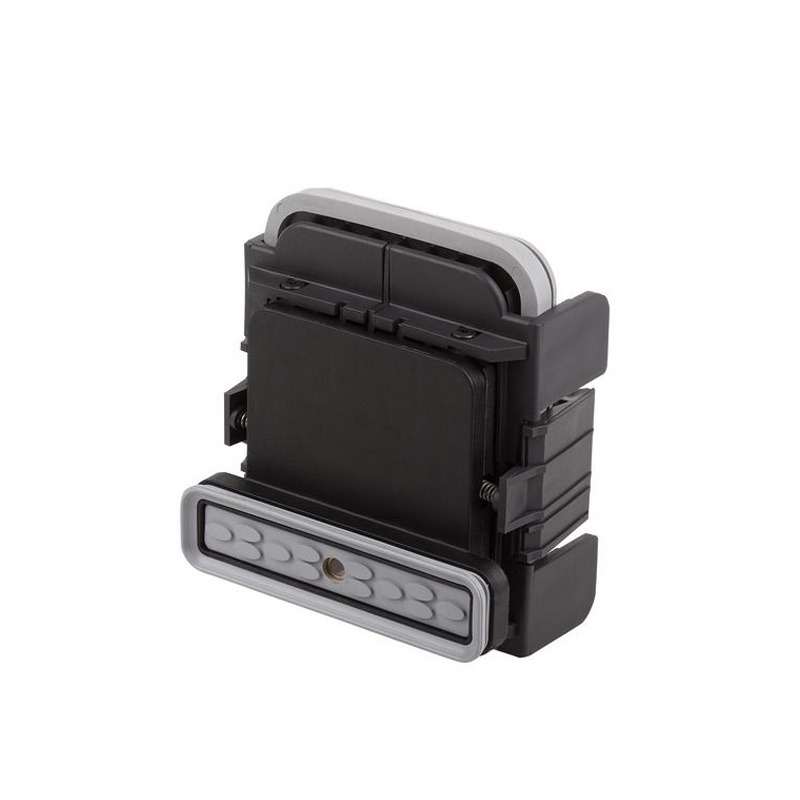

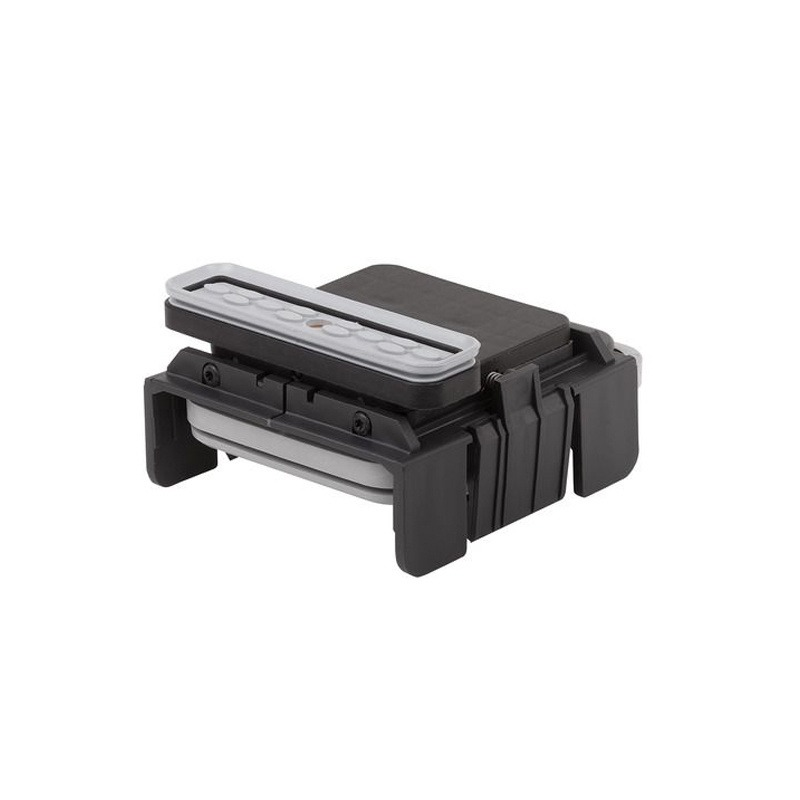

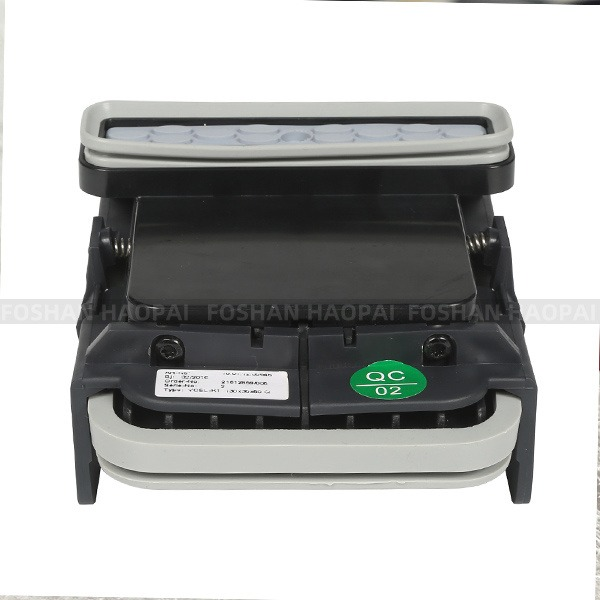

Vacuum Suction Cup Block for CNC Machines

1.Easy Installation & Flexibility:

1. The side port offers greater flexibility for hose routing, avoiding spatial conflicts that top ports might cause.

2. The quick-connect feature ("Q") makes cup replacement, maintenance, and system setup remarkably fast and easy.

2.High Handling Efficiency & Safety:

1. The M50 large port and potential Quick-connect (Q) design allow for very fast evacuation and venting times, reducing cycle times and significantly improving overall handling efficiency.

2. The large size distributes the gripping force over a wider area, greatly reducing the point pressure on the workpiece. This effectively prevents marks or damage on sensitive surfaces (e.g., polished metal, coated glass, acrylic).

3.Outstanding Durability:

   Such heavy-duty cups are typically made from high-performance Polyurethane (PU) or Nitrile Rubber (NBR), offering exceptional resistance to abrasion, oil, tearing, and aging, ensuring a long service life in harsh industrial environments.

4.Excellent Adaptability & Sealing:

1. The 30mm bellows stroke is its core advantage. It enables the cup to compensate for uneven, curved, or slightly warped surfaces by compressing and conforming to the shape, ensuring a reliable seal and preventing vacuum loss.

5.Superior Load Capacity:

 The 130mm large diameter provides a massive gripping surface. At standard vacuum levels (e.g., -0.6 bar), a single cup can generate hundreds of kilograms or even over a ton of theoretical lifting force, making it ideal for heavy sheet handling.

Handling thick steel plates in service centers, lifting raw glass sheets, moving heavy stone slabs, handling metal sheets in automotive manufacturing, processing large composite panels.
