Vacuum Suction Cup Block for Homag CNC

In terms of suction：

1.Strong suction force

By rapidly creating a vacuum, it forms a low-pressure zone inside, generating a strong suction force that can immediately attach to and secure the workpiece. For example, on a 1-square-meter vacuum suction cup, a pressure of approximately 10,000 kilograms can be achieved.

2.Stable suction

The internal design of vacuum suction cups uses multi-porous materials to ensure uniform vacuum distribution, enhancing the stability of adhesion. Even in situations with oil or dust, they can maintain stable suction performance.

3.Wide applicability

They can be applied to various materials, such as metals, glass, plastics, paper, and fabrics, and can also accommodate different thicknesses and shapes of workpieces. They are especially suitable for adhering to irregular or uneven surfaces.

In terms of performance

1.Flexible design

Customization is possible based on the shape and size of different workpieces, meeting a wide range of usage requirements.

2.Durability

Made from high-quality materials such as wear-resistant and heat-resistant rubber, they have a long lifespan. Some suction cups have undergone accelerated aging tests and can last over 500,000 cycles under standard conditions.

3.High safety

In the event of a power failure in the vacuum pump, the stored energy can maintain the load for several hours. As long as there is sufficient vacuum inside the suction cup, the load will not drop. Some suction cups also feature overload protection to prevent damage caused by excessive vacuum.

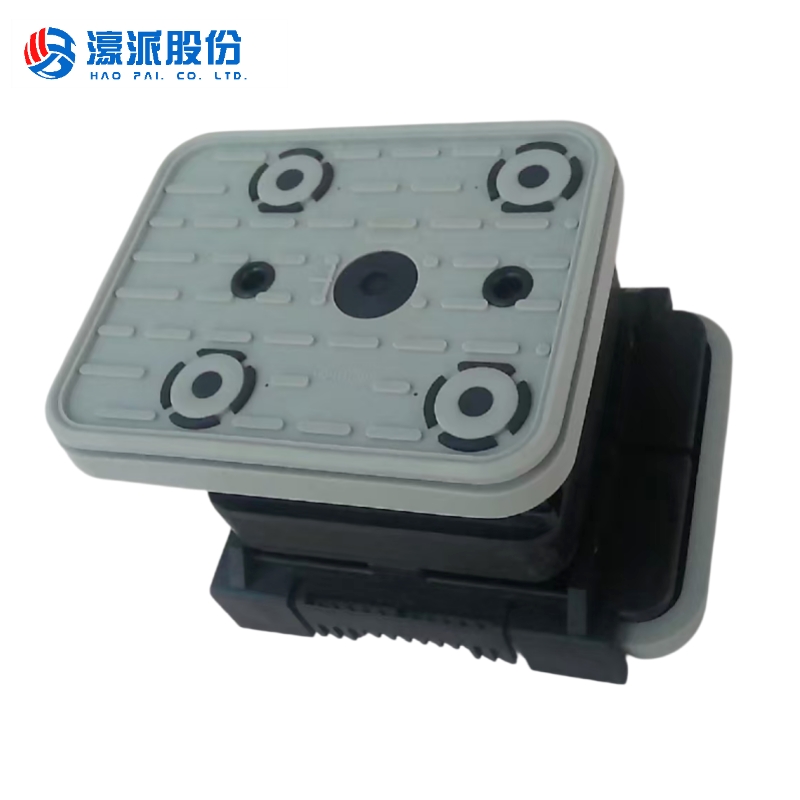

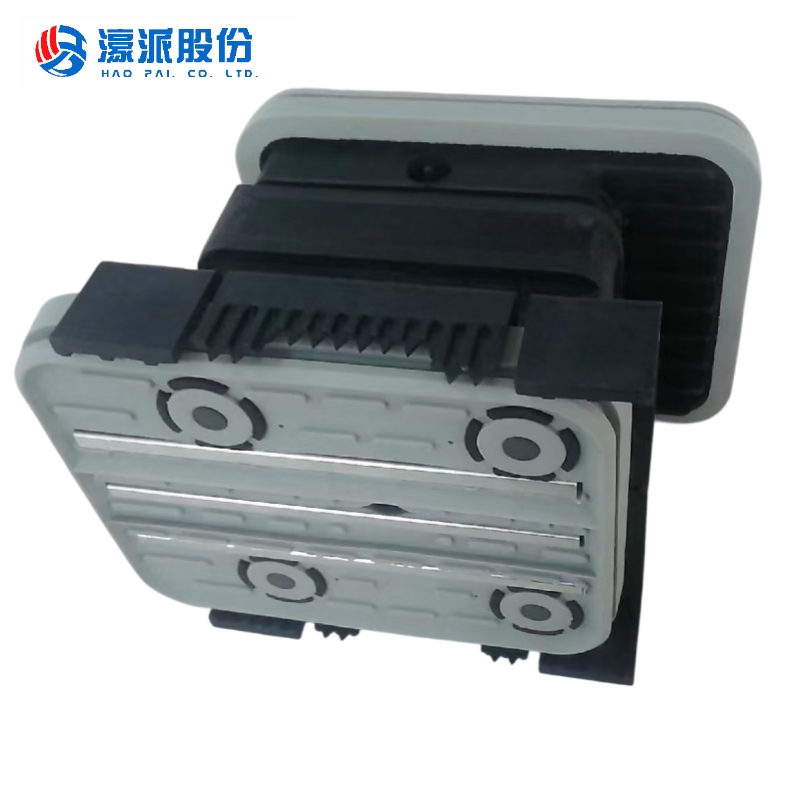

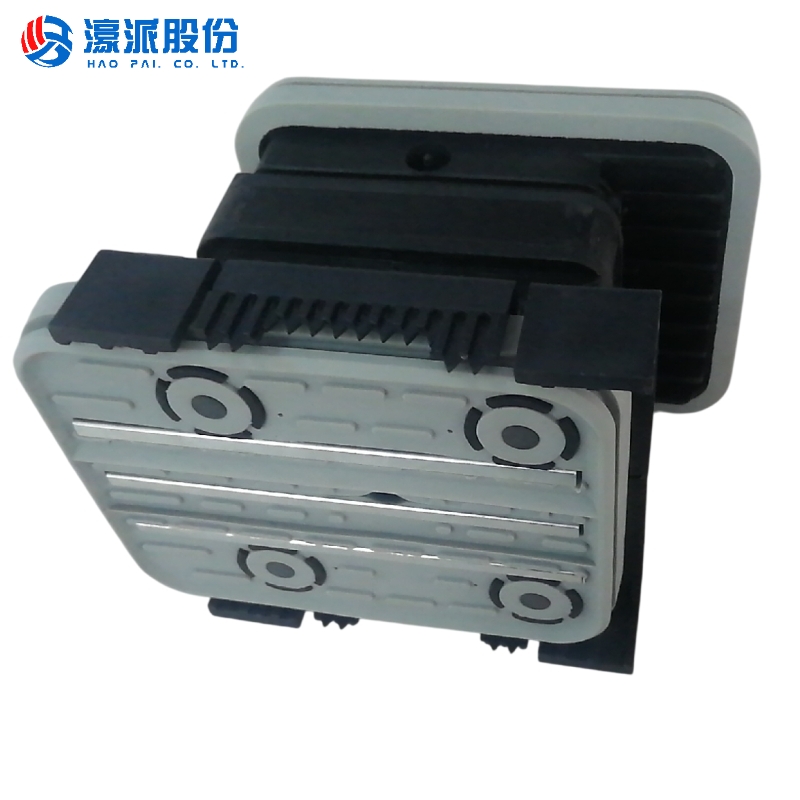

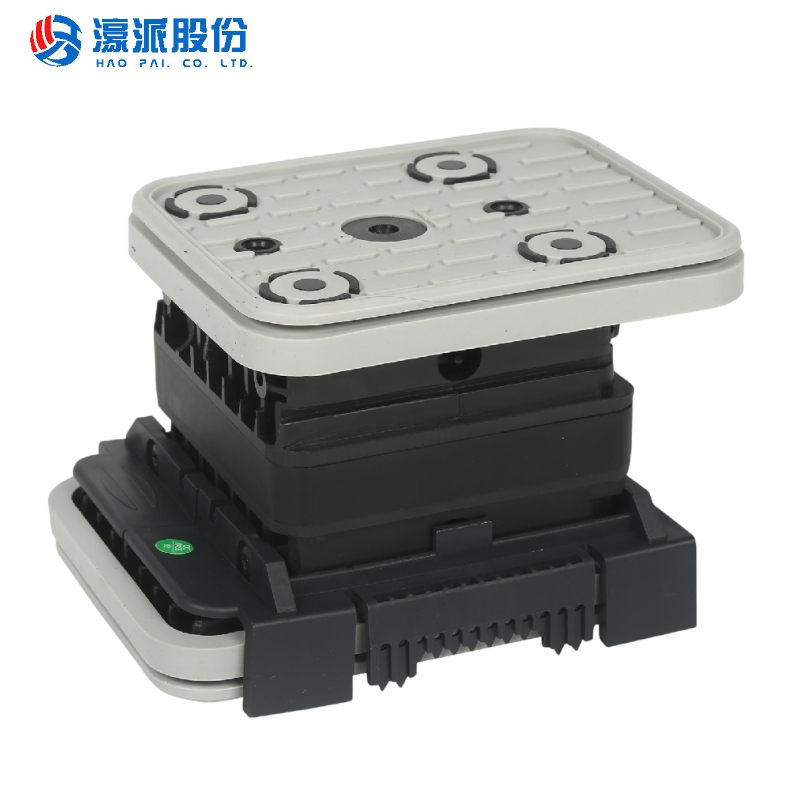

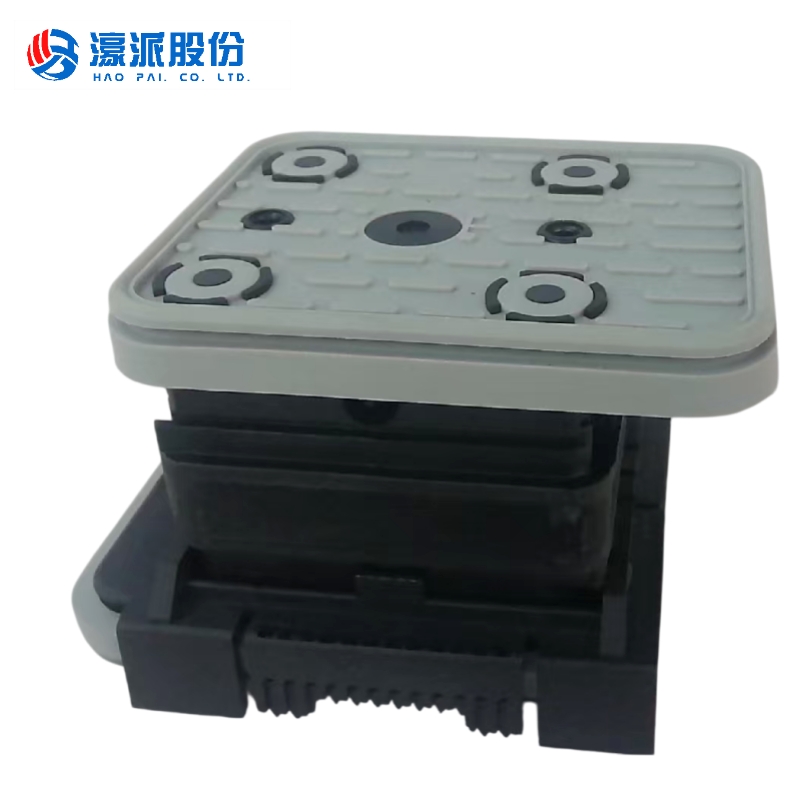

K2 10.01.12.00408 VCBL-K1 140x115x100 L Vacuum Suction Block for Schmalz 1-circuit Console CNC

This Schmalz 10.01.12.00769 vacuum pod is a height of 50mm 1-circuit consoles vacuum suction cup. VCBL-K1 120x50x50 L is the longways vacuum block for narrow parts clamping, used with Weeke/Homag/Holz-Her and other PTP CNC machine centre with pod and rail table.


10.01.12.00769 vacuum pod parameters:
VCBL-K1 140x115x100 L
Block vacuum for 1-circuit console Schmalz
Arrangement: lengthways

K2 10.01.12.00408 VCBL-K1 140x115x100 L Vacuum Suction Block for Schmalz 1-circuit Console CNC

This Schmalz 10.01.12.00769 vacuum pod is a height of 50mm 1-circuit consoles vacuum suction cup. VCBL-K1 120x50x50 L is the longways vacuum block for narrow parts clamping, used with Weeke/Homag/Holz-Her and other PTP CNC machine centre with pod and rail table.


10.01.12.00769 vacuum pod parameters:
VCBL-K1 140x115x100 L
Block vacuum for 1-circuit console Schmalz
Arrangement: lengthways

VCBL-K1 140x115x100 L 1-circuit beams from Schmalz (1 row of valves along the beam) vacuum suction cups work with Homag, Weeke, CMS, IMA, Masterwood, Felder, HolzHer, Reichenbacher, Busellato, Format 4, Anderson and many others console table. Woodworking pod and rail vacuum cup support for fixing workpieces to the console table for workpiece clamping.

Description:
* Hose-free vacuum clamping system for CNC machining centers with console table (2-circuit system)
* The vacuum blocks are pre-fixed to the consoles and secured against movement during setup
* Safe and precise clamping of the workpiece and the vacuum blocks on the console with the second vacuum
* The optional touch valve allows unneeded suction cups to be kept on the machine table
* Enables damage-free clamping with the highest precision and holding force

Characteristics:

* Highest holding forces in wood applications thanks to optimized seals and friction pads
* Highest dimensional accuracy for more precision in the production process
* Wide range of products offers maximum flexibility and enables short set-up times
* Suction plates can be replaced quickly, easily and economically without tools

Usage: Widely used on CNC machining center, PTP machine etc..

The 10.01.12.00769 vacuum cup comes with a complete entire set.
Also, the top rubber pads 10.01.12.00012 and bottom vacuum pads 10.01.12.00228 are available as replacements.

The 10.01.12.00770 VCBL-K1 120x50x50 Q vacuum blocks also are available here.
