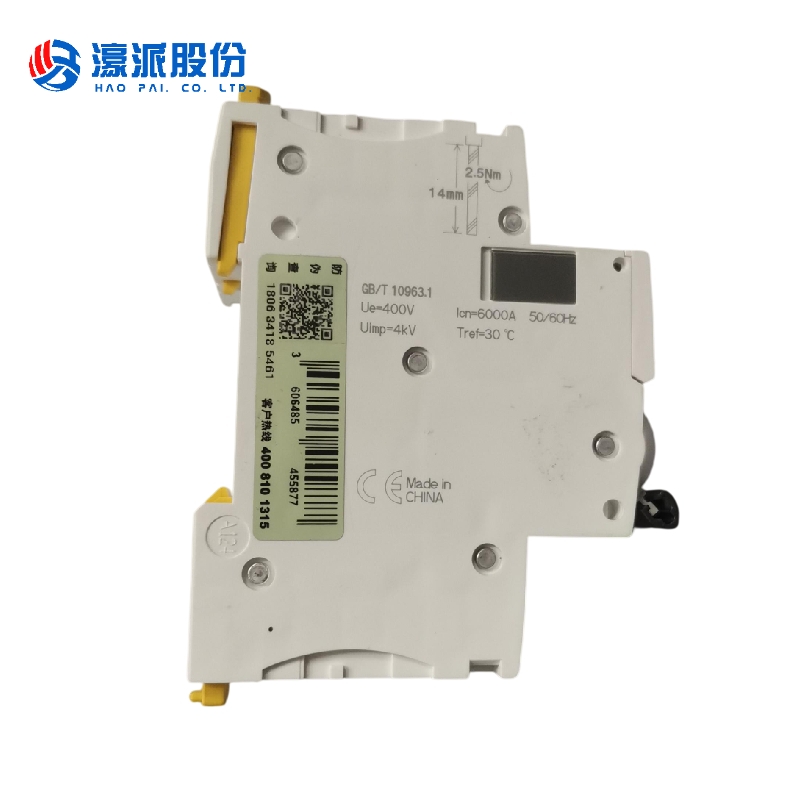

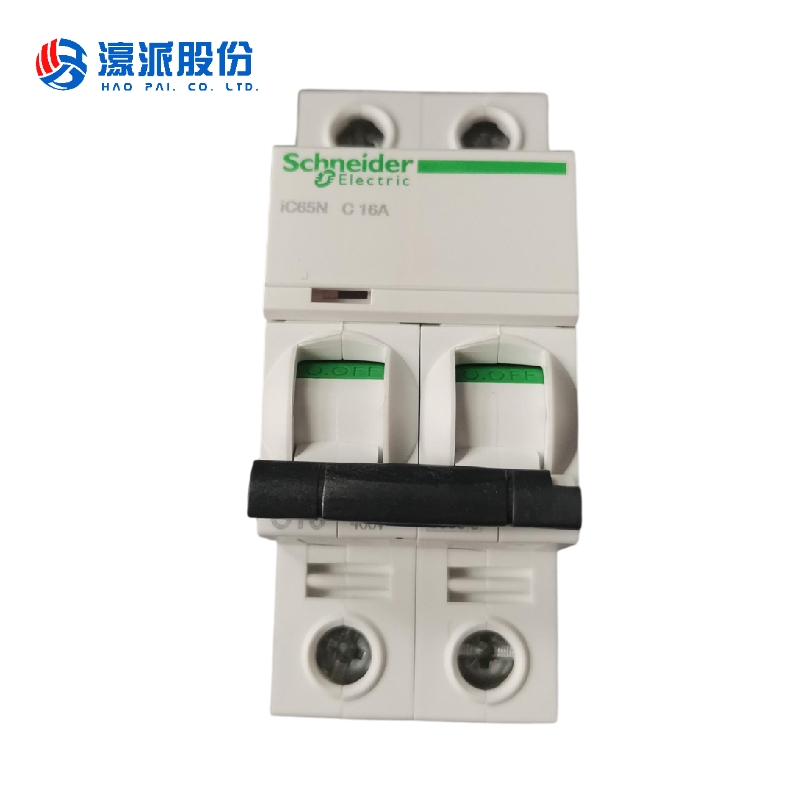

Cutting equipment Circuit Breakers --IC65N/2P/C 16A

1. Equipped with a VisiSafe green indicator strip, it can reliably indicate the position of contact disconnection; The impulse withstand voltage reaches 6kV and the pollution level is level 3, which can effectively improve the equipment life even under overvoltage conditions.

2. Excellent performance: Wide operating temperature range (-35 ° C to 70 ° C), good resistance to moisture and heat, suitable for various environments.

3. Strong functional expandability: It can assemble various electrical accessories (such as auxiliary contacts, alarm contacts, shunt release units, etc.) and mechanical accessories (such as rotating handles, padlock accessories, etc.), and can also assemble residual current action protection accessories (such as Vigi IC65 leakage protection accessories) to achieve A/AC residual current protection.

4. Easy installation: Tunnel type terminal blocks are used for easy wire entry and crimping. The terminal cross-sectional area is larger than the standard requirements, and the wiring capacity is large.

5. Application area for residential buildings: iC65N is mainly suitable for residential buildings. Architecture.

6. Industrial and other fields: iC65N/H is widely used in construction, industry, and other fields, while iC65L is mainly used in high demand applications such as industry, construction, and energy.

7. Downstream applications: power transmission and distribution panel factories, public utilities, buildings, airports, etc.

8. For home users: It is recommended to use a C-type curve, with current ranging from 20A to 40A depending on the total load. 3P/4P is suitable for three-phase household use.

9. Industrial users: If carrying motor loads, it is recommended to choose a D-type curve to avoid false tripping.

10. Leakage protection requirement: Vigi iC65 accessory can be selected to achieve leakage protection function.

11. With a breaking capacity of 6kA (AC), it meets the short-circuit protection requirements of general distribution systems

Environmental adaptability.

12. Operating temperature range -35 ° C~+70 ° C, stable operation under humid and hot conditions (relative humidity 95% @ 55 ° C).

13. Electrical performance: The rated current covers 1A~63A, and the number of poles can be selected as 1P/2P/3P/4P. The C/D/B curve is suitable for different loads.

14. Convenient installation with modular design, supporting DIN rail installation, large wiring capacity (25~35mm ²), visual safety green mechanical indicator to confirm contact disconnection status, strong isolation function and expandability, can be assembled with leakage accessories (such as Vigi iC65), auxiliary contacts, shunt release devices, etc., to achieve remote monitoring.

1. Applicable instructions: Home residences are used for lighting, sockets, kitchen circuits, etc,

2. The C-curve is suitable for household appliances and comes with a leakage protection model to prevent electric shock

3. Terminal distribution boxes for commercial buildings, office buildings, shopping malls, schools, and other places to ensure lighting and air quality
 Industrial sites are suitable for control cabinets, small motors, and end of line equipment in production lines. The D-type curve can withstand high surge currents

4. Terminal power distribution system for public facilities such as infrastructure airports, subways, hospitals, and data centers

5. The C65N-DC model is optional for DC systems, suitable for DC scenarios such as photovoltaic systems and electric vehicle charging stations

6. Selection suggestion (quick reference) Table full screen copy export usage scenario

7. Ordinary household C-type/2P/20~40A, with leakage protection three-phase entry/villa C-type/3P/40~63A

8. Small motor/Industrial load D-type/3P/20~63A

9. DC application C65N-DC/1P or 2P/10~40A
