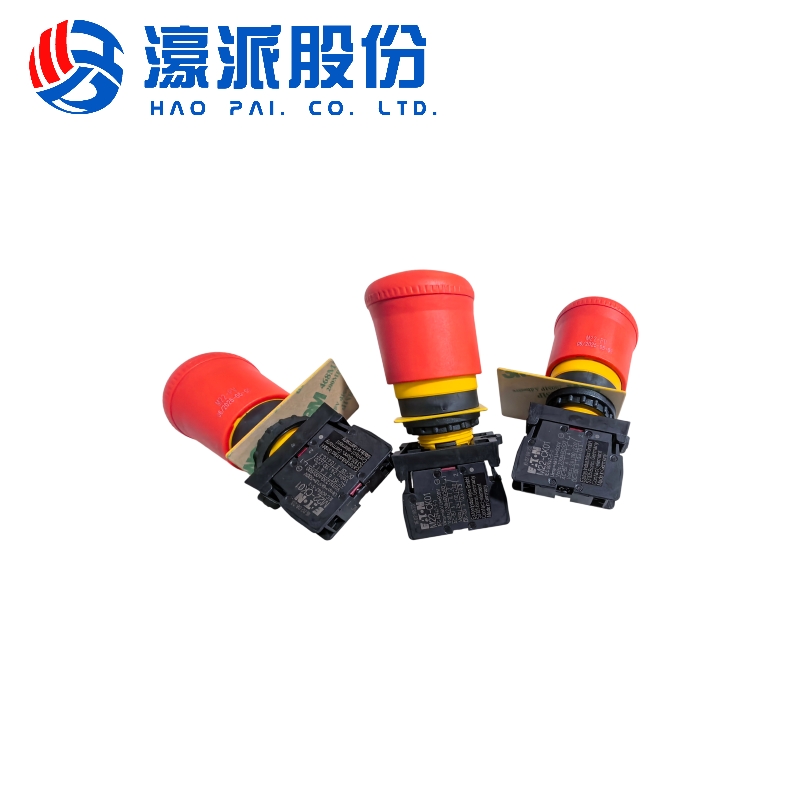

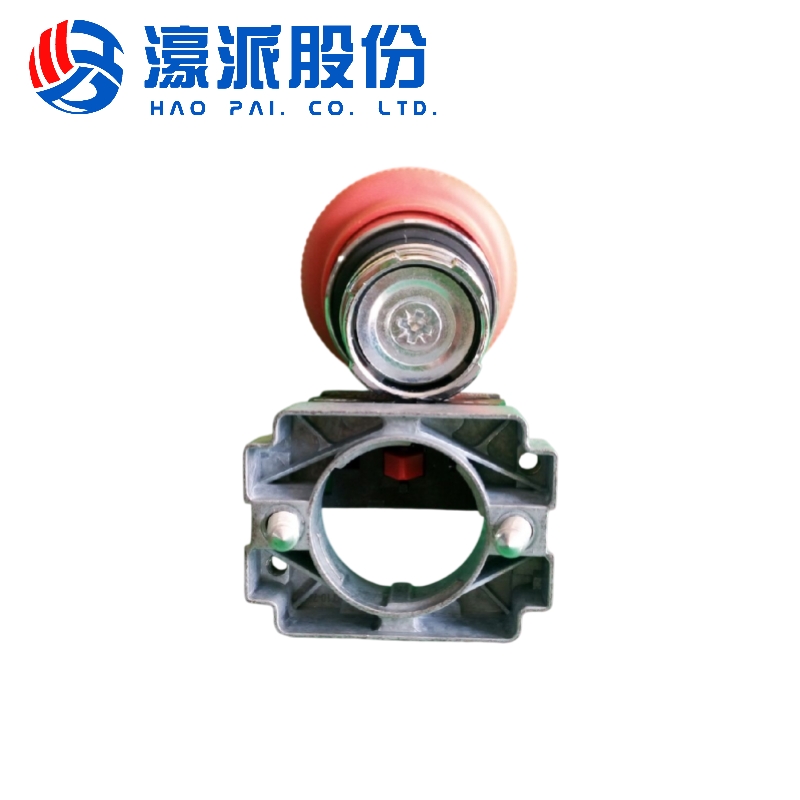

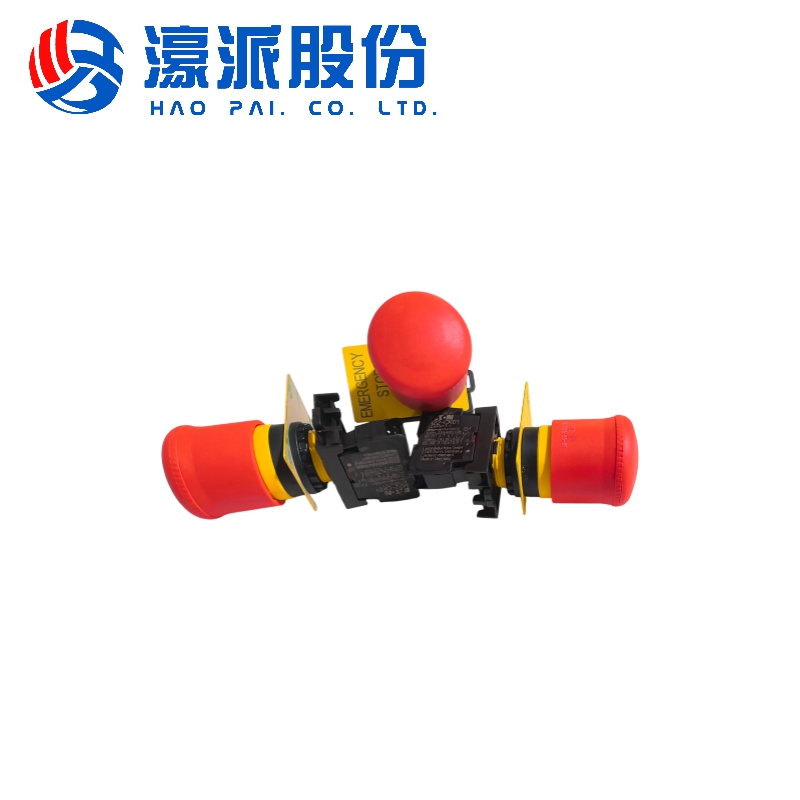

Emergency Stop Switches
- Brand ETN
- Product origin Made in USA
- Delivery time 3 days
- Supply capacity 1000 pcs month
- Model M22-PV+ M22-A+ M22-CK01+ M22-XZK-GB99
1.Rotary reset locking mechanism for secure restoration post-emergency operation
2.Normally Closed (NC) contact design: Maintains circuit continuity during normal operation, instantly interrupts power in emergencies for enhanced safety²⁴
3.IP65-rated enclosure with effective dust/water resistance, suitable for harsh industrial environments²
4.Extended 1-million-cycle lifespan (electrical & mechanical), reducing maintenance frequency/costs²
5.High-visibility red mushroom-head button for rapid identification and activation³⁴
6.Standard 22mm mounting hole & 40mm head diameter enabling quick installation³
7.Modular architecture supporting flexible customization for diverse applications¹
8.Robust metal-series construction with 18-month warranty ensuring reliability
Emergency Stop Switches Product Advantages and Features
1.M22-PV Emergency Stop Button Head
Function: Red mushroom-head button with rotary reset locking mechanism
Operation: Push-pull emergency cut-off (IEC 60947-5 compliant)
Protection: IP65-rated (dust/water resistant)
Head diameter: 38mm (standard panel cutout 22.5mm ±0.1mm)
Electrical lifespan: ≥1 million operations
2.M22-A Contact Module
Contact configuration: 3 Normally Closed (NC) contacts
Rated voltage: 24V AC/DC
Rated current: 10A (fuse capacity)
Impulse withstand: 6000V AC
3.M22-CK01 Auxiliary Contact Module
Function: Extends emergency circuit signal monitoring
Compatibility: Fits RMQ Titan series mounting systems
Mechanical lifespan: ≥1 million plugging cycles
Emergency Stop Switches Product Technical Parameters
Module | Key Parameters | Safety Requirements |
M22-CK01 | Contact Rating: AC-15 10A/400V | SIL 3/PLe Level Certification |
M22-PV | Voltage Range: 24VDC-240VAC | IP67 Protection (Dust/Waterproof) |
M22-XZK-GB99 | Operating Temp.: -25°C to +80°C | Permanent Etching Markings |
Emergency Stop Switches Product Application Scope
1. Heavy Machinery Control
Electrical Compatibility
Restricted to ≤24V AC/DC control circuits only; direct connection to main power (>30V AC) is prohibited
Maximum breaking capacity: 10A@24VDC (resistive load)
2. Smart Production Line Safety
Installation Specifications
Panel cutout diameter must be strictly controlled at 22.5±0.1mm to ensure IP rating integrity
Identification label (M22-XZK-GB99) must face the operator's visible angle
3. System Interlock Requirements
M22-CK01 auxiliary contacts shall be connected in series with main contact module (M22-A) to achieve EN ISO 13849-1 PLd safety monitoring level
Emergency Stop Switches Product Description

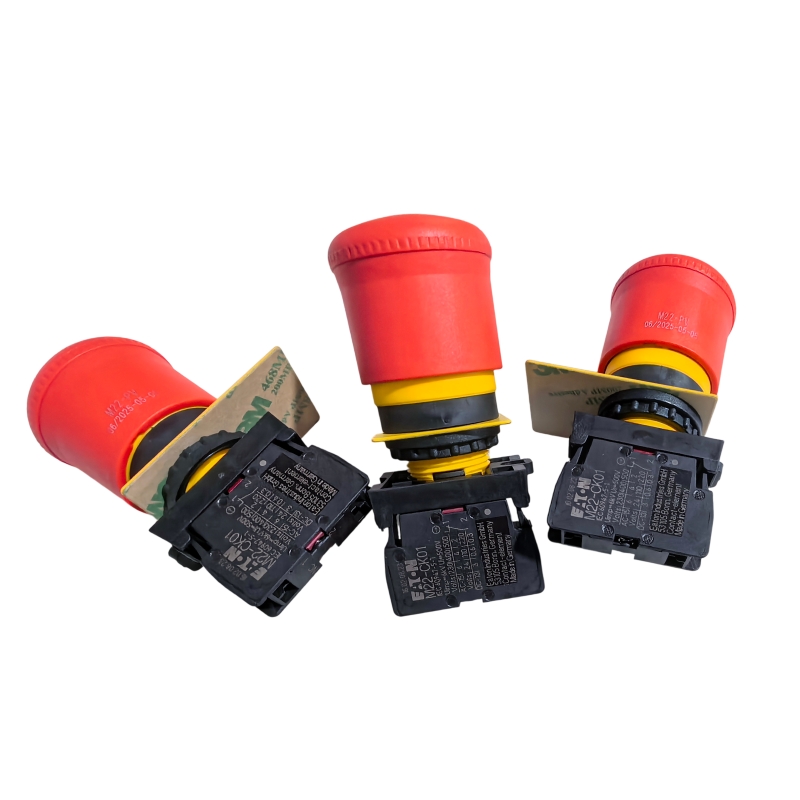

1.Emergency Stop Pushbutton Head: M22-PV (38mm mushroom head, red twist-to-release design)
2.Main Contact Module: M22-A (1NO+1NC contacts, screw terminals)
3.Auxiliary Monitoring Contacts: M22-CK01 (2NC contacts for safety circuit feedback)
4.Safety Identifier Plate: M22-XZK-GB99 (with "Emergency Stop" warning text)
