Vacuum Suction Blocks for Ptp CNC
- Haopai
- Guangdong, China
- 5-10days
- 140X115X50
Customization: Available
After-sales Service: Online Support, Video Technical Support
Logo Printing: with Logo Printing
Basic Info.
Model NO.
10.01.12.00626
Customized
Customized
Type
Woodworking Machine Suction Cup
Material
Vacuum Block of Plastic and Rubber Console
Certification
CE
Color
Grey
Condition
New
Transport Package
Carton
Specification
140x115x50mm
Trademark
haopai
Origin
Guangdong, China
HS Code
8466920000
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
• VCBL-K2 140 x 115 x 50
• Vacuum Blocks VCBL-K2
• 2 circuit console clamping blocks
• Schmalz 10.01.12.00626 vacuum cups
• Dimensions (L x W): 140 x 115 mm
• CNC vacuum pods for Anderson CNC
• Replacement pods for Giben PTP-3013
• Vacuum pods for Masterwood CNC

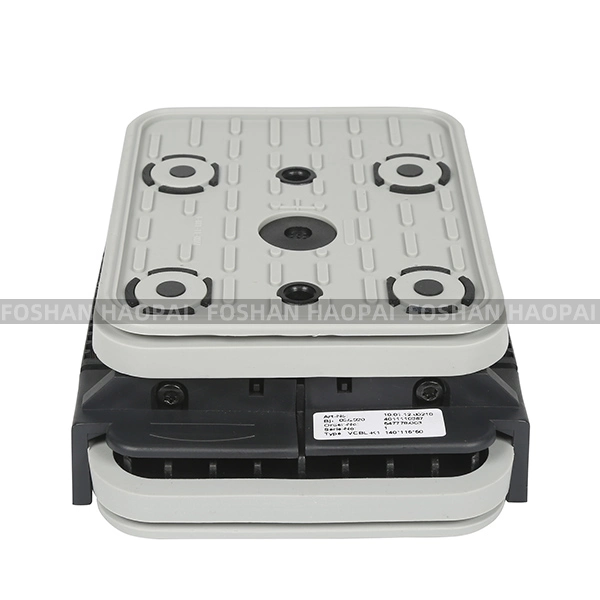

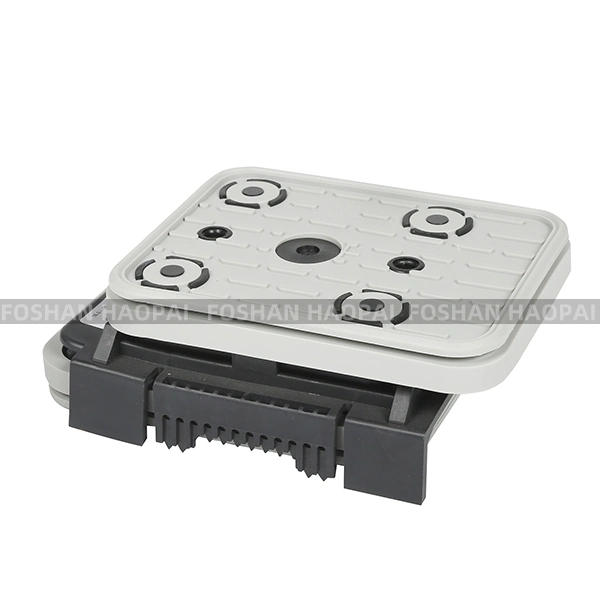

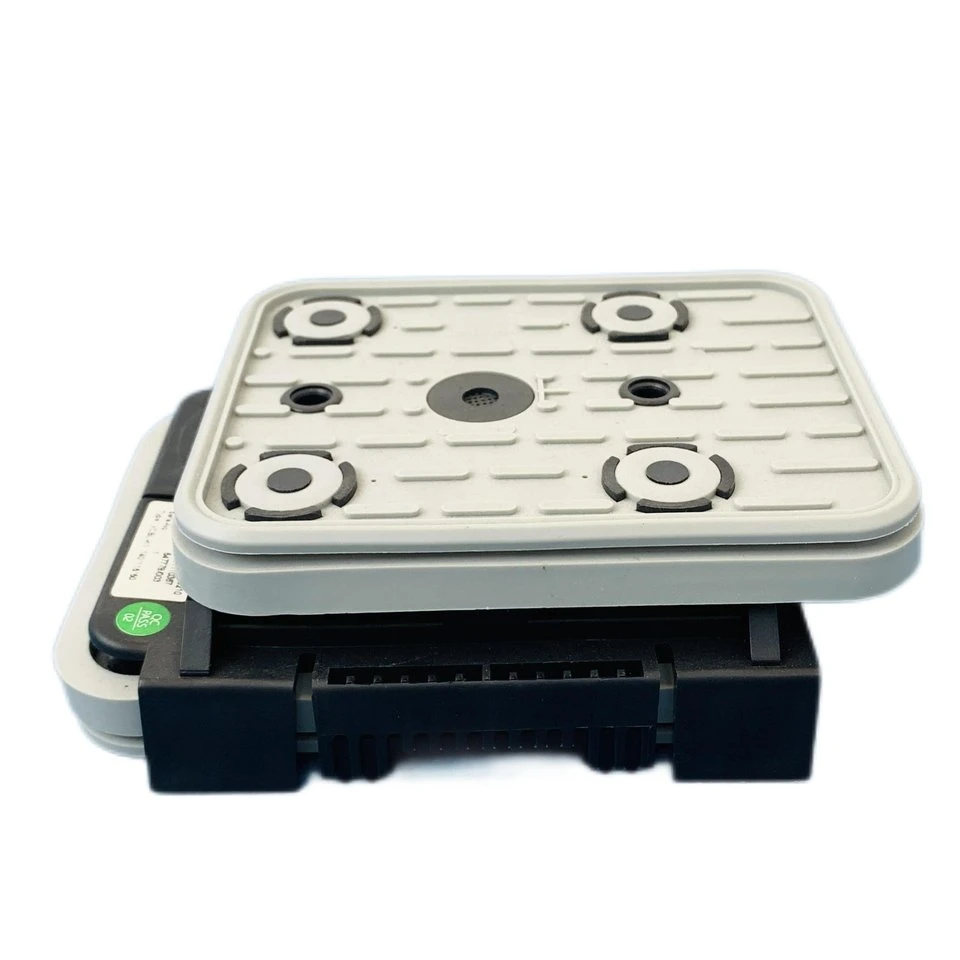

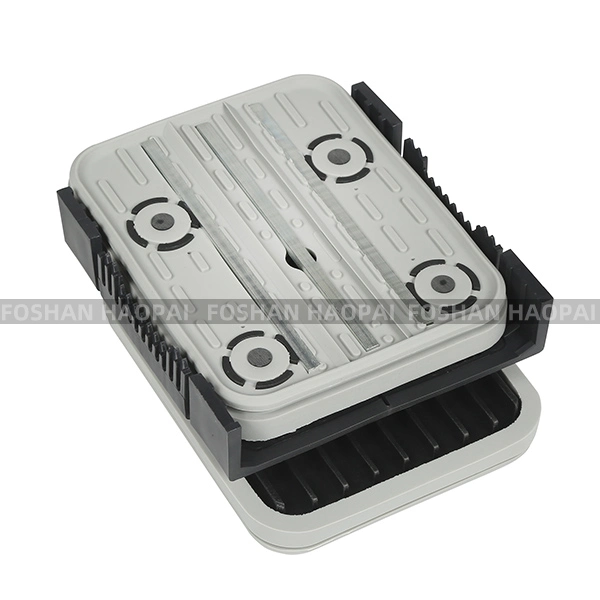

VCBL-K2 140x115x50 Vacuum Suction Blocks 10.01.12.00626 for Masterwood Anderson Giben CNC
This CNC pod is 50mm high 2-circuit consoles vacuum block, Schmalz article No. 10.01.12.00626, used with woodworking CNC machining centers with pod and rail table, especially PTP CNC machining centers with 2-circuit console table, such as Anderson, Giben, Homag, Weeke, Ima, Masterwood, Felder, Holz-Her, Reichenbacher, Busellato, Morbidelli and other brand equipped with a VCBL dual circuit console table (VCBL-K2) from Schmalz.
10.01.12.00626 CNC machine pods dimension:
Dimensions (LxW): 140 x 115 mm
Height H: 50 mm
Color: gray
The K2 pods can be used on rails with 2-circuit consoles with has 2 rows of vacuum outlets. It can hold the workpiece in place and prevent it from moving during the machining.
Suction cup VCBL-K2 140x115 H=50mm is the standard vacuum pods in CNC Anderson, Giben PTP, Masterwood, etcSchmalz part number: 10.01.12.00626
Masterwood OEM number: VN00009
The 10.01.12.00626 CNC vacuum pod is a complete set of suction cups.
The top vacuum plates 4-011-11-0077, 10.01.12.00488 and bottom rubber covers 10.01.12.00798 are available for purchase separately.
